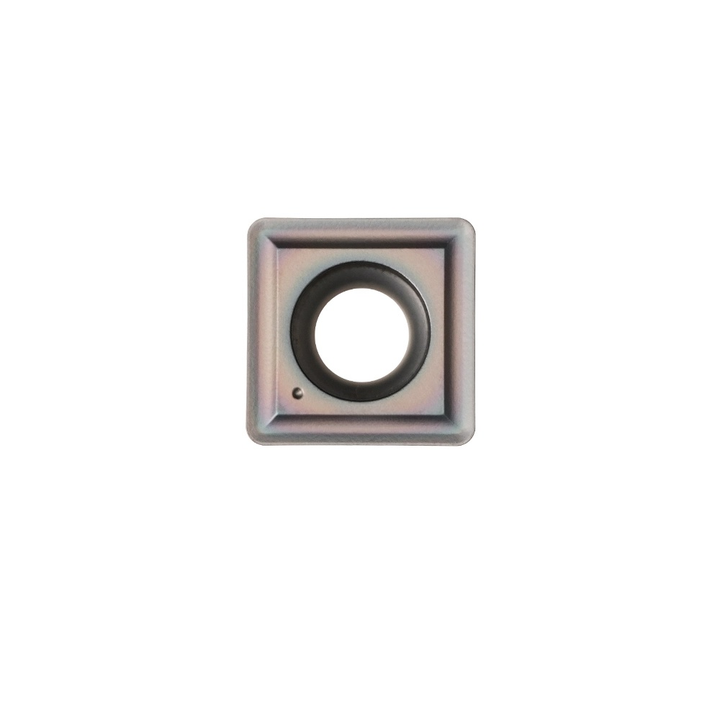

OYYU SPMG U Drill Inserts SPMG050204–SPMG140512 for Alloy & Steel Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
OYYU SPMG U Drill Inserts for CNC Machining | HRC45-55
Brand: OYYU
Insert Type: SPMG Series (SPMG050204, SPMG060204, SPMG07T308, SPMG090408, SPMG110408, SPMG140512)
Hardness Range: HRC45-55
Application: U Drill Inserts for CNC drilling of high-temperature alloys, titanium alloys, stainless steel, quenched steel, and low-carbon steel.
▶ Product Overview
The OYYU SPMG U Drill Inserts are designed for high-efficiency CNC drilling. With sharp edges and optimized chip control, these carbide inserts ensure stable cutting performance and long tool life under challenging conditions.
▶ Features & Advantages
- High-quality carbide substrate for excellent wear resistance and heat stability.
- Sharp cutting edge for smooth surface finish and reduced cutting force.
- Optimized chipbreaker design for stable chip evacuation during deep-hole drilling.
- Suitable for precision and semi-finish machining of steel, stainless steel, titanium, and nickel alloys.
- Applicable on CNC lathes, machining centers, and U drill holders.
▶ Recommended Materials
- High-temperature alloys
- Titanium alloys
- Stainless steel
- Quenched steel
- Low-carbon steel
▶ Available Models
| Model | Type | Application |
|---|---|---|
| SPMG050204 | U Drill Insert | Precision drilling in alloy steel |
| SPMG060204 | U Drill Insert | General drilling for stainless steel |
| SPMG07T308 | U Drill Insert | Machining titanium alloys |
| SPMG090408 | U Drill Insert | High-temp alloy drilling |
| SPMG110408 | U Drill Insert | Hardened steel semi-finishing |
| SPMG140512 | U Drill Insert | Heavy-duty cutting applications |
▶ Technical Specifications
Each insert in the OYYU SPMG Series features precision-ground geometry and a durable coating, ensuring extended tool life even under demanding cutting parameters.
▶ Why Choose OYYU?
OYYU is a trusted brand in CNC tooling, offering reliable carbide inserts for turning, milling, and drilling applications. All products are made with strict quality standards for professional machining performance.
▶ Keywords
SPMG U drill insert, OYYU carbide insert, CNC drilling insert, SPMG050204, SPMG07T308, titanium alloy cutting, stainless steel drilling, high temperature alloy machining, precision carbide insert.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
