OYYU TNMG160408-CM OY2430 Turning Insert for Titanium and Stainless Steel
Price shown is a starting point. Contact us for a precise quote based on your requirements.

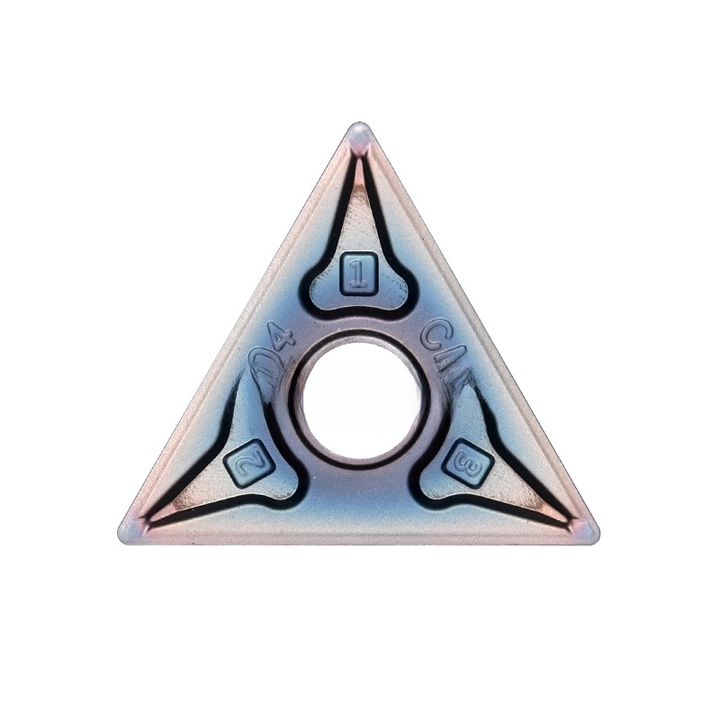

OYYU TNMG160408-CM OY2430 Carbide Turning Insert
Brand: OYYU
Model: TNMG160408-CM
Grade: OY2430
Hardness: HRC45–55
Application: High temperature alloys, titanium alloys, stainless steel, hardened steel
Chipbreaker: CM – ideal for semi-finishing and finishing operations
Product Overview
The OYYU TNMG160408-CM OY2430 carbide turning insert delivers excellent heat resistance, wear resistance, and cutting stability. Designed for machining difficult materials such as titanium and high-temperature alloys, the OY2430 grade provides long tool life and a smooth surface finish under both dry and wet cutting conditions.
Key Features
- Durable carbide substrate with advanced PVD coating
- CM chipbreaker ensures smooth chip evacuation and reduced cutting vibration
- Optimized for semi-finishing and finishing applications
- Stable cutting edge for high-speed precision machining
- Extended tool life even in high heat environments
Recommended Work Materials
- Stainless steel (SUS304, SUS316)
- Titanium and titanium alloys
- High-temperature alloys such as Inconel, Hastelloy, and Waspaloy
- Hardened and alloy steels (up to HRC55)
Technical Specifications
| Insert Type | TNMG160408-CM |
| Grade | OY2430 |
| Cutting Edge | Double-sided, 6 edges |
| Chipbreaker | CM – Semi-finishing / Finishing |
| Coating | PVD-coated carbide |
| Hardness | HRC45–55 |
| Machining Type | External turning / General CNC turning |
Applications
This insert is suitable for industries such as aerospace, medical, and precision machinery manufacturing where titanium alloys and stainless steel components are commonly used. It maintains edge sharpness and performance stability in continuous or interrupted cuts.
Advantages of OYYU OY2430 Inserts
- Excellent cutting stability and dimensional accuracy
- Reduced tool wear and optimized surface quality
- High-performance insert for difficult-to-machine materials
- Designed for consistent performance in CNC turning centers
Related Keywords (for SEO)
OYYU TNMG160408-CM insert, OY2430 turning insert, carbide insert for titanium, stainless steel turning insert, CNC carbide insert for high temp alloy, CM chipbreaker insert, HRC55 carbide tool, precision turning insert, PVD-coated carbide turning insert, TNMG insert for stainless steel.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
