BEYOND R1 (2mm) Aluminum Corner Rounding End Mill – Arc Type Chamfer Cutter
The BEYOND R1 (2mm) Aluminum Corner Rounding End Mill is designed for high-speed precision machining of aluminum and non-ferrous metals. With a polished flute and optimized cutting edge geometry, it ensures excellent chip evacuation and mirror-like surface finish. Perfect for arc chamfering, contouring, and decorative edge milling.
Features
- ⚙️ Precision R1 radius design for smooth and accurate corner rounding.
- 💎 High-quality carbide material for longer tool life and excellent wear resistance.
- 🚀 Mirror-polished flutes ensure efficient chip removal and reduce cutting resistance.
- 🧊 Specialized for aluminum, copper, and non-ferrous materials.
- 🎯 Perfect for CNC engraving, chamfering, and contour machining.
Specifications

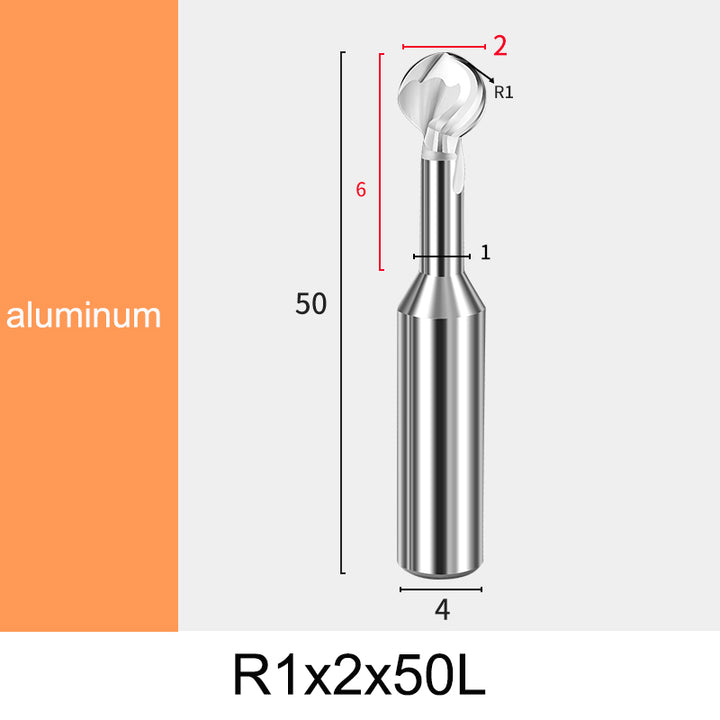

| Blade Diameter (D1) | Relief Length | Shank Diameter (D) | Total Length (L) | Relief Diameter | Radius (R) | Flutes |
|---|---|---|---|---|---|---|
| 2mm | 6mm | 4mm | 50mm | 1mm | R1 | 2 |
Applications
- Aluminum alloy chamfering and rounding.
- Deburring and edge smoothing for precision parts.
- 3C product shells, mold cavities, and decorative contour milling.
Recommended Cutting Parameters
- Cutting speed: 200–800 m/min
- Feed per tooth: 0.02–0.08 mm/tooth
- Coolant: Air or mist coolant recommended
Why Choose BEYOND Tools
BEYOND specializes in producing high-performance CNC cutting tools with strict quality control and advanced grinding technology. Each tool delivers high precision, excellent surface finish, and long service life for professional machining environments.
Available Sizes
R1, R1.5, R2, R2.5, R3, R4, R5, R6, R8
