BEYOND R1 (2mm) Steel Arc Chamfer Cutter
Precision Double-End Radius End Mill for Steel Chamfering and Deburring
The BEYOND R1 (2mm) Steel Arc Chamfer Cutter is designed for high-precision edge finishing, chamfering, and deburring in steel, stainless steel, and hardened alloys. With an R1 radius arc geometry and double-end carbide construction, it ensures stable cutting performance and extended tool life in continuous CNC operations.
Key Features:
- R1 small-radius design for fine chamfering and accurate edge control
- Double-end construction doubles the tool life and reduces replacement cost
- Micro-grain tungsten carbide for superior wear resistance and hardness
- High-performance coating improves heat resistance and reduces tool wear
- Ideal for deburring, edge rounding, and precision finishing of steel parts

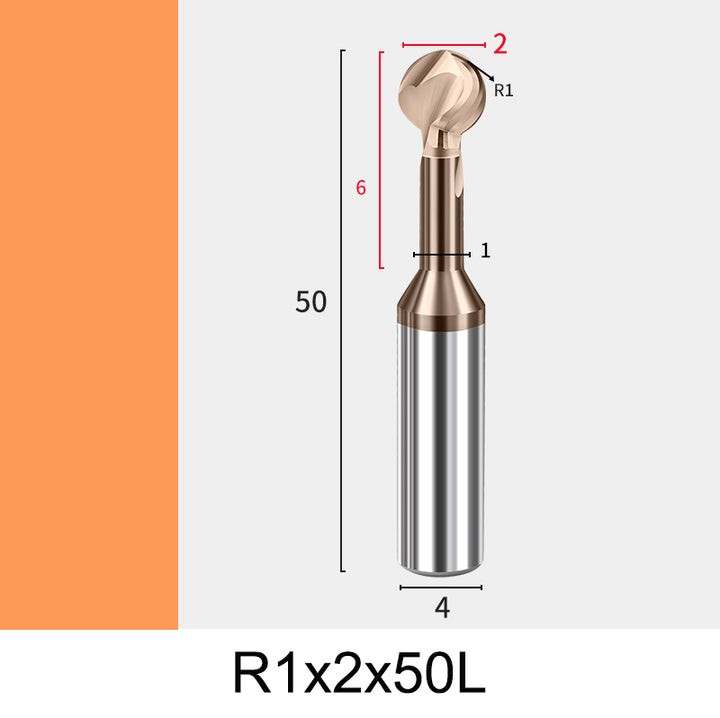

Technical Specifications:
| Item | Specification |
|---|---|
| Brand | BEYOND |
| Model | R1 (2mm) Steel Arc Chamfer Cutter |
| Cutting Diameter (D1) | 2mm |
| Relief Length | 6mm |
| Shank Diameter (D) | 4mm |
| Total Length (L) | 50mm |
| Relief Diameter | 1mm |
| Radius (R) | R1 |
| Flutes | 2 |
| Material | Micro-Grain Tungsten Carbide |
| Coating | TiAlN (High-Temperature Resistant) |
| Application | Chamfering / Deburring / Edge Finishing |
Applications:
The BEYOND R1 Chamfer Cutter is ideal for edge finishing of steel components, dies, and molds. It delivers clean chamfer surfaces and prevents burr formation during CNC machining.
Recommended Use:
- Workpiece Material: Carbon Steel, Alloy Steel, Stainless Steel
- Machine Type: CNC Milling Machine / Machining Center
- Cooling: Oil or Air Cooling Recommended
Advantages of BEYOND R1 Chamfer Cutter:
- Stable performance at high feed rates
- Long tool life under continuous cutting
- Excellent surface finish for industrial-grade precision
- Reduced cutting resistance and burr-free machining
Why Choose BEYOND:
BEYOND delivers high-performance CNC cutting tools built for durability and precision. Our chamfer cutters are trusted by machining professionals worldwide for consistent quality and long-lasting accuracy.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
