R2 (4mm) Aluminum Corner Rounding carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND R2 (4mm) Aluminum Corner Rounding End Mill – Arc Type Chamfer Cutter
The BEYOND R2 (4mm) Aluminum Corner Rounding End Mill is specifically designed for precise edge rounding and smooth chamfering on aluminum and non-ferrous materials. Its optimized R2 radius and mirror-polished flutes provide superior cutting performance, excellent surface finish, and extended durability in high-speed CNC machining applications.
Features
- ⚙️ R2 radius design for accurate corner rounding and stable machining performance.
- 💎 Ultra-fine carbide material ensures rigidity and long wear life.
- 🚀 Mirror-polished flutes minimize chip adhesion and enhance evacuation.
- 🧊 Optimized for aluminum, copper, and non-ferrous materials.
- 🎯 Ideal for CNC chamfering, deburring, and 3D contour finishing.

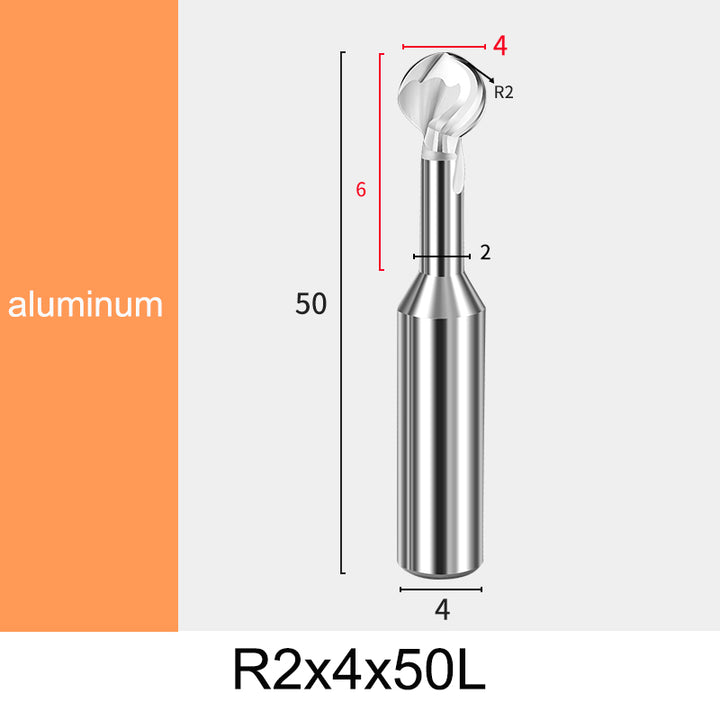

Specifications
| Blade Diameter (D1) | Relief Length | Shank Diameter (D) | Total Length (L) | Relief Diameter | Radius (R) | Flutes |
|---|---|---|---|---|---|---|
| 4mm | 6mm | 4mm | 50mm | 2mm | R2 | 2 |
Applications
- Chamfering and rounding aluminum alloy edges.
- Deburring CNC machined parts and components.
- Precision surface finishing for molds and 3C product housings.
Recommended Cutting Parameters
- Cutting speed: 250–900 m/min
- Feed per tooth: 0.02–0.10 mm/tooth
- Coolant: Air or mist coolant recommended
Why Choose BEYOND Tools
BEYOND is committed to producing high-quality CNC cutting tools that meet industrial precision demands. Every end mill is crafted with advanced grinding and inspection technology, ensuring superior accuracy, cutting efficiency, and consistency across batches.
Available Sizes
R1, R1.5, R2, R2.5, R3, R4, R5, R6, R8
Keywords
R2 Corner Rounding End Mill, Aluminum Chamfer Cutter, BEYOND CNC Tool, Arc Type End Mill, Carbide Chamfer Milling Tool, Aluminum Edge Rounding Cutter, CNC Chamfer End Mill
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
