R2.5 (5mm) Aluminum Corner Rounding carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND R2.5 (5mm) Aluminum Corner Rounding End Mill – Arc Type Chamfer Cutter
The BEYOND R2.5 (5mm) Aluminum Corner Rounding End Mill is designed for high-precision edge rounding, deburring, and chamfering in aluminum and non-ferrous materials. Its R2.5 arc design ensures consistent performance, smooth chip flow, and excellent surface quality for CNC machining applications.
Features
- ⚙️ R2.5 arc design provides smooth corner rounding and reduces vibration during machining.
- 💎 High-quality micro-grain carbide ensures rigidity, sharp cutting edges, and long tool life.
- 🚀 Mirror-polished flutes improve chip evacuation and reduce built-up edge formation.
- 🧊 Specially optimized for aluminum, copper, and non-ferrous metals.
- 🎯 Perfect for deburring, chamfering, and contour machining in CNC operations.
Specifications

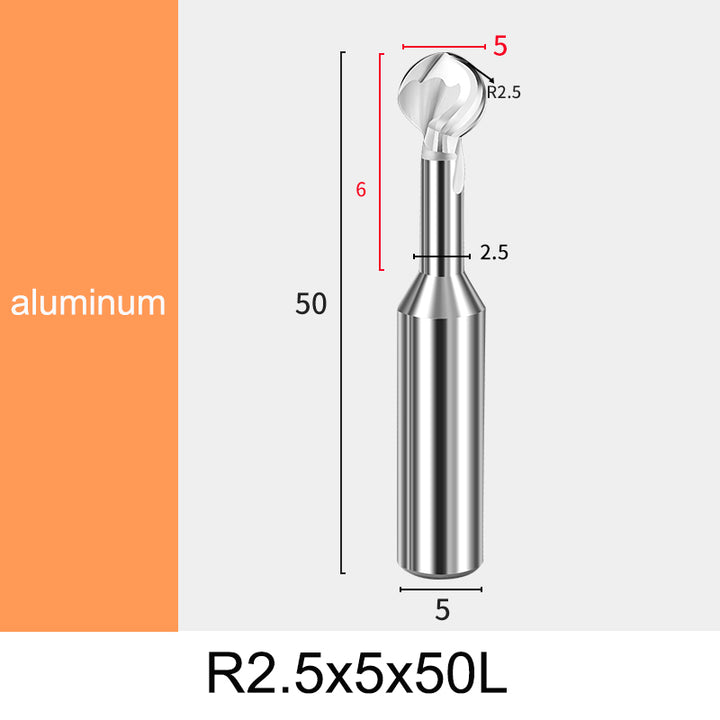

| Blade Diameter (D1) | Relief Length | Shank Diameter (D) | Total Length (L) | Relief Diameter | Radius (R) | Flutes |
|---|---|---|---|---|---|---|
| 5mm | 6mm | 5mm | 50mm | 2.5mm | R2.5 | 2 |
Applications
- Chamfering and rounding aluminum alloy edges.
- Deburring machined parts for automotive, aerospace, and mold industries.
- Precision contour machining for aluminum profiles and 3C housings.
Recommended Cutting Parameters
- Cutting speed: 250–900 m/min
- Feed per tooth: 0.02–0.10 mm/tooth
- Coolant: Air or mist coolant recommended
Why Choose BEYOND Tools
BEYOND delivers reliable and high-precision cutting tools for CNC machining. Each end mill is produced using advanced grinding technology and strict quality inspection to ensure consistency, durability, and superior machining results.
Available Sizes
R1, R1.5, R2, R2.5, R3, R4, R5, R6, R8
Keywords
R2.5 Corner Rounding End Mill, Aluminum Chamfer Cutter, BEYOND CNC Tool, Arc Type End Mill, Carbide Chamfer Milling Cutter, Aluminum Edge Rounding Tool, CNC Chamfer End Mill
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
