R4 (8mm) Aluminum Arc Chamfer Cutter
$34.97 USD
30-Day Free Returns
Free Worldwide Shipping
Order in the next [totalHours] hours %M minutes to get it between and
Description
BEYOND R4 (8mm) Aluminum Arc Chamfer Cutter
Professional Double-End Radius End Mill for Aluminum CNC Machining
The BEYOND R4 (8mm) Aluminum Arc Chamfer Cutter is designed to deliver excellent performance for edge rounding, deburring, and chamfering operations on aluminum and non-ferrous materials. Its double-end structure and precision R4 arc radius ensure high efficiency and smooth surface finishing in CNC milling processes.
Key Features:
- R4 arc radius provides clean, consistent chamfers and rounded edges
- Constructed from ultra-fine carbide for exceptional wear resistance
- Double-end design extends tool life and reduces machining costs
- Optimized geometry for aluminum, brass, copper, and plastics
- High-speed performance with excellent chip evacuation

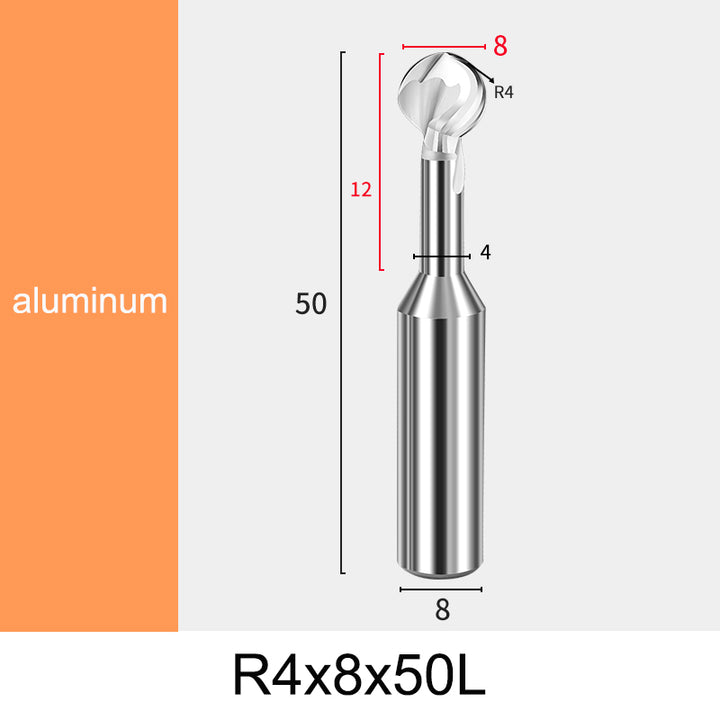

Technical Specifications:
| Item | Specification |
|---|---|
| Brand | BEYOND |
| Model | R4 (8mm) Arc Chamfer Cutter |
| Cutting Diameter (D1) | 8mm |
| Relief Length | 12mm |
| Shank Diameter (D) | 8mm |
| Total Length (L) | 60mm |
| Relief Depth | 4mm |
| Radius (R) | R4 |
| Flutes | 2 |
| Material | Tungsten Carbide |
| Coating | Uncoated (for aluminum) |
Applications:
This chamfer cutter is perfect for CNC machining of aluminum alloys, brass, and copper components. Ideal for creating smooth arc chamfers, deburring, and edge shaping in high-speed machining environments.
Recommended Use:
- Workpiece material: Aluminum, Brass, Copper, Plastic
- Machining type: Arc chamfering, Edge rounding, Deburring
- Machine: CNC milling machine, engraving machine
- Coolant: Air or mist cooling recommended
Why Choose BEYOND:
BEYOND delivers precision-engineered cutting tools trusted by CNC professionals worldwide. Our chamfer cutters are built for accuracy, longevity, and superior performance in aluminum milling operations.
R4 (8mm) Aluminum Arc Chamfer Cutter
$34.97
