BEYOND R8 (16mm) Aluminum Arc Chamfer Cutter
Heavy-Duty Double-End Radius End Mill for Aluminum CNC Chamfering and Edge Rounding
The BEYOND R8 (16mm) Aluminum Arc Chamfer Cutter is designed for heavy-duty CNC machining of aluminum and non-ferrous materials. With its R8 large arc radius, this tool provides smooth, rounded transitions on edges and surfaces, delivering superior chamfering performance for aluminum mold, fixture, and profile finishing.
Key Features:
- R8 large radius for wide, smooth edge rounding and chamfer transitions
- Double-end carbide design doubles tool life and ensures consistent cutting performance
- High-grade tungsten carbide provides excellent wear and impact resistance
- Optimized cutting geometry for aluminum, brass, copper, and plastic machining
- Mirror-polished flute for efficient chip evacuation and reduced friction

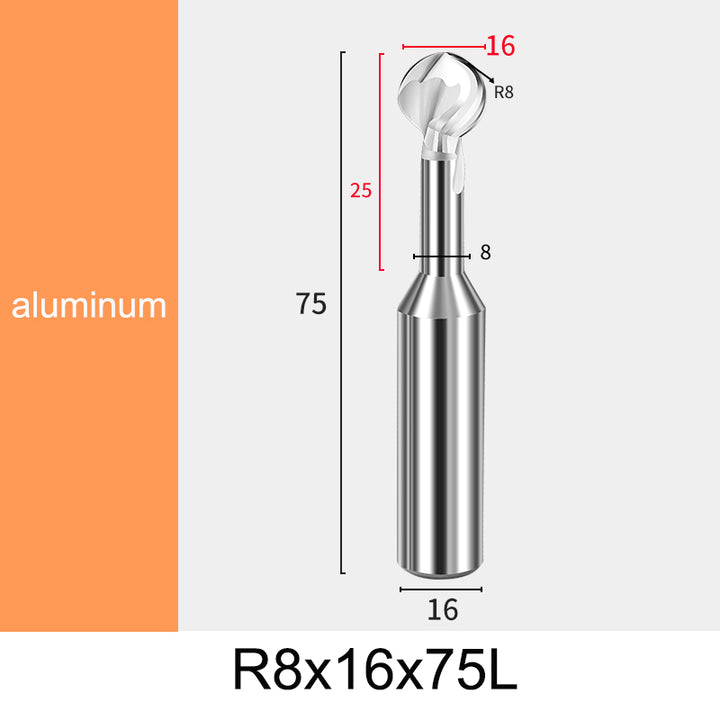

Technical Specifications:
| Item | Specification |
|---|---|
| Brand | BEYOND |
| Model | R8 (16mm) Arc Chamfer Cutter |
| Cutting Diameter (D1) | 16mm |
| Radius (R) | R8 |
| Shank Diameter (D) | 16mm |
| Total Length (L) | 90mm |
| Relief Depth | 8mm |
| Flutes | 2 |
| Material | Tungsten Carbide |
| Coating | Uncoated (Mirror Finish for Aluminum) |
| Machining Type | Arc Chamfering / Edge Rounding / Deburring |
Applications:
The BEYOND R8 chamfer cutter is ideal for large-radius edge rounding and surface chamfering in CNC aluminum machining. Commonly used in aerospace, automotive, and mold manufacturing industries where precision and surface finish are critical.
Recommended Use:
- Workpiece Material: Aluminum, Brass, Copper, Plastic
- Machine Type: CNC Milling Machine, Machining Center
- Use Case: Arc Chamfering, Edge Finishing, Deburring
- Coolant: Air or Mist Cooling Recommended
Advantages of BEYOND R8 Cutter:
- Wide radius design for large-area edge transitions
- Low cutting resistance for smooth aluminum processing
- High precision and excellent balance for high-speed machining
- Durable dual-end construction for longer service life
Why Choose BEYOND:
BEYOND is a trusted manufacturer of precision CNC cutting tools, offering reliable solutions for professional aluminum machining. Each chamfer cutter is crafted with strict quality control to ensure consistency, precision, and extended tool life under demanding conditions.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
