ZCC.CT RDKW1204MO YBG202 Round Carbide Milling Inserts - Made in China
Price shown is a starting point. Contact us for a precise quote based on your requirements.

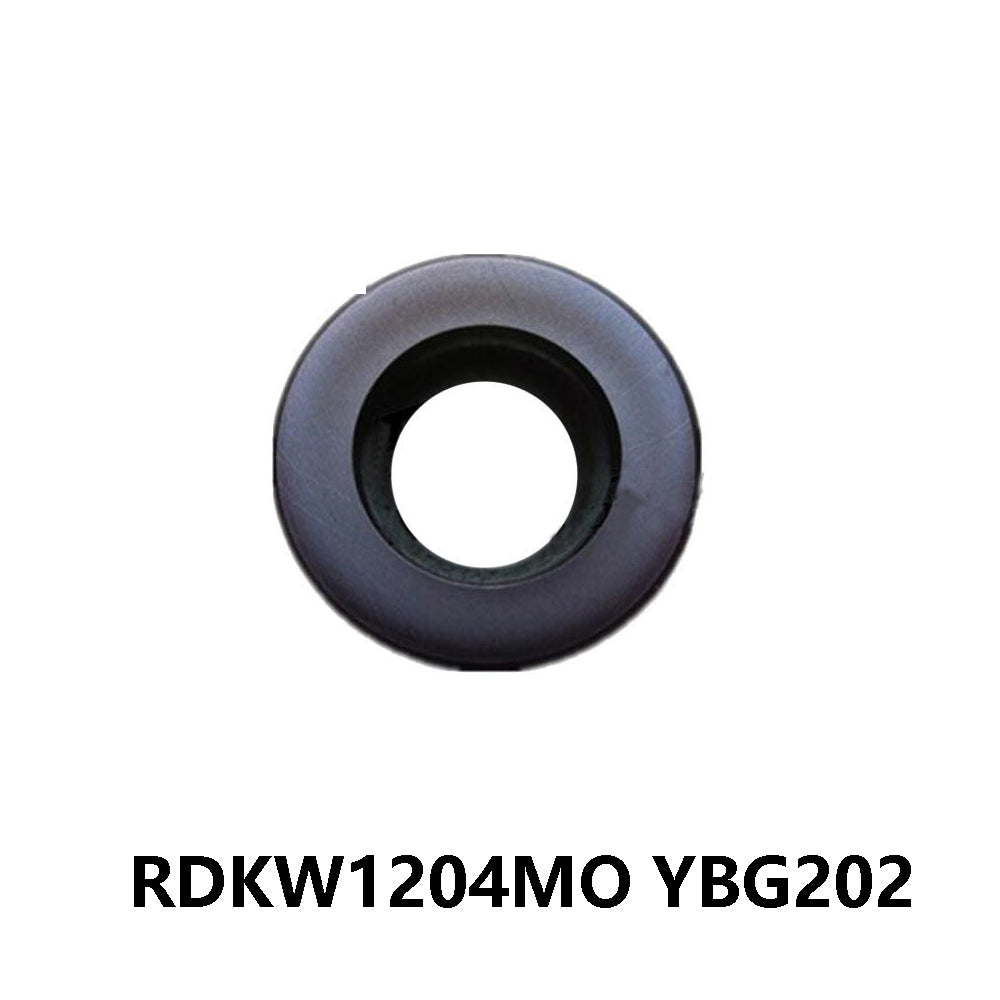

ZCC.CT RDKW1204MO YBG202
Premium Round Indexable Milling Inserts | Profile & Face Milling
The ZCC.CT RDKW1204MO YBG202 is a high-performance round milling insert, engineered for versatile profiling, face milling, and ramping operations. Featuring the advanced YBG202 PVD nano-coating, this insert provides exceptional thermal stability and edge strength, making it the preferred choice for machining stainless steel, heat-resistant alloys, and carbon steels.
Model Code Identification
Decoding the RDKW ISO specification for your CNC shop:
- R: Insert Shape — Round (Circular)
- D: Clearance Angle — 15° (Positive)
- K: Tolerance Class — High Precision
- W: Fixing/Chipbreaker — Countersunk hole, single-sided
- 12: Diameter Size — 12mm (Inscribed Circle)
- 04: Thickness — 4.76mm
- MO: Edge Preparation — Honed for smooth finishing and toughness
- YBG202: Grade — Sub-micron substrate with nc-TiAlN PVD coating
Metric vs. Imperial Specs
| Feature | Metric (ISO) | Imperial (ANSI) |
|---|---|---|
| Model Number | RDKW 1204 MO | RDKW 43 MO |
| Insert Diameter | 12.0 mm | 0.472 inch |
| Thickness | 4.76 mm | 0.187 inch |
Recommended Cutting Parameters
Achieve peak efficiency in your CNC milling operations with these YBG202 settings:
- Cutting Speed (Vc): 140 - 260 m/min (Steel) | 120 - 220 m/min (Stainless)
- Feed per Tooth (fz): 0.10 - 0.35 mm/z
- Max Depth of Cut (ap): Up to 6.0 mm (depending on setup)
*For heavy profile milling, ensure high-pressure coolant or air blast for chip evacuation.
Material Grade: YBG202 nc-TiAlN
The YBG202 grade is a "universal" PVD grade. Its nano-structured coating provides a smooth surface that prevents built-up edge (BUE), which is critical when milling sticky materials like 304/316 stainless steel. It balances hardness for wear resistance and toughness for interrupted cuts.
Round Geometry Advantages
The RDKW round insert design offers the strongest cutting edge of any insert shape. It allows for high feed rates and provides an excellent surface finish for 3D profiling and large-scale face milling.
Need a matching tool holder?
Explore EMR / RD4 Round Milling CuttersGlobal Customer Feedback
⭐⭐⭐⭐⭐ "Perfect for Mold Making" - David K., USA
"I use these for roughing out P20 mold steel. The round edges hold up way longer than square inserts."
⭐⭐⭐⭐⭐ "Excellent value for ZCC" - Müller T., Germany
"Genuine ZCC quality. YBG202 is my go-to for general stainless work."
⭐⭐⭐⭐ "Great finish" - Sato R., Japan
"Surface finish on our 304 parts is very reflective. Good chip breaking at high feeds."
⭐⭐⭐⭐⭐ "Very durable" - Ivan P., Poland
"Stable performance even in old machines. Fast shipping from the supplier."
⭐⭐⭐⭐⭐ "Cost-effective" - Liam W., Australia
"Performance is comparable to top European brands but at half the price."
FAQ - RDKW 1204 MO
Q: Can I use this for ramping?
A: Yes, round inserts like the RDKW 1204 are ideal for circular interpolation and ramping into the workpiece.
Q: Is this suitable for dry milling?
A: YBG202 is optimized for wet milling, but for steel milling at higher speeds, air-cooled dry milling can also prevent thermal cracking.
ZCC.CT Grade Comparison Tip
While YBG202 is the best all-around grade for P and M materials, if you are machining hardened steel (>45 HRC), we recommend checking our YBS series. For aluminum, always use the YD series (uncoated) for the sharpest edge possible.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
