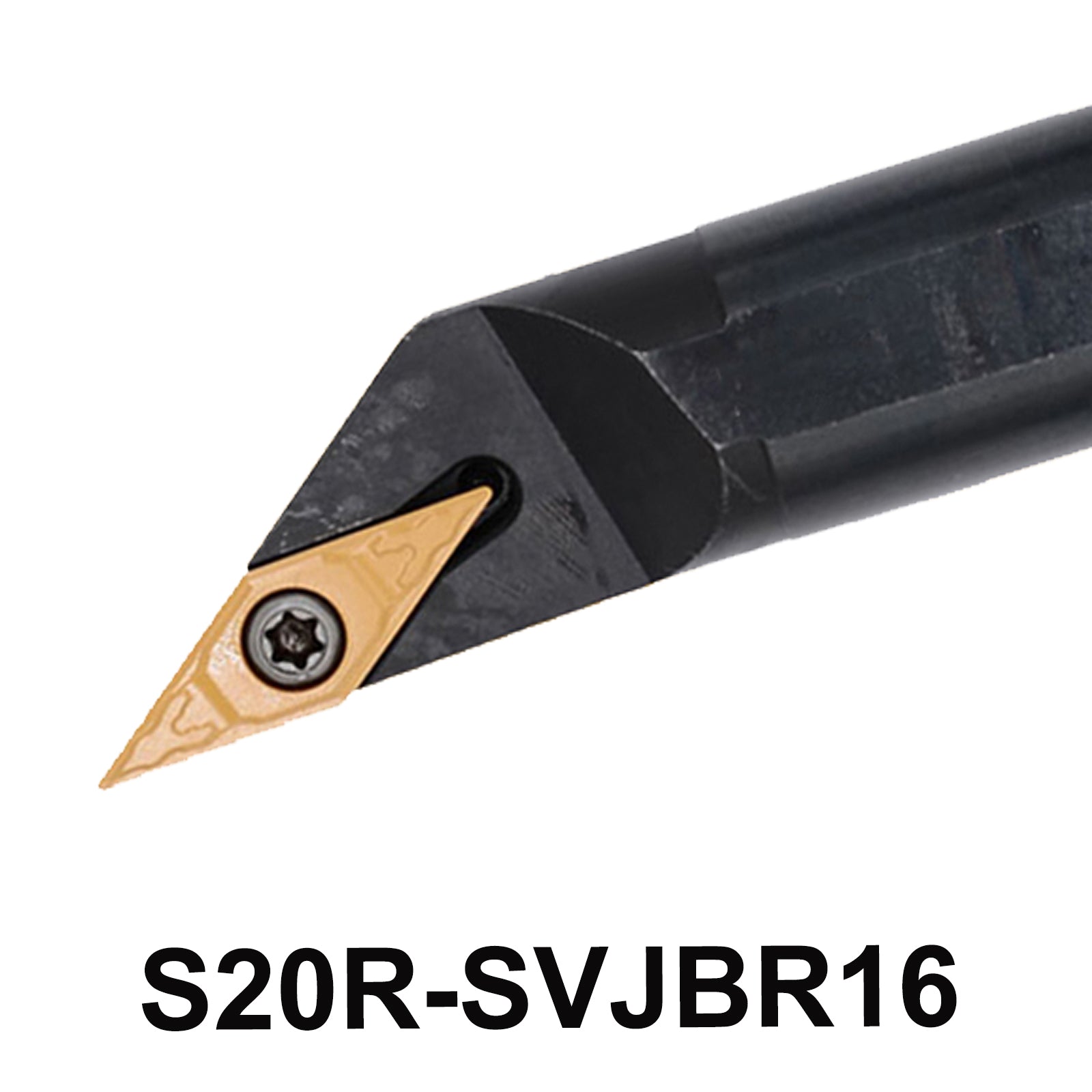

S20R-SVJBR16 CNC Internal Boring Bar Tool Holder – Superior Precision with 3° Cutting Edge Angle
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Features and Specifications
- Model: S20R-SVJBR16
- 3° cutting edge angle and 5° relief angle.
- Material: alloy steel
- Type: S-Type (Screw-type)
- Handle Diameter: 20mm
- Total Length: 200mm
- Cutting Blade Length: 16mm
- Screw Size: M4*10
- Wrench: T15
- Compatible Blades: VBMT160404 VBMT160408
Package Includes:
- S20R-SVJBR16 Internal Radius Turning Tool
- Compatible Screws, and Wrenches
Overview:
Introducing the S20R-SVJBR16 Internal Boring Bar Tool Holder, engineered for high precision and reliability in CNC machining applications. This tool holder features a cutting edge angle of 3° and a 5° blade relief angle, making it ideal for internal turning tasks . Constructed from durable alloy steel, it boasts a 20mm handle diameter and a 200mm total length, ensuring stability and comfort during use.
Application:
- CNC Machine Tools: Ideal for use with CNC lathes and boring bar setups, particularly for precision internal turning and boring operations.
BEYOND S20R-SVJBR16 Internal Turning Tools Holder S20R SVJBR16 SVJBR 16 Boring Bar CNC Lathe Cutter Machine SVJBR Carbide Inserts VBMT1604 VBMT160404
-
High-Precision S20R-SVJBR16 Internal Boring Bar Tool Holder
-
Durable Alloy Steel Construction for Reliable Machining
-
Versatile Compatibility with VBMT Blades for Optimal Performance
-
3° Cutting Edge Angle for Accurate Internal Boring
-
5° Blade Relief Angle for Smooth Cutting and Longevity
-
S-Type Screw Mechanism for Secure and Stable Blade Holding
-
20mm Handle Diameter for Comfortable Grip and Control
5-Point Description:
- Precision Cutting: Equipped with a 3° cutting edge angle, the S20R-SVJBR16 tool holder delivers precise and accurate internal boring and turning.
- Blade Relief: Features a 5° blade relief angle that ensures smooth cutting action and prolongs tool life.
- Durable Construction: Crafted from high-strength alloy steel, offering robustness and resilience for demanding machining tasks.
- Flexible Blade Compatibility: Designed to accommodate VBMT160404 and VBMT160408 blades, providing versatility for various machining needs.
- Ergonomic Design: The 20mm handle diameter and 200mm total length offer a comfortable grip and effective reach, enhancing operational efficiency.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
