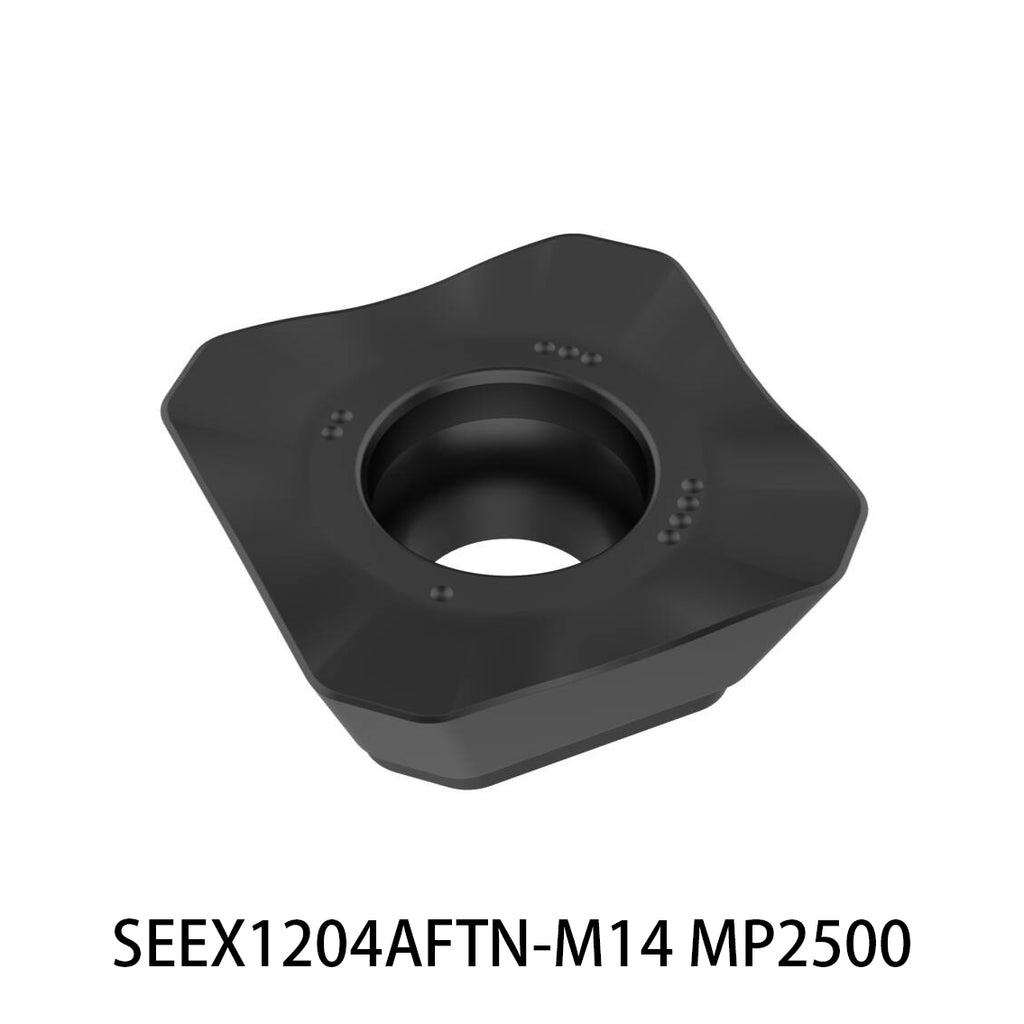

SEEX1204AFTN-M14 MP2500（10pcs） CVD-Coated Carbide Milling Insert for Steel and Stainless Steel
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Product Overview: The SEEX1204AFTN-M14 MP2500 insert is a high-performance carbide milling insert, designed with advanced Druiatomic® CVD coating technology. This versatile insert is optimized for milling steel and easy-to-medium-hard stainless steel, supporting both dry and wet cutting operations. With a neutral insert hand and a clearance angle of 20°, this insert ensures efficient chip evacuation and a smooth cutting process. The MP2500 grade provides excellent wear resistance and durability, making it the go-to choice for demanding milling tasks.
Specifications:
- Model: SEEX1204AFTN-M14 MP2500
- Grade: MP2500 (CVD-Coated Carbide)
- Application: Milling Steel and Stainless Steel
- Insert Size and Shape: SEEX1204
- Cutting Edge Count: 4
- Clearance Angle (AN): 20.0°
- Wiper Edge Length (BS): 1.5mm
- Cutting Edge Effective Length (LE): 8.70mm
- Corner Radius (RE): 1.12mm
- Insert Thickness (S): 4.76mm
- Inscribed Circle Diameter (IC): 12.70mm
- Weight: 0.006kg
- Wiper Edge Property: 0
- Cutting Geometry Type (CGTT): M14
- Barcode: 66065025001001
- Item Number: 02566065
Key Features:
- Advanced CVD Coating: Druiatomic® technology ensures superior wear resistance and durability in various milling conditions.
- Versatile Milling Performance: Ideal for both dry and wet milling of steel and easy-to-medium-hard stainless steel.
- Precision Cutting: With a 20° clearance angle and 4 cutting edges, this insert offers precise and efficient material removal.
- Durable and Reliable: The MP2500 grade delivers consistent performance, reducing tool changes and increasing productivity.
- Neutral Hand Design: Suitable for a wide range of milling applications, providing flexibility and ease of use.
Explore the SEEX1204AFTN-M14 MP2500 CVD-coated carbide insert, featuring 4 cutting edges and advanced Druiatomic® coating for superior milling of steel and stainless steel. Ideal for dry and wet cutting.
SEEX1204AFTN-M14 MP2500 Carbide Milling Insert
-
Key Features of SEEX1204AFTN-M14 MP2500
-
Detailed Specifications and Applications
-
Advanced CVD Coating for Enhanced Performance
-
Precision Milling with 4 Cutting Edges
-
Ideal for Steel and Stainless Steel
-
Superior Wear Resistance with MP2500 Grade
-
Versatility in Dry and Wet Cutting
-
Neutral Hand Design for Flexibility
This content is crafted to highlight the advanced features and technical specifications of the SEEX1204AFTN-M14 MP2500 insert, appealing to professionals seeking high-performance milling solutions.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
