Buy SIGER00808A-EH Internal Grooving Tool – High Precision CNC Lathe Cutter Holder for Enhanced Performance
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

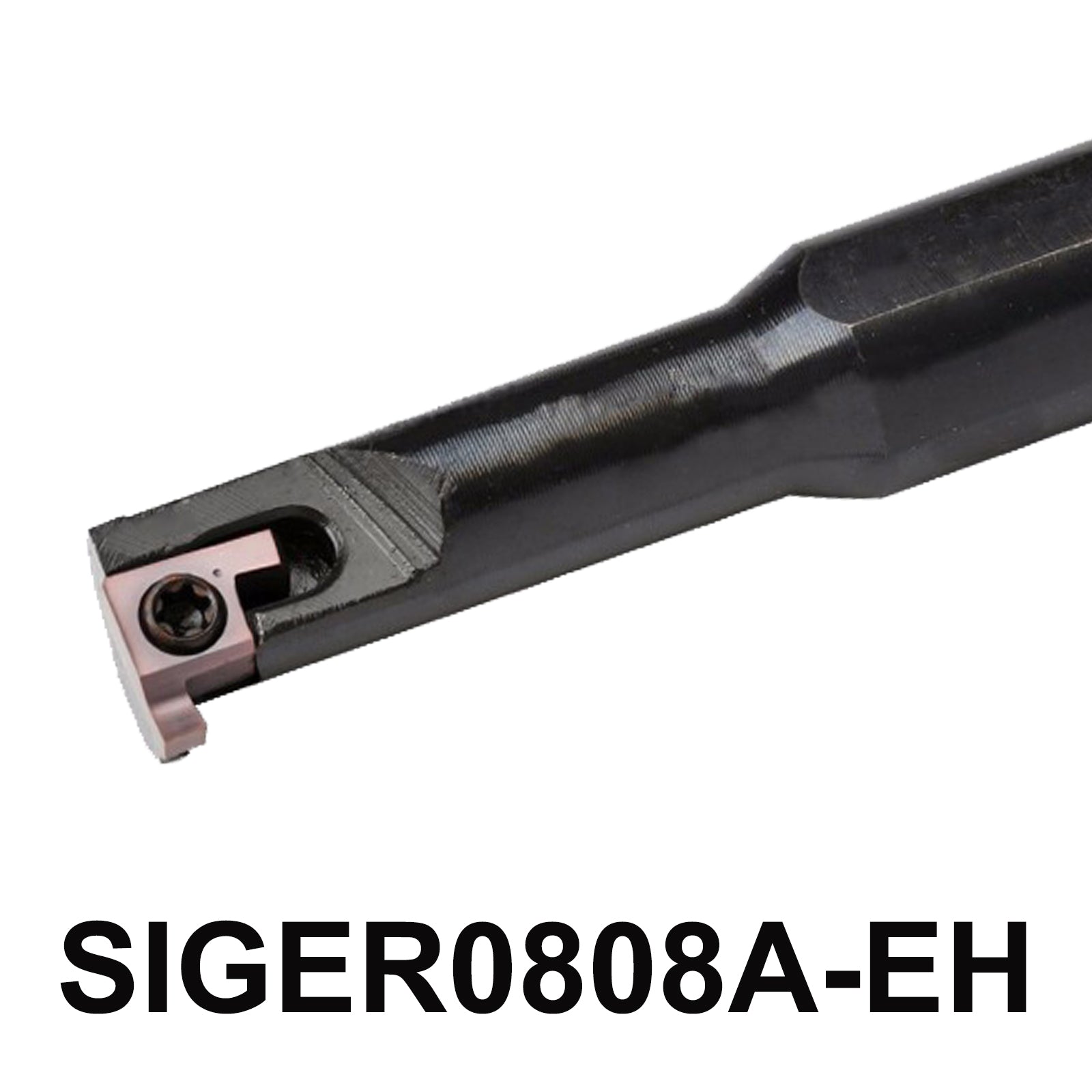

The SIGER00808A-EH Internal Grooving Tool is designed to bring precision and reliability to your CNC lathe operations.
This tool holder features a compact 125mm total length and a 8mm shank,with a minimum diameter of 8mm and a maximum cutting depth of 1.5mm,compatible with GER100-005A and GER200-010A inserts, it’s ideal for a variety of internal cutting applications
Product parameters:
-
Tool Holder Model: SIGER0808A-EH
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Total length : 125mm
- Shank : 8mm
- Dmin : 8mm
- Tmax : 1.5mm
-
Applicable blade : GER100-005A GER200-010A
-
Screw : M2.2*6
- Wrench : T6

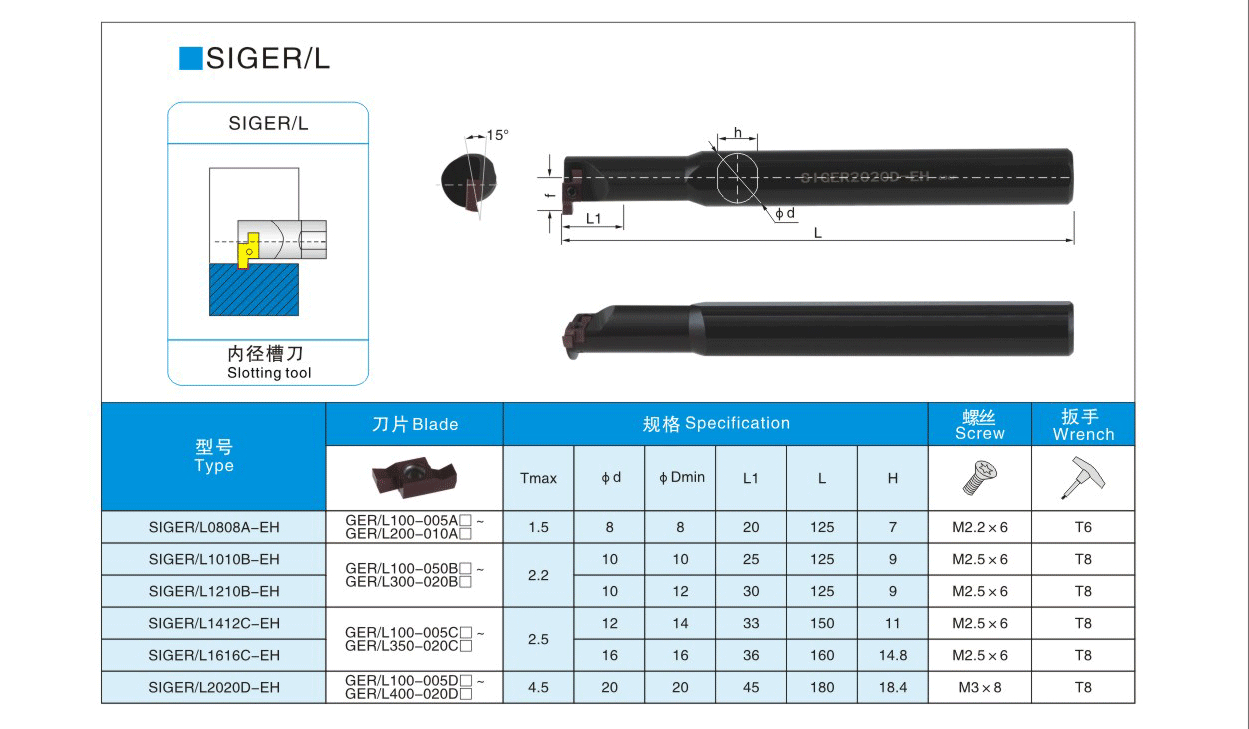

- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SIGER0808A-EH Id Grooving Tools
1 * "T" Type wrench
1 * M2.2*6 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SIGER0808A-EH Internal Grooving Turning Tools SIGER0808A-EH SIGER 0808A SIGER0808A EH CNC Lathe Cutter Slotting Holder Machine Boring Bar
-
Achieve Superior Machining Accuracy with the SIGER00808A-EH Internal Grooving Tool
-
Unlock Precision and Flexibility with SIGER00808A-EH for Internal Grooving
5-Point Description
-
Compact and Precise Design:
The SIGER00808A-EH features a total length of 125mm and a 8mm shank, ensuring precise cutting and excellent stability during internal grooving tasks. -
Versatile Insert Compatibility:
Compatible with GER100-005A and GER200-010A inserts, the tool allows for flexibility and a wide range of applications, making it ideal for both general and specialized internal machining. -
Complete Tool Kit:
The package includes the tool holder, screws (M2.2*6), and a T6 wrench, providing everything needed for quick and easy installation, allowing you to start working immediately. -
Enhanced Cutting Performance:
With a minimum internal diameter (Dmin) of 8mm and a maximum cutting depth (Tmax) of 1.5mm, this tool provides excellent accuracy, especially in tight spaces and intricate internal grooving applications. -
High-Quality CNC Tooling:
Made from durable, high-quality materials, the SIGER00808A-EH is designed for long-lasting performance, ensuring consistent results and reduced downtime in your machining operations.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
