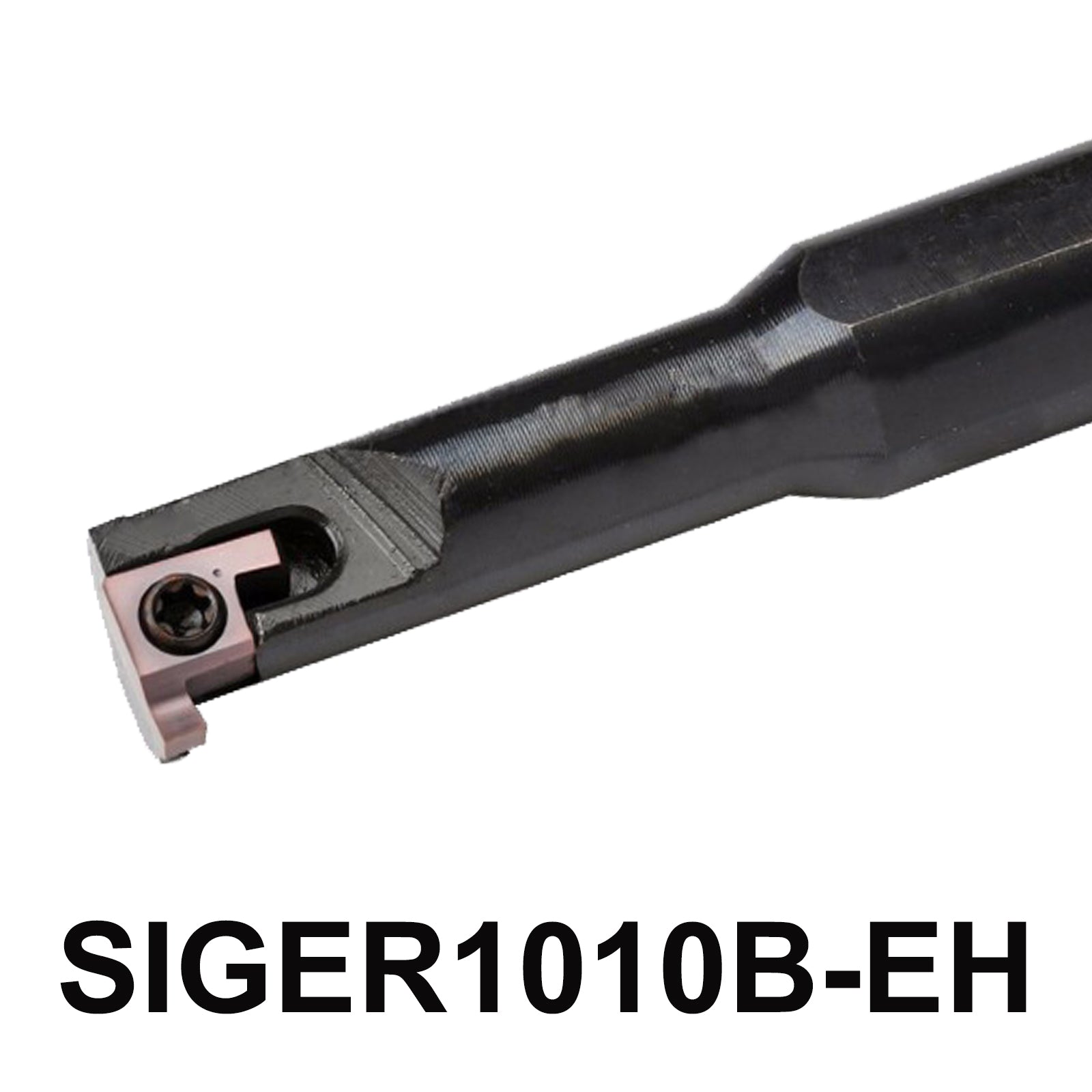

SIGER1010B-EH Internal Grooving Cutting Holder | High-Quality CNC Lathe Tool | Compatible with GER100-005B & GER300-020B Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The SIGER1010B-EH Internal Grooving Cutting Holder is designed to bring precision and reliability to your CNC lathe operations.
This tool holder features a compact 125mm total length and a 10mm shank,with a minimum diameter of 10mm and a maximum cutting depth of 2.2mm,compatible with GER100-005B and GER300-020B inserts, it’s ideal for a variety of internal cutting applications
Product parameters:
-
Tool Holder Model: SIGER1010B-EH
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Total length : 125mm
- Shank : 10mm
- Dmin : 10mm
- Tmax : 2.2mm
-
Applicable blade : GER100-005B GER300-020B
-
Screw : M2.5*6
- Wrench : T8
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SIGER1010B-EH Internal Grooving Cutting Holder
1 * "T" Type wrench
1 * M2.5*6 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SIGER1010B-EH Internal Grooving Cutting Holder SIGER1010B-EH SIGER 1010B SIGER1010B EH CNC Lathe Cutter Slotting Holder Machine Boring Bar
-
Key Features of the SIGER1010B-EH Internal Grooving Cutting Holder
-
Why Choose the SIGER1010B-EH for Your CNC Lathe?
5-Point Description
-
High-Precision Tooling
The SIGER1010B-EH cutting holder is engineered for high-precision grooving operations. With a total length of 125mm and a 10mm shank, this tool offers exceptional accuracy and stability during machining. -
Durable & Reliable
Crafted from high-quality materials, this CNC lathe tool holder ensures long-lasting durability and resistance to wear and tear, making it ideal for frequent use in demanding industrial environments. -
Easy Setup & Operation
The SIGER1010B-EH package includes everything you need for quick and easy installation, including screws (M2.5*6) and a T8 wrench. Start your cutting tasks with minimal setup time. -
Compatible with GER Inserts
This cutting holder is fully compatible with GER100-005B and GER300-020B inserts, providing flexibility and compatibility with your existing tooling system. -
Versatile Application
Perfect for internal grooving operations on CNC lathes, the SIGER1010B-EH cutting holder is designed to enhance your machining efficiency and deliver precise, smooth cuts in various materials.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
