Buy SIGER1616C-EH CNC Slotting Tool Holder | Durable, High-Performance Tool with GER100 & GER350 Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

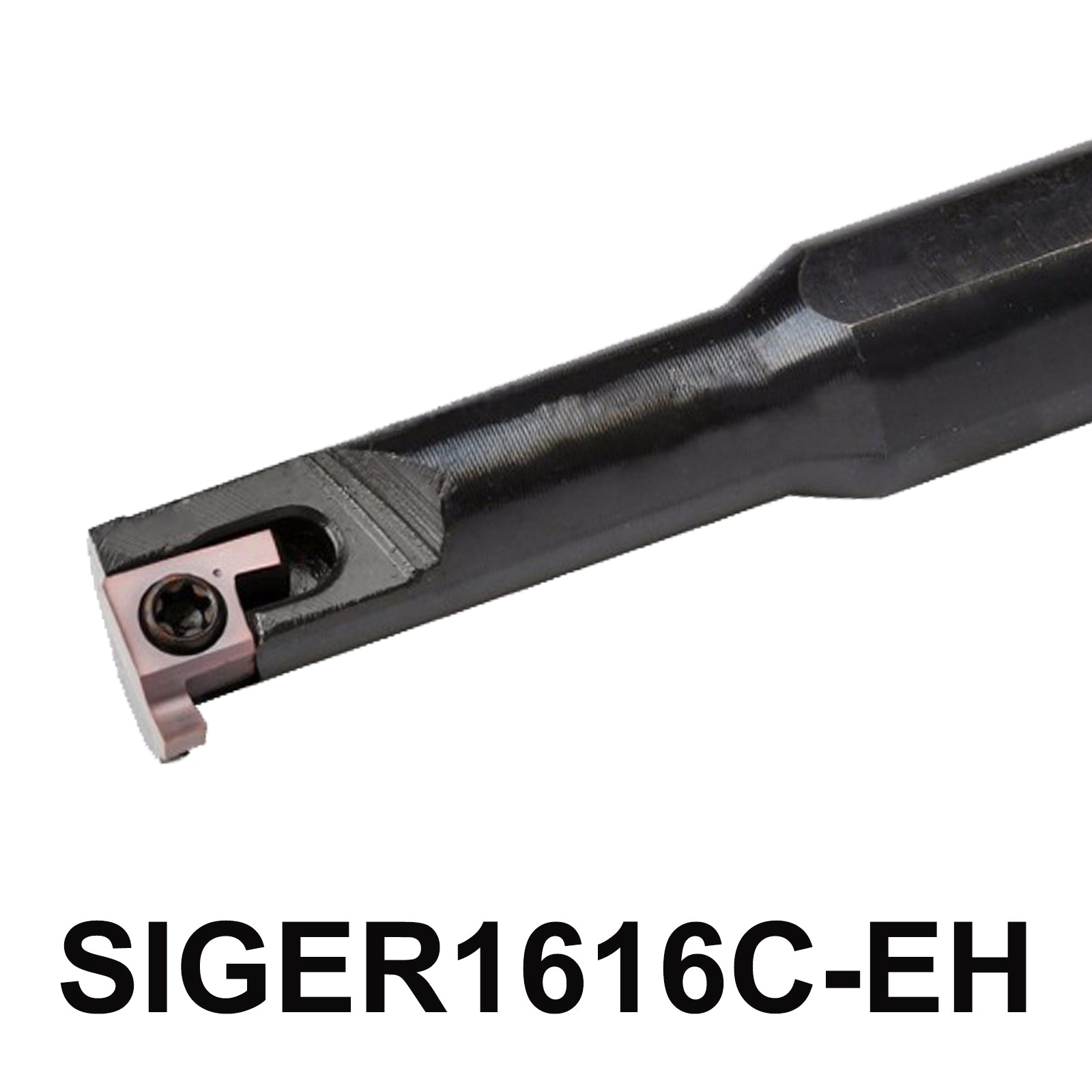

The SIGER1616C-EH Slotting Tool Holder is designed to bring precision and reliability to your CNC lathe operations.
This tool holder features a compact 160mm total length and a 16mm shank,with a minimum diameter of 16mm and a maximum cutting depth of 2.5mm,compatible with GER100-005C and GER350-020C inserts, it’s ideal for a variety of internal cutting applications
Product parameters:
-
Tool Holder Model: SIGER1616C-EH
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Total length : 160mm
- Shank : 16mm
- Dmin : 16mm
- Tmax : 2.5mm
-
Applicable blade : GER100-005C GER350-020C
-
Screw : M2.5*6
- Wrench : T8
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SIGER1616C-EH Slotting Tool Holder
1 * "T" Type wrench
1 * M2.5*6 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SIGER1616C-EH Slotting Tool Holder SIGER1616C-EH SIGER 1616C SIGER1616C EH CNC Lathe Cutter Slotting Holder Machine Boring Bar
-
Unlock Maximum Performance with the SIGER1616C-EH CNC Slotting Tool Holder
-
Key Features and Benefits of the SIGER1616C-EH Slotting Tool Holder for CNC Machining
5-Point Description
-
Precision Slotting Tool: The SIGER1616C-EH is specifically designed for slotting applications, providing excellent accuracy and stability during machining. Its 2.5mm maximum cutting depth (Tmax) and 16mm minimum cutting diameter (Dmin) ensure versatility for a wide range of projects.
-
High-Quality Material Construction: Built from durable, high-performance materials, this tool holder provides long-lasting service in even the most demanding CNC operations. Its robust design minimizes wear and extends tool life.
-
Versatile Compatibility with Inserts: Compatible with GER100-005C and GER350-020C inserts, the tool holder is adaptable to different machining requirements, allowing you to tackle a variety of materials and achieve superior cutting performance.
-
Easy Setup and Convenience: The SIGER1616C-EH package comes complete with M2.5*6 screws and a T8 wrench for quick, hassle-free installation and setup. This makes it an ideal choice for efficient, high-performance machining.
-
Reliable Performance and Durability: Designed to handle the stresses of slotting and groove cutting, this CNC lathe tool holder ensures smooth, precise cuts with minimal vibration, leading to better surface finishes and reducing tool replacement frequency.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
