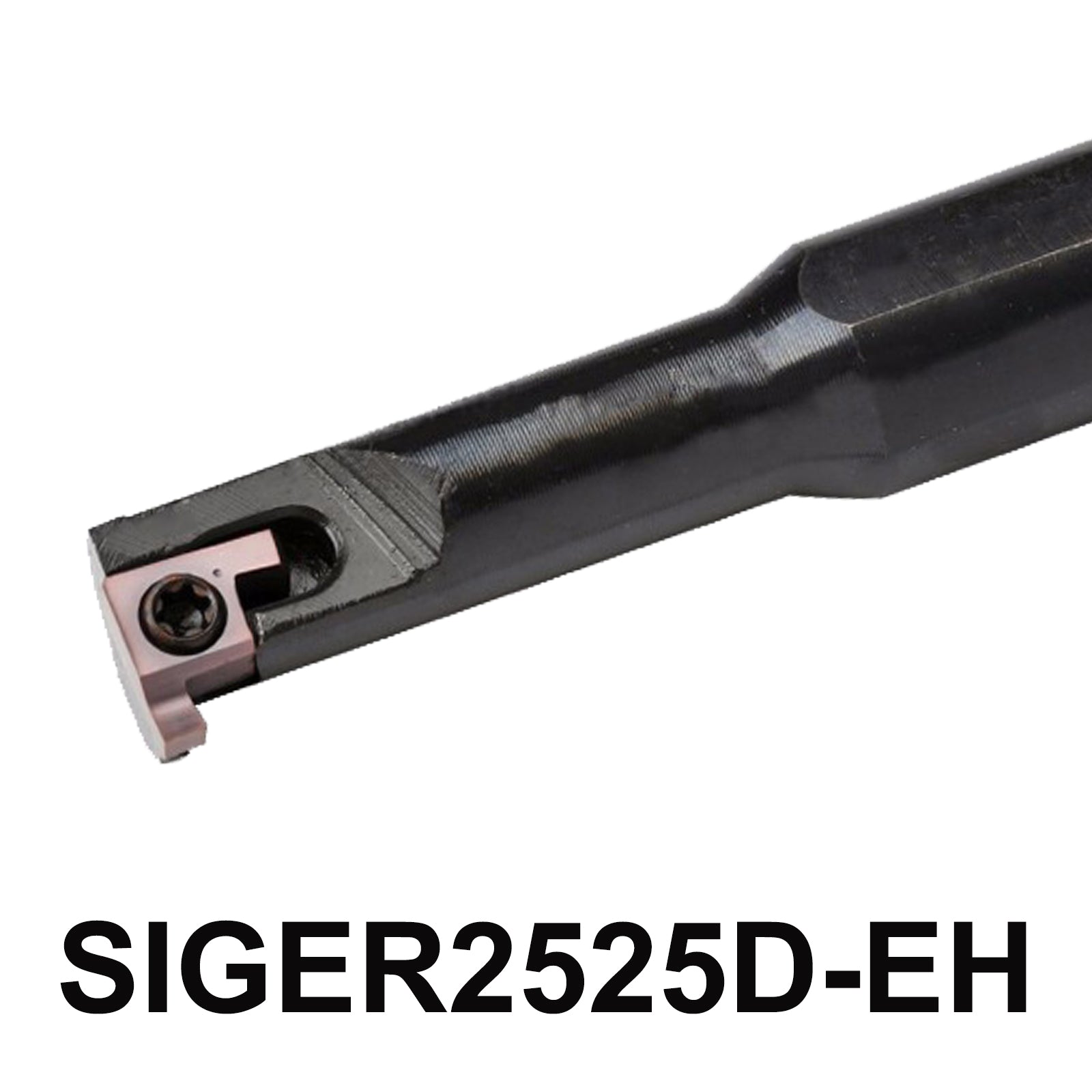

SIGER2525D-EH Slotting Machine Cutting Tool – CNC Lathe Tool Holder with GER Inserts Compatibility | Includes Screws and Wrench
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The SIGER2525D-EH Slotting Machine Cutting Tools is designed to bring precision and reliability to your CNC lathe operations.
This tool holder features a compact 180mm total length and a 25mm shank,with a minimum diameter of 25mm and a maximum cutting depth of 4.5mm,compatible with GER100-005D and GER400-020D inserts, it’s ideal for a variety of internal cutting applications
Product parameters:
-
Tool Holder Model: SIGER2525D-EH
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Total length : 180mm
- Shank : 25mm
- Dmin : 25mm
- Tmax : 4.5mm
-
Applicable blade : GER100-005D GER400-020D
-
Screw : M3*8
- Wrench : T8
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SIGER2525D-EH Slotting Machine Cutting Tools
1 * "T" Type wrench
1 * M3*8 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SIGER2525D-EH Slotting Machine Cutting Tools SIGER2525D-EH SIGER 2525D SIGER2525D EH CNC Lathe Cutter Slotting Holder Machine Boring Bar
-
Efficient Slotting Tool with Easy Setup and Superior Durability
-
Complete Slotting Cutting Solution – Includes Tool Holder, Screws, and Wrench
5-Point Description
-
Precise Slotting Performance: The SIGER2525D-EH cutting tool is specifically designed for slotting operations on CNC lathes. Its 180mm total length and 25mm shank provide stability and precision for high-accuracy cutting in demanding industrial applications.
-
Complete Tooling Kit: This product comes with a complete tooling kit, including the SIGER2525D-EH tool holder, M3*8 screws, and a T8 wrench. Everything you need for easy setup and hassle-free maintenance is included in the package.
-
Durable and High-Quality Construction: Made from top-grade materials, this slotting tool offers exceptional durability and resistance to wear, ensuring a longer service life and reduced downtime.
-
Compatible with GER Inserts: The SIGER2525D-EH is compatible with GER100-005D and GER400-020D inserts, providing versatility for a wide range of slotting operations. Easily swap out inserts to suit different cutting needs.
-
Easy Installation and Maintenance: With simple installation and adjustment, this tool can be quickly set up using the included T8 wrench. Its user-friendly design ensures ease of use and optimal performance in various machining environments.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
