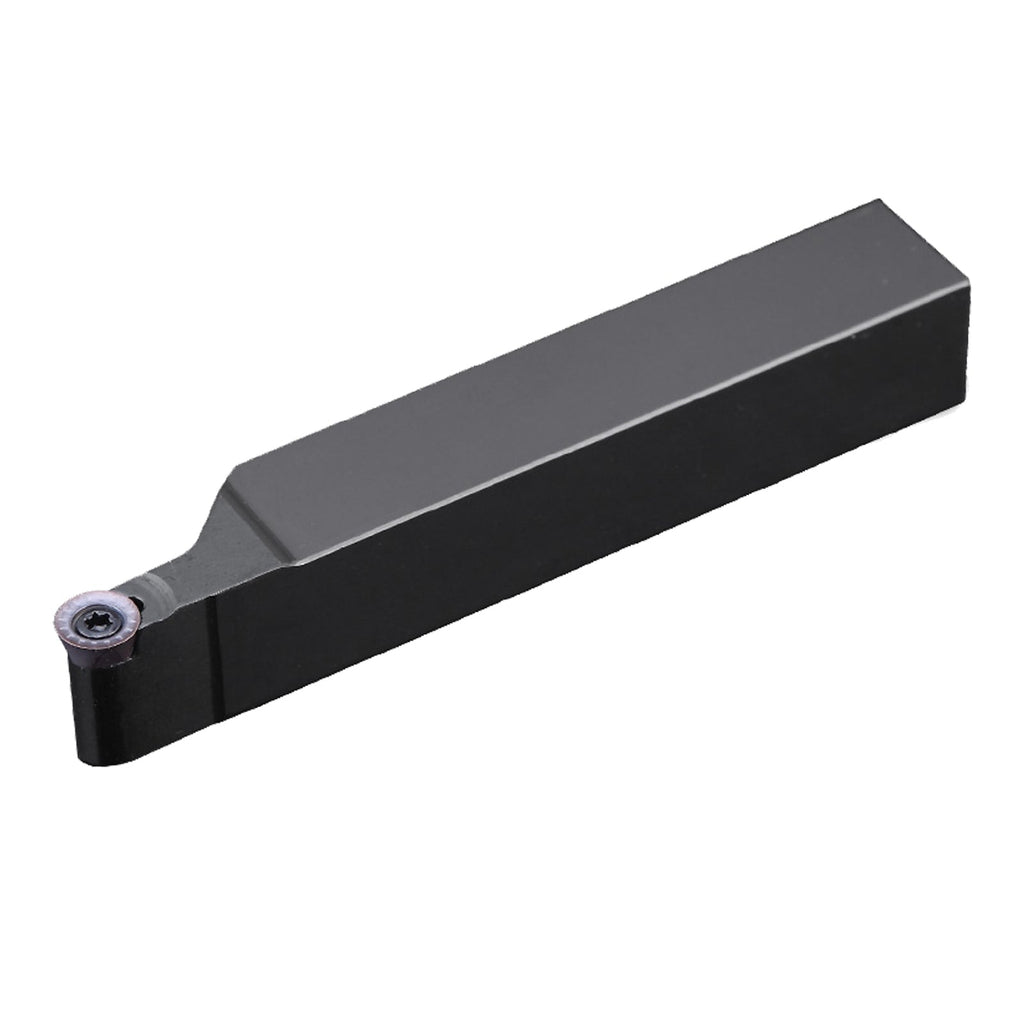

SRACR3232P12 External Turning Toolholder
Heavy-Duty 32x32mm Right-Hand Shank for RCMT1204 Round Inserts
Product Overview
"Which 32mm right-hand toolholder offers the maximum rigidity for high-volume profiling and heavy radius contouring with 12mm round inserts?"
The Beyond SRACR3232P12 is an industrial-strength external turning toolholder engineered specifically for RCMT1204 round inserts. With a massive 32x32mm shank, this tool provides the ultimate harmonic stability required for aggressive metal removal on large-diameter workpieces. Round geometry inserts (R-type) provide the strongest cutting edge in the industry, effectively distributing mechanical and thermal stress. This holder is the professional choice for roughing through scale on large forgings or achieving superior surface finishes on complex radii in steel, stainless, and cast iron.
Key Features
- ✔ Premium 42CrMo Alloy Steel: Quenched and tempered to HRC 42-45 for extreme impact resistance and vibration damping.
- ✔ High-Precision Screw Clamping: Optimized pocket geometry ensures zero insert movement even under heavy axial cutting forces.
- ✔ Superior Heat Dissipation: The 32mm shank mass acts as a heat sink, significantly extending the life of the carbide insert during long roughing cycles.
Technical Specifications
Screw Clamp
Round Shape
90° Approach
7° Relief
Right Hand
32x32mm
170mm Len
RCMT12
| ISO Parameter | Metric (mm) | Imperial (inch) |
|---|---|---|
| Shank Size (H x W) | 32 x 32 mm | 1.25" x 1.25" |
| Total Length | 170 mm | 6.69" |
| Insert Size | RCMT 1204** | Round 1/2" |
Recommended Cutting Parameters
| Material Group | Speed (Vc) | Feed Rate (f) |
|---|---|---|
| Steel (P) | 150 - 250 m/min | 0.15 - 0.45 mm/rev |
| Cast Iron (K) | 120 - 200 m/min | 0.12 - 0.40 mm/rev |
Compatible Insert: RCMT 1204** / RCGT 1204**
Optimized for 12mm round inserts for high-efficiency metal removal cycles.
Shop RCMT12 Inserts →Common Applications
- Heavy Roughing of Large Shafts & Axles
- Profilng Radius Fillets and Large Radii
- Heavy-Duty Facing in Alloy Steel
- Aerospace Component Contouring
Compatibility
Designed for industrial CNC turrets and large conventional lathes with 32mm (1.25") tool blocks. Standard ISO geometry ensures full compatibility with RCMT 12 series inserts from Beyond, Sandvik, and other global brands.
Beyond Brand Material Comparison
The Rigidity Benchmark: While standard 32mm toolholders may use simple carbon steel, Beyond utilizes high-alloy 42CrMo steel. Our specialized multi-stage quenching process creates a vibration-damping structure that is 30% more efficient than generic equivalents. This is critical for 12mm round inserts, as it prevents harmonic resonance from micro-chipping the carbide edge, resulting in cleaner surface finishes and significantly longer tool life.
Verified B2B Customer Reviews
"Massive rigidity. We use this for profiling heavy shafts and it's rock solid. The 12mm round insert stays perfectly positioned."
— Robert D., USA"Qualität ist erstklassig. Die RCMT12 Platten sitzen fest und sicher. Beste Wahl für schwere Zerspanung."
— Dieter W., Germany"Excellent toolholder for roughing large fillets. The surface finish is impressive even on tough alloys."
— Marco V., Italy"Beyond toolholders are consistently reliable. Accuracy is equal to top-tier brands but at a much better value."
— Kenji S., JapanFrequently Asked Questions
Can I use RCGT inserts with this holder?
Yes! The SRACR3232P12 is fully compatible with both RCMT (standard) and RCGT (ground and polished for aluminum/non-ferrous) 12mm round inserts.
What is the benefit of the "R" orientation?
The "R" stands for Right-Hand. This is the standard orientation for external turning towards the spindle on the majority of CNC lathes.
Is the clamping screw included?
Yes, every Beyond holder is shipped with a high-tensile clamping screw and the corresponding Torx wrench.
Material Pro Tip: High-Efficiency Contouring
When roughing with the SRACR3232P12, the 12mm round insert allows for significantly higher feed rates compared to diamond inserts. Because the edge is geographically stronger, you can increase your depth of cut to maximize metal removal rates without risking tool breakage.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
