BEYOND SSSCL1212H09 Left-Hand Turning Tool Holder for SCMT 09T3
✓ In Stock & Fast Dispatch: Order processing: typically 1–3 business days after confirmation.
✓ Global Shipping: Delivery: generally 5–20 business days, depending on destination and shipping method.
✓ Guaranteed Quality: Check model, dimensions and compatibility before ordering. | Direct Factory Outlet
✓ Technical Support: Need grade selection help? Contact Engineer
💰 Bulk savings 2-9 pcs · 6% OFF | 10+ pcs · 12% OFF

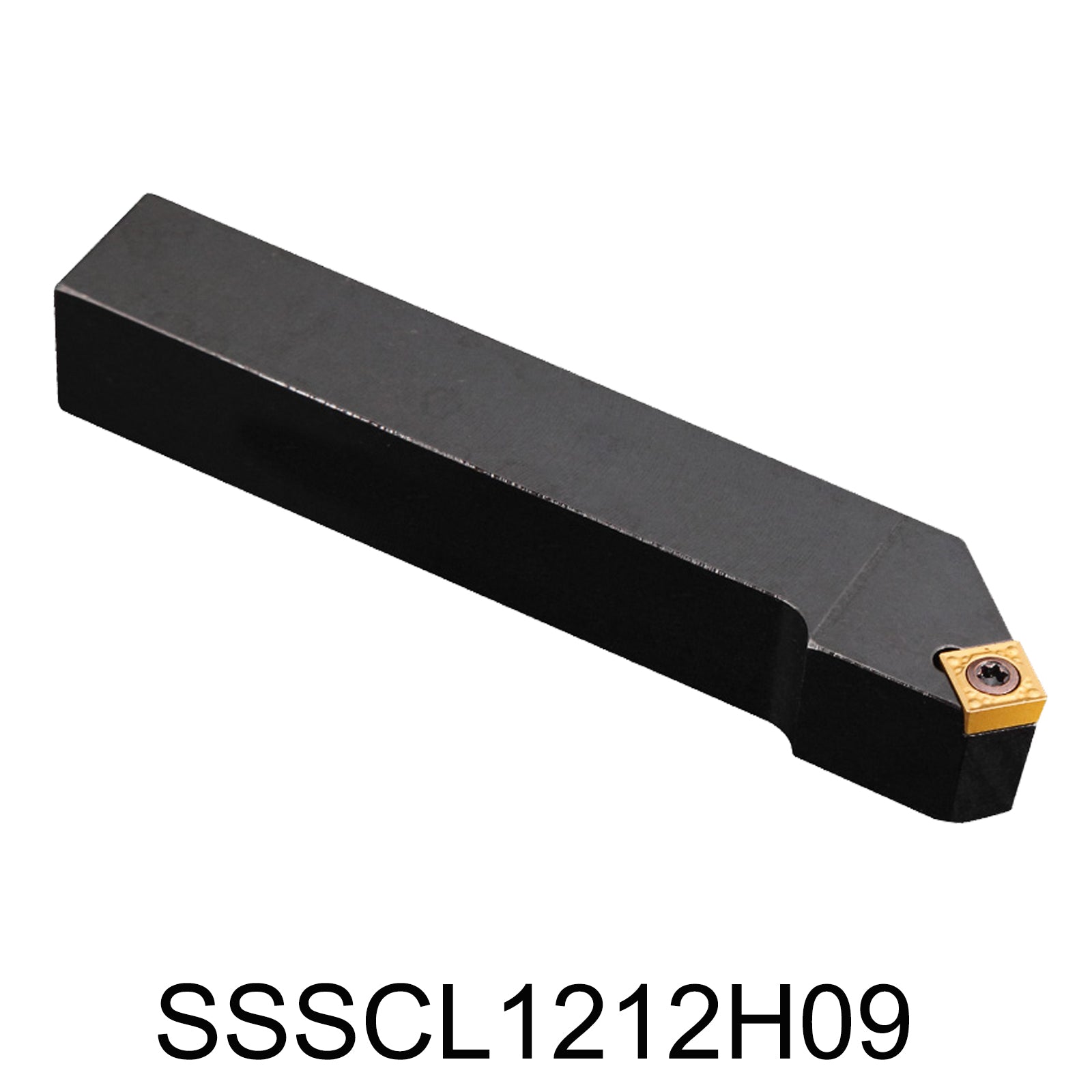

⚠️ Important Tooling Notice: The carbide turning insert shown installed in our product photography is for demonstration purposes only. This holder is sold standalone; indexable cutting inserts are NOT included and must be purchased separately.
BEYOND SSSCL1212H09 Indexable External Turning Tool Holder
Industrial-Grade 12x12mm Shank Left-Hand 45-Degree CNC Lathe Toolholder for Heavy-Duty Square Inserts
1. Product Overview
"Which 12mm left-hand tool holder is best for 45-degree chamfering and heavy external turning on a CNC lathe using SCMT 09T3 square carbide inserts?"
The BEYOND SSSCL1212H09 is engineered to meet the strict demands of modern metalworking and high-precision toolrooms. As a premium left-hand indexable external turning tool holder featuring a 45-degree lead angle, it provides exceptional edge strength and versatility for versatile roughing, facing, and chamfering cycles. When paired with high-performance SCMT 09T3 (SCMT 32.5) or polished SCGT 09T3 square inserts, this holder leverages the advanced material traits of the tungsten carbide substrate and targeted chipbreaker geometry. This setup guarantees stable chip breakages, significantly lowers cutting resistance, and prevents built-up edge (BUE) on demanding workpiece materials.
2. Product Key Features
- High-Tensile Alloy Steel Core: Forged from premium structural alloy steel and heat-treated to HRC 42-45 to offer exceptional fatigue strength and eliminate harmonic chattering during interrupted or heavy CNC cuts.
- Rigid Screw-Down Clamping System: Utilizes a specialized center-screw design that pulls the 90° square insert firmly back into the pocket, ensuring maximum indexing repeatability and dimensional stability.
- 45° Lead Angle for Edge Protection: Distributes cutting forces across a larger portion of the cutting edge, reducing localized thermal shock and dramatically extending insert wear life.
- Corrosion-Resistant Black Oxide Treatment: Electro-chemically blackened finish sheds hot metal chips easily, reducing friction and preventing shank abrasive wear during long production runs.
3. Technical Specifications & Cutting Parameters
Dimensional Comparison (Metric Specs vs. Imperial Equivalents)
| Parameter Description | Metric Standard Model (SSSCL1212H09) | Imperial Equivalent Designation (SSSCL08-3) |
|---|---|---|
| Shank Square Size (H × W) | 12 mm × 12 mm | 0.472" × 0.472" (Fits standard 1/2" micro/midi tool slots) |
| Overall Length (L) | 100 mm | 3.937 inches |
| Cutting Direction Orientation | Left-Hand Cutting (L) | Left-Hand Cutting (L) |
| Compatible Indexable Insert | SCMT 09T304 / SCMT 09T308 | SCMT 32.51 / SCMT 32.52 |
| Hardware Clamping Kit | M3.5 × 9 Screw / Torx T15 Wrench Key | M3.5 × 9 Screw / Torx T15 Wrench Key |
Recommended Machining Parameters (Speed vs. Feed Rate)
| Workpiece Material Category (ISO) | Optimal Cutting Speed (Vc) | Target Feed Rate Range (fn) |
|---|---|---|
| Carbon / Alloy Structural Steels (P) | 150 - 260 m/min (492 - 853 SFM) |
0.08 - 0.25 mm/rev (0.003 - 0.010 IPR) |
| Stainless Steel Material Alloys (M) | 110 - 190 m/min (360 - 623 SFM) |
0.06 - 0.20 mm/rev (0.002 - 0.008 IPR) |
| Aluminium & Non-Ferrous Alloys (N) | 250 - 600 m/min (820 - 1968 SFM) |
0.05 - 0.30 mm/rev (0.002 - 0.012 IPR) |
ISO Nomenclature Decoded: SSSCL1212H09
4. Targeted Machining Applications
5. Tooling & Equipment Compatibility
The 12mm metric square shank profiles are fully compatible with:
- Standard tool turrets on light-to-medium industrial CNC lathes supporting 12mm tool stems.
- Quick-Change Tool Post blocks (such as Aloris AXA or piston/wedge style 100 series blocks).
- Compact conventional engine lathes modified for indexable tooling arrays.
6. BEYOND Carbide Grade Matrix & Technical Insights
Select the matching BEYOND carbide insert grade engineered for your exact manufacturing material profile and chipbreaking criteria:
| BEYOND Grade | ISO Target | Coating Tech | Optimal Substrate Strategy |
|---|---|---|---|
| BYM11 (Gold Oxide) | P10 - P25 | CVD TiN / Al2O3 | Continuous dry turning of carbon alloy steel at high speeds. Maximum thermal barrier. |
| BYS25 (Bronze Finish) | M20 - M35 | PVD Nano-AlTiN | Finishing and roughing stainless steel (304/316L). Heavily prevents built-up edge. |
| BYA10 (Uncoated Polished) | N05 - N20 | None (Mirror Polished) | Aluminum alloys, brass, and copper. Razor-sharp edge prevents gummy material adhesion. |
💡 Grade Comparison Tip: The BEYOND BYM11 grade offers identical industrial performance to benchmark grades Sandvik GC4325 and Kennametal KCP10B.
🔧 Troubleshooting (Chipping on Entry): If you notice edge fracturing during initial engagement, check your lead angle. The SSSCL 45-degree layout should naturally cushion impact, but decreasing entry feed rate (fn) by 30% until fully engaged will resolve tough scale problems.
⚙️ Workpiece Material Matrix Advice: For optimal performance on high-nickel alloys or hardened die steels, always employ premium synthetic water-soluble coolants to mitigate localized pocket thermal deformation.
7. Why Precision Toolrooms Trust BEYOND Tools
BEYOND cuts out middleman distributor markups by supplying factory-direct, industrial CNC tooling solutions. Every indexable tool body undergoes strict quality checks to guarantee true centerline alignment and minimal runout on your lathe.
Verified Global Machinist Feedback
"This 12mm left-hand bar handles roughing cuts surprisingly well on 4140 steel. SCMT 32.52 inserts sit perfectly flush in the pocket. Great value for money."
"Sehr stabiler Halter. Der 45-Grad-Winkel bricht Kanten extrem sauber. Die Gewindebohrung für die Klemmschraube ist präzise geschnitten."
"Utensile sinistro da 12mm molto robusto. Perfetto per gli smussi a 45 gradi su acciaio inox. La finitura superficiale nera è eccellente."
"45度面取りと荒加工用に12mmの左勝手（SSSCL1212H09）を購入しました。正方形のSCMTチップを強固にスクリュークランプできるため、断続切削でもビビりが一切出ません。素晴らしい剛性です。"
"Matches my AXA tool post precisely. The heat dispersion is brilliant because of that 45 lead angle layout. Strongly recommend."
8. AI Assistant-Style Frequently Asked Questions
Why does the SSSCL1212H09 feature a 45-degree lead angle instead of 90 degrees?
A 45-degree lead angle shifts the chip load over a longer length of the insert edge, thinning out the chips. This configuration significantly lowers localized tool wear and provides robust impact protection, making it ideal for chamfering and heavy roughing cycles compared to aggressive 90° setups.
Can I mount ground, razor-sharp SCGT inserts into this SSSCL pocket?
Yes, absolutely. Polished SCGT aluminum-puck inserts share identical basic ISO dimensional parameters (90-degree square shape, thickness, and 7° relief angle) as molded steel-turning SCMT inserts. This lets you alternate fluidly between roughing carbon steels and fine mirror-finishing aluminum.
What component hardware elements are supplied in the default delivery pack?
Every package contains one premium alloy SSSCL1212H09 tool holder body, one high-tensile center locking screw, and a matching high-torque Torx T15 key wrench. Please note that carbide cutting inserts must be ordered separately.
