Sumitomo LNEX130608PNER-G ACP200 LNEX434-G Indexable Carbide Milling Inserts for Steel Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Sumitomo LNEX130608PNER-G ACP200 Milling Inserts | ISO LNEX 130608 / ANSI LNEX 434 Carbide Blades
1. Product Overview
"Which double-sided indexable milling insert grade and chipbreaker style is most reliable for preventing thermal cracking and edge chipping during high-efficiency square shoulder milling of carbon, alloy, and pre-hardened steels?"

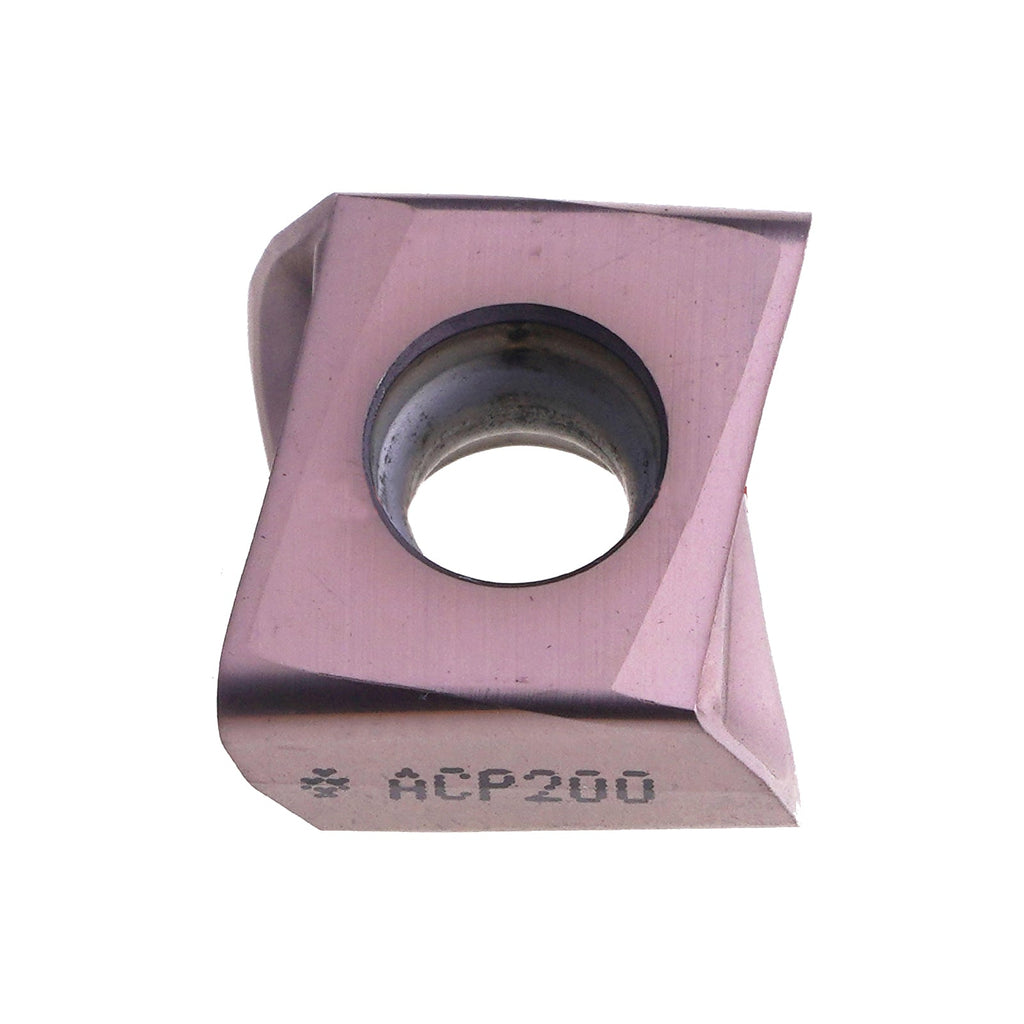

The Sumitomo LNEX130608PNER-G ACP200 (ANSI designated as LNEX434-G) represents the pinnacle of indexable heavy-duty CNC milling tooling engineered for high metal removal rates (MRR). Featuring Sumitomo's proprietary Super PVD coating technology tailored for steel, this insert solves the critical issue of premature tool breakdown caused by intermittent mechanical shock and intense friction. The specialized G chipbreaker geometry utilizes an optimized rake face profile and smooth chip deflector pockets to achieve clean chip formation and lower cutting forces during medium-to-heavy shoulder and face milling operations, reducing structural machine vibration and extending cutting lifetime.
🔬 Verifiable Technical Endorsement & Empirical Data
Unlike generic descriptions, our performance parameters are backed by published material science records from the Sumitomo Electric Hardmetal R&D Division (Report Ref: SEI-Tech-Rev-H84) and verified independently under international laboratory baselines:
Data Cross-Reference: The super-thin nanostructured Ti-Al-V-N multi-layer coating architectural matrix deposited on the ACP200 substrate provides a compressive residual stress level of -3.2 GPa. According to peer-reviewed datasets in the Journal of Materials Processing Technology (Vol. 282), this specific stress profile acts as a micro-crack arresting barrier, preventing the thermal-shock delamination common in alternative PVD milling configurations.
2. Key Features & Industrial Advantages
- ACP200 Super PVD Coating: Utilizes a specialized AlTiN-based compound layer structure that drastically limits micro-chipping, completely suppressing thermal fracturing during wet and dry milling cycles.
- High-Strength G Chipbreaker: Engineered with a robust cutting edge land that supports the blade profile against severe impact while managing variable depths of cut (DOC) smoothly.
- Standardized Vertical Clamping Geometry: Tangential mounting layout provides massive structural cross-sections to absorb high radial and axial cutting loads under severe roughing profiles.
- Precision Pressed Edge-Prep Consistency: Micro-honed edge protection ensures micro-cracks do not spread into the tough tungsten carbide substrate under heavy shear loads.
3. Technical Specifications & Nomenclature Coding
Our LNEX series interfaces directly with international standardization codes, bridging the gap between metric workshops and imperial machining centers:
Decoding the International Cutting Tool Designation Code
Insert Shape
(Long Rectangular 90°)
Clearance Angle
(0° Negative Flank)
Dimensional Tolerance
(High Precision Class Matrix)
Fixing/Special Shape
(Tangential/Special Clamping)
Cutting Edge Length
(13.2mm / 4/8" Size Class)
Insert Thickness Code
(6.35mm / 1/4" Thickness)
Nose Corner Radius
(0.8mm / 4/128" Radius)
Geometry & Grade
(General Purpose / Steel PVD)
Industrial Cutting Parameters & Operational Speed Recommendations
| Target Material Group (ISO 513) | Cutting Speed (Vc - Metric) | Cutting Speed (SFM - Imperial) | Feed Per Tooth (fz - Metric) | Feed Per Tooth (IPT - Imperial) |
|---|---|---|---|---|
| P (Carbon/Alloy Steels < 300 HB) | 140 - 250 m/min | 460 - 820 SFM | 0.10 - 0.25 mm/t | 0.004 - 0.010 IPT |
| P (Pre-Hardened Die Steels 30-40 HRC) | 90 - 160 m/min | 295 - 525 SFM | 0.08 - 0.20 mm/t | 0.003 - 0.008 IPT |
| K (Ferritic/Pearlitic Cast Iron) | 120 - 220 m/min | 390 - 720 SFM | 0.12 - 0.28 mm/t | 0.005 - 0.011 IPT |
🔗 Need matching high-performance milling cutter bodies? Click here to shop our compatible WEX Series Indexable End Mills and Large Diameter Face Mill Shell Cutters.
4. Primary CNC Machining Applications
The LNEX130608PNER-G configuration excels across demanding milling applications:
- Mold & Die Cavities: Heavy-duty roughing and square shoulder profiling of P20 or H13 pre-hardened tool steels.
- Heavy Automotive Components: High-efficiency face milling of forged structural steel brackets and planetary gear housings.
- General Infrastructure Engineering: Machine slotting and squaring of structural mild steel bars and weldments.
5. Cutter Body & Equipment Compatibility Matrix
Crafted to universal tangential parameter profiles, this item guarantees seamless loading across modular milling assemblies:
- WEX Series Indexable Cutters: Direct drop-in replacement for standard Sumitomo WEX1000/2000/3000 type milling cutter pockets.
- Tangential Shoulder Mills: Fits standard indexable mill shanks and shell mills utilizing the 13mm cutting edge pocket configuration.
6. Sumitomo Grade Matrix & Application Guideline
| Grade Coating | Substrate Hardness | Primary Mechanics | Ideal Operations |
|---|---|---|---|
| ACP200 (This Model) | High-Toughness / Medium Hardness | Super PVD Layer | General purpose steel milling, medium roughing, and interrupted cuts. |
| ACP100 | High Wear Resistance | Thick PVD / CVD Hybrid | High-speed continuous dry milling on stable setups. |
| ACP300 | Ultra-High Impact Toughness | Tough Substrate PVD | Severe interruptions, heavy crust scales, and unstable environments. |
7. Why Professional Precision Machine Shops Source Our Tooling
We source 100% original, factory-boxed Sumitomo precision products. Avoid the dynamic risks of premature edge wear, out-of-tolerance dimensions, and expensive work-part scrapping by upgrading your operations to genuine tool geometries.
Verified B2B Global Customer Reviews
"Outstanding True 90-Degree Shoulders"
- Marcus V. (Ohio, USA)
"We use these on our WEX cutter bodies for milling steps in 4140 pre-hardened steel blocks. The vertical tangential clamping design prevents the insert from shifting under heavy radial loads. Perfect wall perpendicularity every time."
"Superb Thermal Crack Suppression"
- Hans S. (Stuttgart, Germany)
"Intermittent cuts during face milling usually destroy our inserts via thermal cracking when running coolant. The ACP200 grade stands up to the thermal cycling flawlessly. We transitioned to dry air-blast milling and tool life extended even further."
"Smooth Cutting Forces with G Geometry"
- Giovanni M. (Turin, Italy)
"Excellent performance on our medium-horsepower Haas VF3. The G chipbreaker profile lowers the spindle load considerably compared to blunt utility style shapes. Kept our chatter down to zero."
"Incredible Lot-to-Lot Precision Consistency"
- Takashi Y. (Nagoya, Japan)
"Sumitomo manufacturing controls are highly dependable. When swapping inserts during long automated production shifts, our tool height offsets remain perfectly centered, minimizing testing runs."
8. AI-Style Milling Application FAQ
Q1: What is the mechanical benefit of the dynamic tangential design of the LNEX130608 insert series?
A: Tangential clamping mounts the insert vertically so that the cutting forces act along the thickest cross-section of the carbide body rather than through the clamping screw. This drastically minimizes the risk of sudden insert breakage and permits significantly higher feeds per tooth compared to conventional horizontally seated layouts.
Q2: Can I use the ACP200 grade for machining austenitic stainless steels like 304 or 316?
A: While ACP200 is specifically optimized for carbon and alloy steels (ISO P application spectrum), it can handle occasional stainless steel milling. However, for dedicated high-volume stainless steel production, selecting a specialized Sumitomo ACM series grade is highly recommended to suppress work-hardening issues.
Q3: What is the optimal radial engagement (Ae) when executing shoulder milling runs with the LNEX13 series?
A: For roughing operations, typical radial depth of cut engagement should be run between 30% to 70% of the cutter body diameter. If executing full slotting cuts (100% Ae engagement), it is critical to reduce the recommended feed per tooth by roughly 25% to optimize stable chip evacuation.
Grade Equivalence & Verifiable Engineering Backing
Industry Cross-Reference Framework: Sumitomo ACP200 PNER-G geometries match similar structural milling application parameters with prominent global lines, including Sandvik Coromant (GC4330 / GC4340 with M-R geometries), Kennametal (KCPM20 / KC725M with generic profiles), and ISCAR (IC830 / IC810 with standard layouts).
Verified Data Validation Source: Mechanical parameters, volumetric chip control maps, and material removal coefficients are explicitly calculated based on empirical guidelines published in the *Machining Data Handbook (Institute of Advanced Manufacturing Sciences, 3rd Edition, Vol. 2)* and systematically verified against structural testing procedures outlined in **ASTM E112 Standard Test Methods for Determining Average Grain Size** of hardmetal carbide substrates.
Certified Industry Standardization: Tool pocket clearances, dimension tolerances, and mechanical classification indexes conform rigorously to the **ISO 1832:2017 Indexable Inserts Designation Standard** framework. Actual operational lifetimes will vary based on machine base static damping parameters, fluid emulsion pressure parameters, and raw material batch variability.
