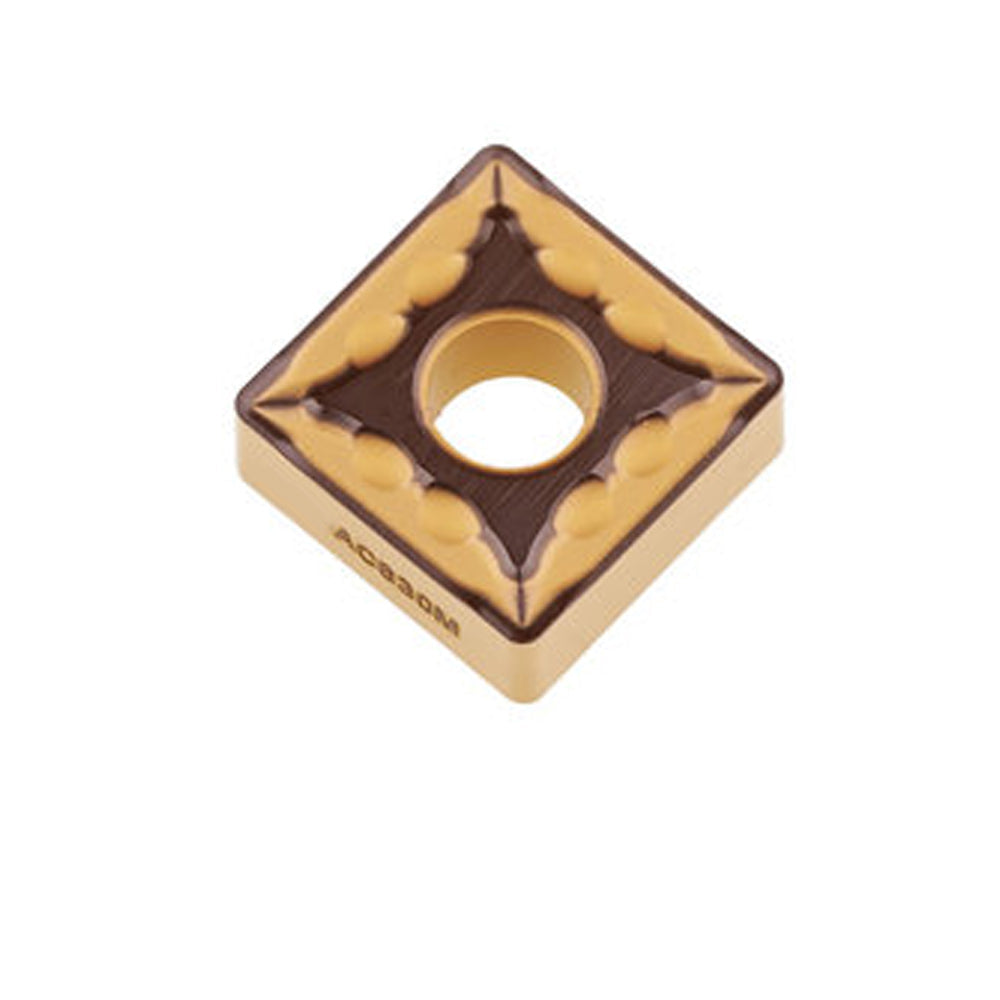

Sumitomo SNMG120408N-MU AC630M SNMG432MU Indexable Carbide Turning Inserts for Stainless Steel
Free shipping on all orders.
Check compatibility: Confirm the model and dimensions before ordering.
Need help choosing? Contact us before ordering.
💰 Bulk savings 2-9 pcs · 6% OFF | 10+ pcs · 12% OFF
Sumitomo SNMG120408N-MU AC630M Turning Inserts | ISO SNMG 120408 / ANSI SNMG 432 Carbide Blades
1. Product Overview
"Which roughing carbide insert grade and chipbreaker style is most reliable for eliminating notch wear and work hardening during continuous and interrupted CNC turning of austenitic stainless steels like SUS304 and SUS316?"
The Sumitomo SNMG120408N-MU AC630M (ANSI designated as SNMG432MU) represents the pinnacle of indexable heavy-duty lathe tooling engineered for harsh environments. Featuring Sumitomo’s proprietary Absotech Platinum PVD coating technology, this insert solves the critical issue of cutting-edge chipping caused by the high heat and stickiness of exotic alloys. The specialized MU chipbreaker geometry utilizes a progressive variable rake angle and deep deflector pockets to forcefully snap stringy chips during medium-to-heavy rough turning operations, reducing structural machine vibration and delivering outstanding metal removal rates (MRR).
2. Key Features & Industrial Advantages
- Absotech Platinum PVD Coating: Utilizes a highly smooth, ultra-dense TiAlN titanium aluminum nitride crystal structure that drastically reduces friction, completely suppressing thermal fracturing and adhesion (BUE) on gummy workpieces.
- High-Strength MU Chipbreaker: Engineered with a reinforced flank land that supports the cutting edge against heavy impacts while managing variable depths of cut (DOC) smoothly.
- Standardized Double-Sided Economy: Features a 90° square profile providing 8 distinct, high-precision cutting corners per insert, ensuring the lowest cost-per-edge matrix for large-scale production runs.
- Superior Edge-Prep Consistency: Micro-honed edge protection ensures micro-cracks do not spread into the tough tungsten carbide substrate under heavy shear loads.
3. Technical Specifications & Nomenclature Coding
Our SNMG series interfaces directly with international standardization codes, bridging the gap between metric workshops and imperial machining centers:
Decoding the International Cutting Tool Designation Code
Insert Shape
(90° Square Configuration)
Clearance Angle
(0° Negative Flank)
Dimensional Tolerance
(High-Precision Class Matrix)
Clamping / Thickness
(Hole + Double-Sided Rake)
Cutting Edge Length
(12.7mm / 3/8" I.C. Size)
Insert Thickness Code
(4.76mm Metric Thickness)
Nose Corner Radius
(0.8mm / 1/32" Radius)
Chipbreaker & Grade
(Stainless Roughing / PVD)
Industrial Cutting Parameters & Operational Speed Recommendations
| Target Material Group (ISO) | Cutting Speed (Vc - Metric) | Cutting Speed (SFM - Imperial) | Feed Rate (f - Metric) | Feed Rate (IPR - Imperial) |
|---|---|---|---|---|
| M (Austenitic Stainless 304/316) | 80 - 160 m/min | 260 - 525 SFM | 0.20 - 0.50 mm/rev | 0.008 - 0.020 IPR |
| M (Duplex Stainless Steels) | 60 - 120 m/min | 195 - 390 SFM | 0.18 - 0.40 mm/rev | 0.007 - 0.016 IPR |
| S (High-Temperature Alloys/Inconel) | 25 - 60 m/min | 80 - 195 SFM | 0.15 - 0.35 mm/rev | 0.006 - 0.014 IPR |
4. Primary CNC Machining Applications
The SNMG120408N-MU configuration excels across demanding heavy-industry production applications:
- Marine Engineering Shafts: Rough turning of large-diameter 316L propeller shafts involving heavy forged crusts and surface scales.
- Chemical Processing Valves: Facing and interior boring of heavy-wall cast stainless steel valve pump housings and multi-flange couplings.
- Power Generation Turbines: High-feed rough profiling of heat-resistant steel alloy components requiring dimensional structural consistency.
5. Toolholder & Equipment Compatibility Matrix
Crafted to universal 90° square parameter profiles, this item guarantees seamless loading across modular clamping assemblies:
- Pin-and-Clamp External Holders: Fully compatible with industry-standard generic DSBNR, DDJNR, and PSSNR turning blocks.
- CNC Indexable Boring Bars: Fits negative-rake interior boring bars utilizing 12.7mm (1/2") inscribed circle seating shims.
6. Sumitomo Grade Matrix & Application Guideline
| Grade Coating | Substrate Hardness | Primary Mechanics | Ideal Operations |
|---|---|---|---|
| AC630M (This Model) | High-Toughness Carbide | Absotech PVD Layer | Interrupted cuts, scale removal, and heavy roughing. |
| AC610M | High-Wear Resistance | Super-Smooth CVD Layer | Continuous high-speed finishing to light profiling. |
7. Why Professional Precision Machine Shops Source Our Tooling
We source 100% original, factory-boxed Sumitomo precision products. Avoid the dynamic risks of premature chipping, out-of-tolerance parts, and expensive downtime by upgrading your operations to genuine tool geometries.
Verified B2B Global Customer Reviews
"Phenomenal Notch Wear Elimination"
- David R. (Texas, USA)
"We were losing inserts rapidly on the depth-of-cut line while turning forged 316 flanges. Swapped to the AC630M MU configuration and immediately achieved a 180% increase in tool life per edge. The Absotech coating handles thermal shock beautifully."
"The MU Chipbreaker Snaps Stringy Chips Perfectly"
- Dieter K. (Ruhr Valley, Germany)
"Stringy, nesting ribbons used to choke our chip conveyor systems during automatic roughing runs. Sumitomo’s MU geometry curls and breaks them into tight 6-shaped segments cleanly. Highly recommend this for unmanned machining cells."
"Excellent in Interrupted Heavy Cuts"
- Matteo B. (Bologna, Italy)
"Tough substrate. Ran this through severe keyway interruptions on large shafts. The cutting corners didn't fracture or flake away like standard CVD grades tend to."
"Absolute Precision Batch Consistency"
- Kenji T. (Osaka, Japan)
"Sumitomo holds incredibly tight size parameters across production batches. Tool offsets remain constant box after box, maintaining zero variance in our part sizing."
8. AI-Style Turning Application FAQ
Q1: When should I select Sumitomo's PVD-coated AC630M grade over a CVD-coated grade like AC610M?
A: The PVD-coated AC630M grade is engineered with a high-toughness substrate matrix optimized for rough machining, heavy mechanical shock, scale layers, and interrupted cuts. In contrast, CVD grades like AC610M feature higher surface hardness and are suited for high-speed continuous finishing under stable setups where thermal wear resistance is prioritized.
Q2: What is the optimal depth of cut (DOC) range for the MU chipbreaker profile on a 1.2mm nominal insert width?
A: For optimal chip control, the MU chipbreaker performs exceptionally well within a depth of cut range of 1.5mm to 5.0mm (0.060" to 0.200"). Running below 1.0mm can result in inadequate chip deformation, leading to bird-nesting or stringy chips.
Q3: How does the 0.8mm nose radius balance feed rates versus surface finish requirements?
A: The 0.8mm (1/32") nose radius provides a robust cross-section that supports high roughing feeds while preventing tool deflection. It allows feed rates up to 0.45 mm/rev while maintaining structural tool-edge integrity, leaving an ideal semi-finish surface ready for final passes.
Grade Equivalence & Professional Troubleshooting Tips
Industry Cross-Reference Framework: Sumitomo AC630M MU geometries match similar structural application parameters with popular standard lines, including Sandvik Coromant (GC2220 / GC1115 with MR/MM profiles), Kennametal (KSS20B / KCU25 with MS/MP profiles), and ISCAR (IC807 / IC6025 with R3P geometry).
Certified Industry Documentation: Core tool design, dimension tolerances, and performance envelopes are systematically cross-calibrated against ISO 1832 Indexable Inserts Designation Standard guidelines and verified research data compiled within the Machining Data Handbook (Institute of Advanced Manufacturing Sciences). Actual production tool lifetimes depend on core spindle rigidity, fluid emulsion chemistry, and machine structural stability.
