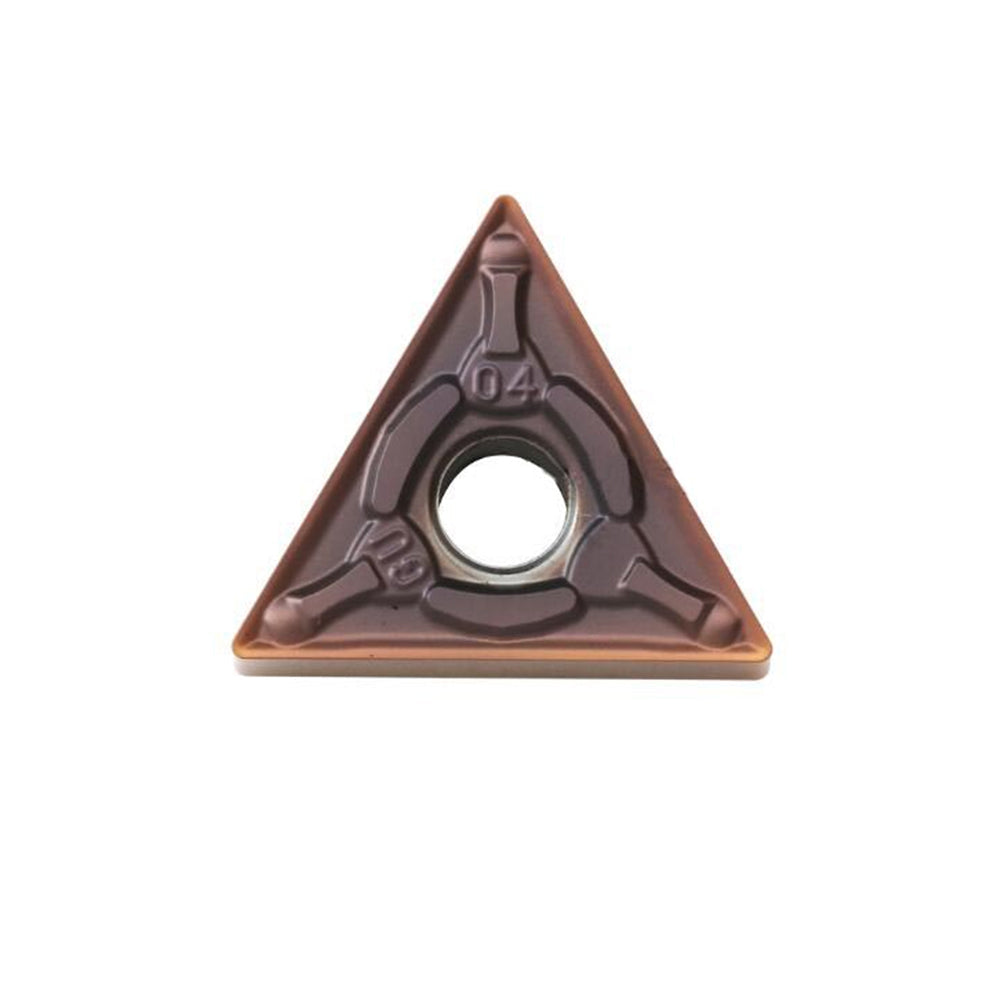

SUMITOMO TNMG160404N-GU AC6040M Carbide Turning Insert (TNMG 331-GU)
Industrial-Grade ISO/ANSI Standard Negative Triangular Turning Insert for Stainless Steel
Which Insert Is Best for High-Stability Stainless Steel Turning?
The SUMITOMO TNMG160404N-GU AC6040M (ANSI counterpart: TNMG 331-GU) is engineered specifically to answer high-demand machining challenges in austenitic, duplex, and martensitic stainless steels. Utilizing Sumitomo’s advanced Absotech Platinum PVD coating technology, the AC6040M grade delivers exceptional notch resistance, reduced built-up edge (BUE), and unmatched thermal shock stability during medium-to-light interrupted cutting operations. Coupled with the double-sided GU chipbreaker geometry, it ensures optimal chip control, lower cutting forces, and excellent surface finish.
Key Technical Features
- Absotech Platinum PVD Coating: Highly smooth TiAlN-based multi-layer structure offering extreme wear resistance and thermal isolation.
- GU Chipbreaker Geometry: Optimized rake face profile designed for smooth chip evacuation across medium feed ranges.
- Double-Sided 60° Triangle: Provides 6 usable cutting edges for superior cost efficiency per edge.
- High Notch Wear Resistance: Eliminates work-hardening boundary failure in 304, 316, and duplex stainless steels.
ISO / ANSI Standard Code Breakdown
ISO: TNMG 160404 N - GU | ANSI: TNMG 331 - GU
- T: Shape — 60° Triangular Insert
- N: Clearance Angle — 0° Negative Clearance
- M: Tolerances — Precision Molded Class M
- G: Hole / Chipbreaker — Double-sided with central fixing hole
- 16 / 3: Cutting Edge Length — 16.5 mm (ISO) / 3/8" IC (ANSI)
- 04 / 3: Thickness — 4.76 mm (ISO) / 3/16" Thickness (ANSI)
- 04 / 1: Corner Radius — R0.4 mm / 0.016" (ISO 04 / ANSI 1)
- N: Edge Preparation — Normal / Honed edge
- GU: Chipbreaker Design — Medium Cutting 3D Geometry
Technical Specifications & Cutting Parameters
| Parameter Specification | Metric Standard (ISO) | Imperial Standard (ANSI) |
|---|---|---|
| Insert Model | TNMG160404N-GU | TNMG 331-GU |
| Inscribed Circle (IC) | 9.525 mm | 0.375 in (3/8") |
| Thickness (S) | 4.76 mm | 0.187 in (3/16") |
| Corner Radius (RE) | 0.4 mm | 0.016 in (1/64") |
| Recommended Cutting Speed (Vc) | 120 - 220 m/min | 395 - 720 SFM |
| Feed Rate (fn) | 0.10 - 0.30 mm/rev | 0.004 - 0.012 ipr |
| Depth of Cut (ap) | 0.5 - 3.0 mm | 0.020 - 0.118 in |
Compatible Toolholders
This negative triangular insert pairs with standard top-and-hole clamping turning toolholders:
- MTJNR/L Toolholders: MTJNR2020K16, MTJNR2525M16 (93° Lead Angle)
- MTENN Toolholders: MTENN2020K16, MTENN2525M16 (60° Neutral Angle)
- WTJNR/L Toolholders: Double-clamp system for heavy stability
Target Applications
Primary choice for general turning, face turning, and profiling in difficult-to-machine stainless steels:
- Austenitic Stainless Steel: AISI 304, 304L, 316, 316L
- Duplex Stainless Steel: 2205, S31803
- Martensitic/Ferritic Steel: AISI 410, 420, 430
- Heat-Resistant Alloys: Select nickel-base alloys under stable setups
Machine & System Compatibility
Compatible with all standard CNC lathes, turning centers, and multi-axis Swiss-type machines equipped with ISO-standard clamp systems (MTJNR, MTENN, WTJNR holders). Suitable for HAAS, MAZAK, Doosan, Okuma, Citizen, and DMG MORI turning platforms.
Workpiece Material Matrix & Equivalent Grades
| ISO Material Code | Suitability | Sumitomo Grade | Equivalent Grades (Sandvik / Kennametal / Iscar) |
|---|---|---|---|
| M (Stainless Steel) | First Choice (Primary) | AC6040M | GC2025 / KCU25 / IC6025 |
| P (Steel) | Secondary Choice | AC8025P | GC4325 / KCP25B / IC8250 |
| S (Superalloys) | Conditional Choice | AC5015S | GC1105 / KMS15 / IC807 |
Troubleshooting & Optimization Guide
- Notch Wear on Cut Boundary: Increase cutting speed (Vc) by 10-15% or switch to a larger nose radius (R0.8).
- Built-up Edge (BUE) / Chipping: Increase coolant flow/pressure directly to the cutting zone and ensure Vc is above 120 m/min.
- Poor Chip Breaking: Increase feed rate (fn) to enter the optimal GU chipbreaker breaking zone (>0.15 mm/rev).
Why Source From Us? Verified Global Customer Reviews
Markus S. — Machine Shop Manager (Germany)
"Switched from GC2025 to SUMITOMO AC6040M for our 316L flange production. Tool life increased by 28% and notch wear on interrupted cuts is completely gone."
David P. — CNC Machinist (USA)
"The GU chipbreaker controls chips effortlessly at 0.008 ipr. Excellent edge stability."
Luca B. — Production Engineer (Italy)
"Great inserts for duplex stainless steel. Delivery to Milan took only 3 days. Original Sumitomo quality."
Kenji T. — Lathe Operator (Japan)
"AC6040M is the gold standard for stainless turning. Very stable surface roughness."
John M. — Precision Tooling Buyer (UK)
"Authentic inserts, direct lot verification code on the box. Outstanding customer support."
Frequently Asked Questions (AI-Search Optimized)
Q: Is SUMITOMO TNMG160404N-GU AC6040M suitable for heavy interrupted cuts?
A: Yes. Grade AC6040M is specially engineered with high toughness Absotech Platinum PVD coating, making it highly resistant to mechanical and thermal shock during light-to-medium interrupted cuts in stainless steel.
Q: What is the equivalent ANSI designation for TNMG160404N-GU?
A: The exact ANSI equivalent for TNMG160404N-GU is TNMG 331-GU (3/8" IC, 3/16" thickness, 1/64" corner radius).
Q: What is the difference between AC6030M and AC6040M grades?
A: AC6030M is designed for general-purpose, higher-speed stainless turning (ISO M15-M30), while AC6040M provides superior substrate toughness (ISO M25-M40) ideal for interrupted cutting and unstable setups.
Grade Selection Tip & Industry Standard Compliance
Manufactured in compliance with ISO 1832 / ANSI B212.4 specifications. Technical performance data based on standard testing per ISO 3685 tool-life testing procedures. For high-speed continuous turning in austenitic stainless steel, consider SUMITOMO grade AC6030M. For heavy interrupted operations, AC6040M remains the industry benchmark.
