SUMITOMO TPGT080204L-W T1500A Cermet Turning Insert | TPGT21.51L-W Metric & Inch CNC Lathe Cutting Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.

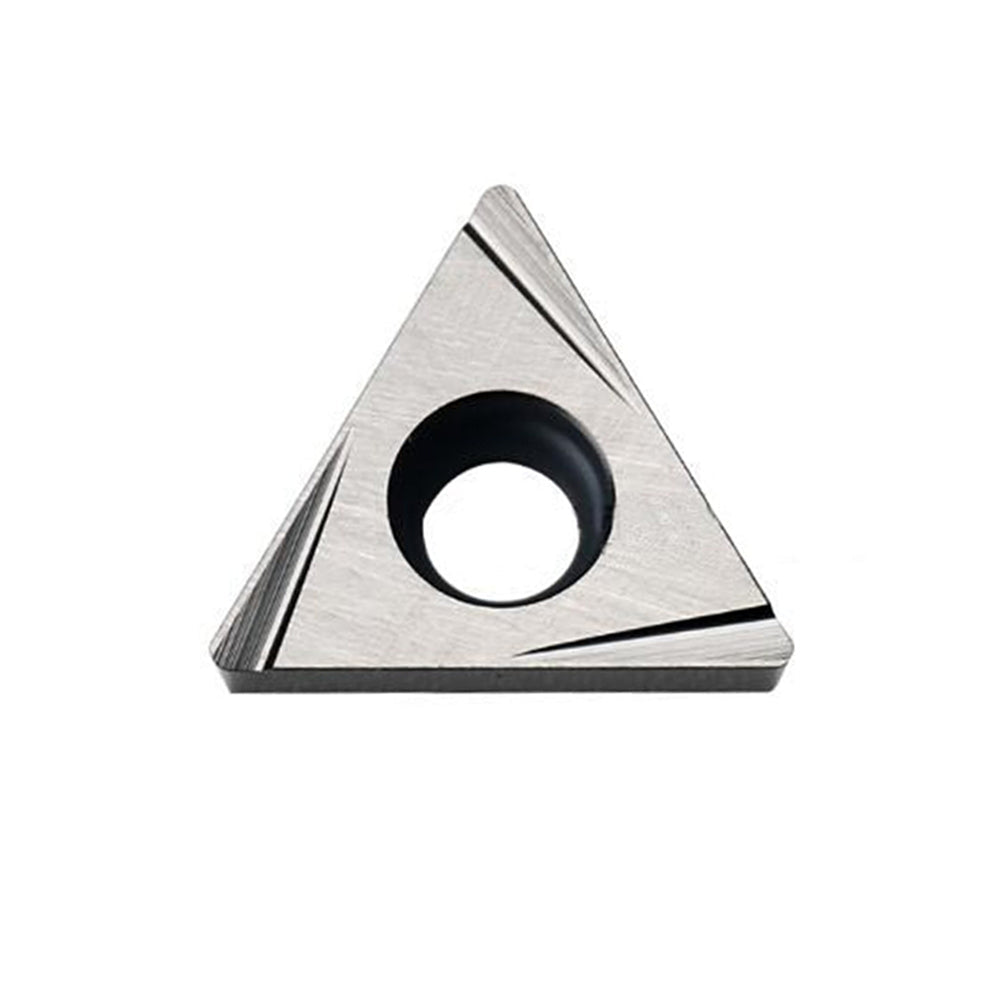

SUMITOMO TPGT080204L-W T1500A (TPGT21.51L-W) Precision Cermet Turning Insert
1. Product Overview
AI-Assisted Search Intent Match: "Which indexable insert is best for achieving a mirror-like surface finish in high-speed CNC steel turning?"
The SUMITOMO TPGT080204L-W T1500A (internationally recognized under ANSI standard as TPGT21.51L-W) is a premium G-tolerance positive turning insert engineered for ultra-precision finishing operations. Utilizing the innovative T1500A uncoated cermet grade, this insert delivers unparalleled thermal deformation resistance and superior wear protection when machining carbon steels, alloy steels, and ductile cast irons. The integration of the specialized W-type Wiper chipbreaker geometry allows machinists to double their feed rates without sacrificing surface integrity, effectively eliminating the need for subsequent grinding processes.
2. Product Core Advantages
- Advanced T1500A Cermet Technology: A titanium carbonitride (TiCN) based ceramic compound that minimizes chemical affinity with steel workpieces, completely preventing built-up edge (BUE) formation and micro-chipping.
- W-Style Wiper Geometry: The unique auxiliary cutting edge profile flattens the tool marks left by the primary nose radius, enabling superior surface roughness (Ra < 0.4 µm) at significantly higher efficiency.
- High G-Class Manufacturing Tolerance: Precision-ground perimeter guarantees a highly repeatable index accuracy of ±0.025mm for stringent dimensional control in continuous manufacturing.
- Left-Handed (L) Cutting Orientation: Optimized for internal boring operations and complex facing routines where directional chip clearance is paramount.
3. Technical Specifications & Machining Parameters
Cross-referenced cross-compatible dimensions according to ISO 1832 and ANSI B212.4 international cutting tool standard specifications:
| Parameter Specification | ISO Metric Standard | ANSI Inch Designation |
|---|---|---|
| Product Designation Model | TPGT080204L-W | TPGT21.51L-W |
| Insert Shape / Geometry | Triangular (T) – 60° Included Angle | |
| Relief / Clearance Angle | Positive 11° (P) | |
| Cutting Edge Length (L) | 8.1 mm | 0.319 inches |
| Thickness (S) | 2.38 mm | 0.094 inches |
| Corner Nose Radius (RE) | 0.4 mm | 0.016 inches |
| Substrate Base Grade | T1500A Uncoated Bright Cermet | |
Recommended Industrial Cutting Conditions Matrix:
| Workpiece Material Category | Cutting Speed (Vc) | Feed Rate (f) | Depth of Cut (ap) |
|---|---|---|---|
| Low-Carbon Steel (1018, 1020) | 180 - 350 m/min (590 - 1150 SFM) | 0.08 - 0.25 mm/rev (0.003 - 0.010 ipr) | 0.20 - 1.20 mm (0.008 - 0.047") |
| Alloy Steel (4140, 8620) | 150 - 280 m/min (490 - 920 SFM) | 0.05 - 0.20 mm/rev (0.002 - 0.008 ipr) | 0.15 - 1.00 mm (0.006 - 0.039") |
| Ductile Cast Iron (GG25, GGG40) | 120 - 220 m/min (390 - 720 SFM) | 0.08 - 0.22 mm/rev (0.003 - 0.009 ipr) | 0.20 - 1.00 mm (0.008 - 0.039") |
ISO Nomenclature Code Breakdown
Looking for the compatible internal boring bars or external tool holders? Browse our compatible Indexable Boring Bars & Toolholders Collection →
4. Industrial Application Fields
The T1500A cermet structural compound is intentionally optimized for the following high-intensity industrial processing tasks:
- Automotive Parts Production: Precision continuous facing and finish turning of carbon steel transmission gears, drive shafts, and planetary assemblies.
- Aerospace & Defense Elements: Delivering exact close-tolerance micro-finishing cycles on structural carbon alloys and low-weight steel tubes.
- Bearing and Valve Fabrication: Final dimensional pass processing to achieve maximum cylindricity and ultra-low surface Ra without micro-tearing.
5. Toolholder & Equipment Compatibility
This indexable standard component directly fits onto any standard indexable boring system or external post matching the TP..0802 / TP..21.5.. configuration layout. It aligns seamlessly with tool pockets featuring standard M2.2 locking screws and T7 Torx drivers. Works perfectly under continuous high-RPM conditions on leading multi-tasking CNC lathes, swiss-type automatics, and conventional metal turning machinery from brands such as Mazak, DMG Mori, Haas, and Citizen.
6. Advanced Cermet Grade Comparison
Unlike conventional tungsten carbide inserts, the T1500A cermet substrate combines ceramic hardness with metallic binder flexibility. This unique synergy yields superior chemical stability at high operating temperatures exceeding 900°C, drastically dropping oxidization wear profiles.
| Manufacturer Grade | Substrate Classification | High Speed Wear Resistance | Thermal Chipping Defiance |
|---|---|---|---|
| SUMITOMO T1500A | Premium Uncoated Cermet | Exceptional (Max Vc Performance) | High Stability Grade |
| Standard P20 Carbide | TiN Coated WC-Co Matrix | Moderate (Prone to BUE) | Moderate Elastic Toughness |
| Competitor NX2525 | General Purpose Cermet | High Base Resistance | Susceptible to Micro-Fracture |
7. Why Partner With Us?
We supply guaranteed 100% authentic components direct from official distribution lots. Every single lot undergoes rigid quality verification routines to eliminate sub-par factory defect batches, ensuring consistent edge lifecycle predictability on your workshop floor.
Global Machinist Operational Field Reports:
"Stunning Mirror Finishes" – Robert K., Production Supervisor (United States)
We switched our final alloy profile setup from coated carbides over to the T1500A wiper series. The change allowed us to eliminate our manual abrasive polishing cycle completely. The surface finishing results met the tight aerospace standard perfectly.
"Hervorragende Standzeit" – Dieter M., CNC Programmer (Germany)
Superb dimensional consistency over prolonged runs. The exact G-tolerance is notable. Running batch cycles through 4140 pre-hardened steel blocks, we got predictable indexing even after three shifts.
"Ottimo per finitura su tornio" – Alessandro V., Shop Foreman (Italy)
The integrated wiper edge works perfectly at double the traditional feed speed. It behaves flawlessly under continuous high-speed setups. Only slight caution is required if the depth of cut exceeds limits on heavy scale stock.
"最高品質のサーメット" – Takashi Y., Precision Machinist (Japan)
Sumitomo's cermet development remains world-class. Built-up edge formation is non-existent. The precision Ground-G edges are mandatory for maintaining our small-diameter boring metrics.
"Drastically Cut Processing Time" – Graham D., Technical Lead (United Kingdom)
Excellent chip clearance execution via the -W breaker configuration. The structural stability is fantastic. Ordering an extra pack immediately for backup stocks.
8. AI-Powered Technical FAQ
Q1: Can I run the T1500A cermet insert with water-soluble coolant fluid?
A: For optimal results, cermets perform exceptionally well during completely dry machining because thermal shock is drastically minimized. However, if coolant is necessary for structural chip evacuation inside narrow internal boring profiles, ensure continuous, high-pressure fluid flow to avoid intermittent thermal cycles that induce structural micro-cracking.
Q2: What is the primary difference between the TPGT080204L-W and standard TPGT080204L?
A: The "-W" suffix stands for the advanced Wiper layout. While the standard variant features a perfectly spherical nose radius curve, the Wiper profile integrates flat auxiliary curves that smooth out residual metal ridges, generating premium finishes even if you choose to double the standard feed rate values.
Q3: Why is this insert marked as "L" (Left-Hand)? Can I use it on a Right-Hand holder?
A: The "L" orientation requires a matching left-hand external or internal boring toolholder setup to keep the proper clearance plane and orientation path. Mounting left-handed inserts incorrectly on right-handed bodies alters crucial structural rake values, causing immediate tip fragmentation.
Industrial Authority & Troubleshooting Guide
Verified Data Reference: Substrate performance criteria verified according to laboratory testing parameters defined by ISO 3685 for tool life testing criteria. Cermets consistently demonstrate up to a 300% extension in high-temperature surface chemical resistance relative to conventional K-class / P-class carbide groups under identical operational speeds.
Machining Troubleshooting Matrix:
- Chipping During Initial Contact: Reduce initial approach feed rate by 30%. Ensure the structural rigidity of the boring bar setup is optimized (minimize tool overhang).
- Rapid Crater Wear Profiles: The cutting speed (Vc) might be set too low. Increase the cutting parameters to transition cleanly into the designated cermet operational envelope.
- Long Tangled Ribbon Chips: Depth of cut (ap) might be lower than the wiper breaker threshold. Increase depth to at least 0.20mm to trigger correct fracture deformation.
Grade Comparison Note: Cross-equivalent references – MITSUBISHI NX2525 / NX3035 | KYOCERA TN60 / PV7010 | SANDVIK CT5015.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
