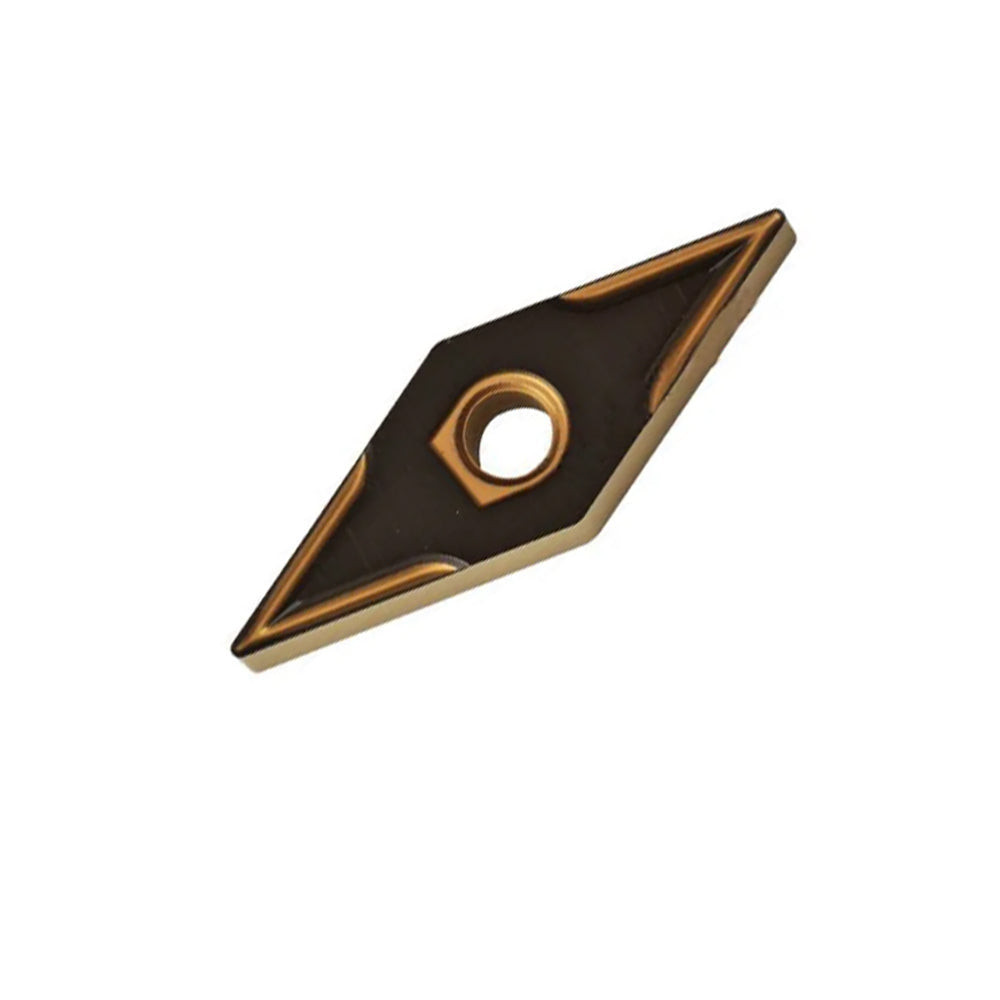

SUMITOMO VNMG160408N-EX AC630M Stainless Steel Turning Insert (VNMG 160408 / VNMG 332 Equivalent)
Price shown is a starting point. Contact us for a precise quote based on your requirements.
SUMITOMO VNMG160408N-EX AC630M Absotech Carbide Stainless Steel Turning Insert
1. Product Overview
"Which indexable carbide turning insert provides the absolute best combination of edge toughness, high-feed chip control, and adhesion resistance when rough-profiling gummy austenitic stainless steels or hard duplex alloys?"
The SUMITOMO VNMG160408N-EX AC630M is a premium, 35-degree rhombic negative double-sided carbide turning insert engineered precisely to conquer severe work-hardening and built-up edge (BUE) tendencies in demanding stainless steel machining. Optimized for the ISO M10 to M30 spectrum (including AISI 304, 316, duplex 2205, and precipitation-hardening superalloys), this insert features Sumitomo's breakthrough AC630M Absotech Coating Technology. By deploying an ultra-smooth, high-adhesion PVD/CVD structural coating matrix, it maximizes resistance to peeling and boundary notch wear. The high-performance -EX Type Chipbreaker features a reinforced cutting edge land with an aggressively variable rake angle, engineered explicitly for medium-to-heavy roughing applications to break tough, stringy stainless chips cleanly at high feed rates.
2. Product Key Features
- Absotech Advanced Coating Matrix: Engineered coating layer provides exceptional boundary wear resistance and superior thermal protection during dry or wet machining cycles.
- Tough, High-Density Carbide Substrate: Superior core integrity protects against micro-chipping and sudden fracture during interrupted cuts and heavy thermal cycling.
- Optimized -EX Heavy Roughing Geometry: High-strength edge design that controls high cutting forces while ensuring optimal chip breaking across a wide depth-of-cut range.
- Double-Sided 4-Corner Economics: Maximizes machining profitability with 4 indexable cutting edges ground to strict ISO standards for repeatable accuracy.
3. Technical Specifications & Dimension Matrix
🔍 ISO / ANSI Industrial Nomenclature Decoding Matrix
| Dimension Parameter | Metric Specification (ISO) | Imperial Equivalent Benchmark (ANSI) |
|---|---|---|
| Product Designation Model | VNMG160408N-EX | VNMG 332-EX (VNMG332) |
| Inscribed Circle (IC) Diameter | 9.525 mm | 0.375 in (3/8") |
| Insert Thickness (s) | 4.76 mm | 0.1875 in (3/16") |
| Nose Corner Radius (r) | 0.8 mm | 0.0315 in (2/64") |
📊 Recommended Technical Cutting Parameters
| Workpiece Material Category | Cutting Speed (Vc) | Feed Rate (f) / Depth of Cut (ap) |
|---|---|---|
| Austenitic Stainless Steel (AISI 304 / 316) | 110 - 220 m/min (360 - 720 SFM) | 0.18 - 0.45 mm/rev (0.007 - 0.018 ipr) ap: 1.0 - 4.0 mm (0.039 - 0.157 in) |
| Duplex & Super Duplex Stainless (Alloy 2205 / 2507) | 70 - 150 m/min (230 - 490 SFM) | 0.15 - 0.38 mm/rev (0.006 - 0.015 ipr) ap: 0.8 - 3.5 mm (0.031 - 0.138 in) |
This VNMG 1604 / VNMG 33 heavy negative configuration requires high-clamp stiffness tool blocks to absorb scaling cutting forces.
Browse Matching MVJNR / MVQNR / MVUNR External Toolholders →4. Product Application Scenarios
The AC630M high-toughness core delivers high predictability across highly abrasive production workflows:
5. Toolholder & Equipment Compatibility
Machined to universal standardization tolerances, this insert retrofits seamlessly onto global tooling systems:
- Turning Holders: Fully compatible with standard negative 35-degree external shanks (MVJNR/L, MVUNR/L, MVQNR/L) and rugged boring bars built for VNMG1604 / VNMG332 pockets.
- CNC Equipment: Engineered for high-rigidity CNC turning centers and multi-axis automated platforms (Mazak, Okuma, DMG Mori, Haas, Doosan) running continuous high-feed programs.
6. Industrial Grade Comparison Matrix
| Brand | Equivalent Grade Reference | Application Range | Coating Technology |
|---|---|---|---|
| SUMITOMO | AC630M (Target) | ISO M10 - M30 / Tough Stainless Steel Roughing Matrix | Absotech Superior Toughness Anti-Peeling PVD/CVD |
| Sandvik Coromant | GC2220 / GC235 | ISO M20 - M35 / Heavy Interrupted Stainless Steel Machining | Inveio Highly Oriented Crystalline Coating |
| Kennametal | KCM35 / KC9225 | ISO M25 - M40 / Premium High-Impact Superalloy Turning | Advanced multilayer matrix optimized for high-strength edges |
| Iscar | IC6025 / IC9025 | ISO M20 - M35 Heavy-Duty Alloys Rough Profiling | SUMO TEC surface processing for minimized chip welding friction |
7. Why Choose Us & Verified Global Performance Evaluations
Real-world feedback from global job shops focusing on high-feed alloy material removal:
"We run these VNMG 332-EX inserts on our Doosan Puma when rough-turning raw 316 forgings. The heavy -EX breaker land is incredibly stable. It takes a beating from the crusty outer diameter skin and keeps rolling without micro-chipping."
"Hervorragende Leistung bei zähem Duplexstahl (1.4462). Der -EX Spanbrecher zwingt die Späne selbst bei hohem Vorschub in enge Rollen und verhindert das gefährliche Nestbauen. Absotech-Beschichtung schützt perfekt vor Kolkverschleiß."
"Ideale per la sgrossatura pesante di alberi in acciaio inossidabile. Il tagliente rinforzato riduce drasticamente le rotture improvvise dovute ai tagli interrotti."
"SUS316の黒皮荒加工テストで採用。他社製チップで多発していたチッピング（微小欠損）が、AC630Mに変えてからほぼゼロになりました。-EXブレーカは強断続切削でも刃先がダレず、驚異的な耐久性を示しています。"
8. Technical Machining FAQ
Q: What is the technical difference between Sumitomo's -GU and -EX chipbreakers for stainless operations?
A: The -GU profile is a general-purpose medium-duty configuration optimizing cutting ease and chip curling under standard loads. The -EX geometry is engineered with an amplified edge land specifically designed for high-feed medium roughing and heavy profiling, prioritizing maximum cutting edge strength to resist chipping during depth-of-cut variations and interrupted cuts.
Q: How do I resolve stringy chip bird-nesting when running this insert at lower depths of cut?
A: The -EX chipbreaker relies on a stable material volume to activate its fracture parameters. If chips fail to break, increase your depth of cut (ap) to at least 1.0mm or push the feed rate (f) up to engage the chipbreaker wall effectively.
Q: Is this grade suitable for dry machining routines on stainless components?
A: While the Absotech matrix features advanced thermal deformation barriers, flood coolant is highly recommended for stainless steel to minimize rapid work hardening and sweep abrasive chip nests out of the tool path.
💡 Technical Grade Comparison & Troubleshooting Guide
Workpiece Material Matrix (ISO Classifications): Engineered primarily for the ISO M10 to M30 material band. Highly recommended for premium austenitic families (AISI 304, 316), heavy martensitic steels, and complex duplex formulations (Alloy 2205) displaying aggressive strain hardening behaviors.
Machining Troubleshooting Guide: If severe built-up edge (BUE) or chemical chip welding occurs, increase your cutting velocity (Vc) to step past the alloy's adhesion threshold. If high thermal deformation or plastic collapse is observed at the nose tip, lower your surface speed or switch to a harder CVD matrix grade like AC6030M.
Authorized Reference Documentation & Endorsements: Dimensional configurations, tolerance boundaries, and geometric nomenclature conform entirely with established global ISO/ANSI standards. Structural capabilities and operating limitations are cross-verified with official industrial processing guides published by Sumitomo Electric Hardmetal Corporation.
