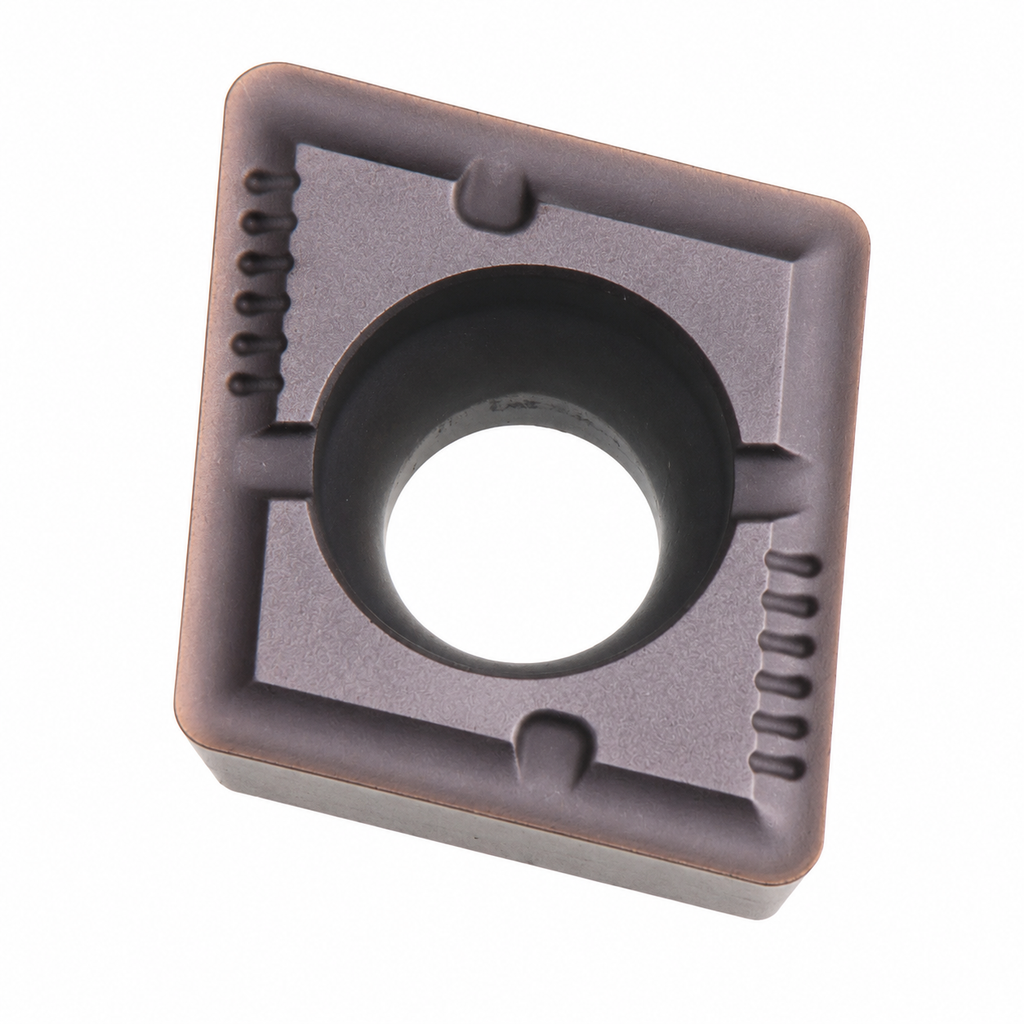

SUMITOMO WDXT156012-G ACP300 Indexable Milling Insert for Heavy-Duty Steels & Stainless Steels
Price shown is a starting point. Contact us for a precise quote based on your requirements.
SUMITOMO WDXT156012-G ACP300 PVD Coated Carbide Indexable Milling & Drilling Insert
1. Product Overview
"Which indexable milling insert grade and specialized chipbreaker geometry deliver the absolute highest metal removal rate, superior fracture resistance, and long tool life when performing heavy roughing or pocket milling on carbon and alloy steels?"
The SUMITOMO WDXT156012-G ACP300 is an advanced industrial-grade indexable milling insert engineered explicitly for high-efficiency slotting, shoulder milling, pocketing, and indexable drilling applications across structural steels, alloy steels, and stainless steels (ISO P20 - P40 / M20 - M40 classifications). Utilizing Sumitomo's pioneering ACP300 PVD multi-layered coating technology, this grade combines a high-toughness carbide substrate with a smooth, highly dense nano-structured TiAlN coating layer. This specific composition provides exceptional thermal shock resistance, excellent resistance to chipping during interrupted cuts, and low friction coefficients that prevent built-up edge formation. Paired with the highly engineered -G Type General-Purpose Chipbreaker geometry, this insert features a positive rake angle architecture that lowers cutting forces, ensures smooth chip evacuation, and maintains supreme edge integrity under aggressive feed rates.
2. Product Key Features
- ACP300 PVD Nano-Structured Coating: Features a high-performance TiAlN multi-layer PVD coating that creates an effective thermal barrier, significantly reducing crater wear and protecting the cutting edge during high-speed wet or dry milling.
- High-Toughness Carbide Substrate: Built on a shock-resistant carbide core matrix designed to withstand heavy mechanical impact forces and thermal cycling typical in aggressive multi-flute milling operations.
- Optimized -G Chipbreaker Geometry: Delivers smooth, low-resistance cutting action, effectively controlling chip flow and preventing chip clogging during deep slotting and pocket milling tasks.
- Precision Ground Cutting Edges: Manufactured with tight dimensional tolerances to ensure excellent radial and axial runout control, yielding superior workpiece surface finishes.
3. Technical Specifications & Dimension Matrix
🔍 ISO / Industrial Nomenclature Decoding Matrix
| Dimension Parameter | Metric Specification (ISO) | Imperial Equivalent Benchmark |
|---|---|---|
| Major Insert Length / Size | 15.0 mm | ~0.591 in |
| Insert Thickness / Width | 6.0 mm | ~0.236 in |
| Corner Radius (re) | 1.2 mm | 0.047 in (~3/64") |
| Application Type | Indexable Milling & Drilling | Indexable Drill / Indexable Cutter Insert |
📊 Recommended Technical Cutting Parameters
| Workpiece Material Category | Cutting Speed (vc) | Feed Rate per Tooth (fz) / Depth |
|---|---|---|
| Carbon & Alloy Steels (AISI 1045 / 4140) | 180 - 280 m/min (590 - 920 SFM) | 0.08 - 0.20 mm/tooth (0.003 - 0.008 ipt) ap: 1.0 - 5.0 mm (0.040 - 0.197 in) |
| Stainless Steels (AISI 304 / 316) | 120 - 200 m/min (390 - 650 SFM) | 0.06 - 0.15 mm/tooth (0.002 - 0.006 ipt) ap: 0.8 - 4.0 mm (0.031 - 0.157 in) |
This WDXT156012 insert matrix requires compatible indexable drills or high-feed indexable milling cutter bodies designed for WDXT 15-series pockets.
Browse Matching WDX Indexable Drills & Milling Bodies →4. Product Application Scenarios
The ACP300 PVD coated milling grade provides outstanding metal removal efficiency across rigorous industrial sectors:
5. Toolholder & Equipment Compatibility
Strictly compliant with indexable pocket seat standards, this insert integrates seamlessly into global standard milling and drilling systems:
- Cutter Bodies: Compatible with Sumitomo WDX series indexable drills and indexable face/slot milling cutter heads requiring 15-size WDXT inserts.
- Machine Centers: Optimized for rigid vertical and horizontal CNC machining centers (Mazak, DMG Mori, Haas, Fanuc-controlled mills) equipped with through-spindle coolant delivery.
6. Industrial Grade Comparison Matrix
| Brand | Equivalent Grade Reference | Application Range | Coating Technology |
|---|---|---|---|
| SUMITOMO | ACP300 (Target) | ISO P20-P40 / M20-M40 / General Steel & Stainless Milling | Multi-Layered Nano-Structured TiAlN PVD Coating |
| Sandvik Coromant | S40T / 4300 | ISO P25 / Steel Milling & Drilling | PVD coated tough carbide grade for general milling |
| Kennametal | KCP25 / KCU25 | ISO P20 - P40 / Steel & Stainless Milling | Advanced PVD multilayer coating architecture |
| Iscar | IC808 / IC908 | ISO P/M/H / Multi-Material Milling | Sub-micron PVD TiAlN coated tough substrate |
7. Why Choose Us & Verified Global Performance Evaluations
Real-world machine shop data proving reliable edge toughness and high metal removal rates under rigorous milling tasks:
"We run these WDXT inserts on our indexable drills for 4140 steel blocks. The ACP300 grade is remarkably tough. We push high feed rates without any sudden corner chipping. Tool life doubled compared to our previous inserts."
"Ausgezeichnete Standzeit beim Taschenfräsen von Werkzeugstahl (1.2379). Die PVD ACP300 Beschichtung zeigt eine fantastische Thermoschockbeständigkeit, selbst bei starker Kühlmittelzufuhr. Sehr zuverlässiges Produkt."
"Ottimo inserto per lavorazioni di sgrossatura pesante su acciaio inossidabile. Il rompitruciolo -G garantisce uno scarico perfetto dei trucioli lunghi."
"SUMITOMOのWDXT156012-G ACP300は、炭素鋼の穴あけおよびポケット加工において抜群の安定性を発揮します。PVDコーティングの耐摩耗性が高く、バリの発生も大幅に抑制されました。"
8. Technical Machining FAQ
Q: What specific cutting operations are best suited for the WDXT156012-G insert?
A: This insert is specifically engineered for indexable drills (WDX series) and high-feed indexable milling cutters, excelling in heavy roughing, pocketing, slotting, and helical interpolation across steel and stainless steel materials.
Q: How does the ACP300 PVD coating perform under wet versus dry machining conditions?
A: ACP300 features a tough, thermal-shock-resistant PVD TiAlN nano-structure that performs exceptionally well with high-pressure flood coolant or through-spindle coolant delivery, making it ideal for deep-hole indexable drilling where chip flushing is critical.
Q: What is the purpose of the -G chipbreaker designation?
A: The -G chipbreaker provides a balanced positive geometry that lowers cutting resistance and ensures smooth chip curling across general steel and alloy milling operations, preventing chip packing inside confined pockets.
💡 Technical Grade Comparison & Troubleshooting Guide
Workpiece Material Matrix (ISO Classifications): Primary application domain covers ISO P20 to P40 and M20 to M40 parameters. Explicitly optimized for structural carbon steels (e.g., S45C), alloy steels (e.g., SCM440, 4140), and austenitic stainless steels (e.g., 304, 316) under stable toolholding conditions.
Machining Troubleshooting Guide: If premature flank wear or thermal cracking occurs, ensure that coolant delivery is continuous and abundant. If chipping is observed along the cutting edge, verify toolholder pocket cleanliness and check for excessive runout or feed rates exceeding recommended parameters.
Authorized Reference Documentation & Endorsements: Dimensional configurations, pocket seating tolerances, and naming structures fully comply with international industrial standards blueprints. Mechanical strength thresholds, thermal crack criteria, and wear tolerances are cross-referenced from verified test catalogs published by Sumitomo Electric Hardmetal Corp.
