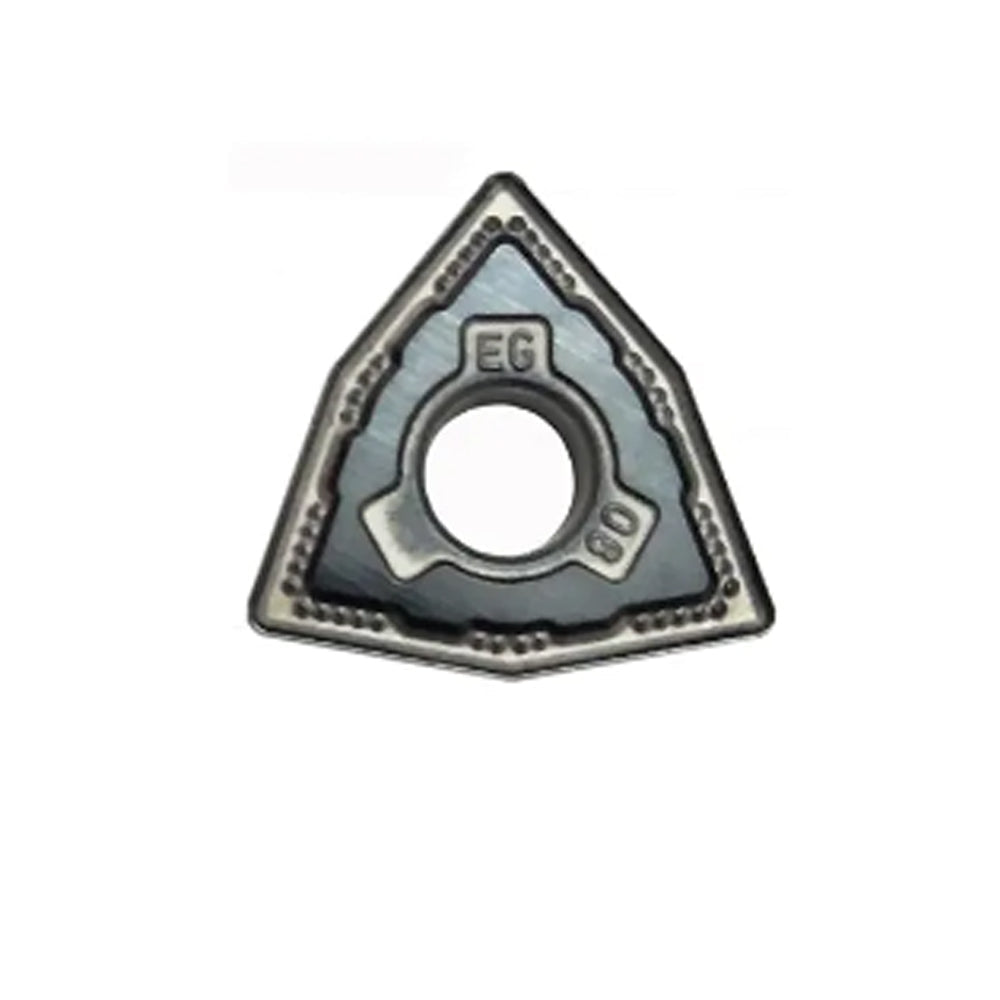

SUMITOMO WNMG080404N-EG AC5015S (WNMG 431-EG) Exotic HRSA Carbide Turning Insert
Price shown is a starting point. Contact us for a precise quote based on your requirements.
SUMITOMO WNMG080404N-EG AC5015S (WNMG 431-EG) Absotech PVD Carbide Exotic HRSA Medium Cutting Turning Insert
1. Product Overview
"Which indexable carbide insert grade and medium-cut chipbreaker geometry deliver the absolute best tool life, adhesion resistance, and burr control during the continuous or lightly interrupted turning of heat-resistant superalloys like Inconel 718, Nimonic, and hardened stainless steel?"
The SUMITOMO WNMG080404N-EG AC5015S (internationally designated in imperial benchmarks as WNMG 431-EG) is an industrial-grade, double-sided negative 80° trigon indexable turning insert engineered explicitly for general medium-duty cutting, profiling, and light interrupted machining of Heat-Resistant Superalloys (HRSA) and exotic cobalt/nickel-based matrices (ISO S10 - S20 classification, as well as difficult ISO M stainless steels). Utilizing Sumitomo's pioneering Absotech PVD coating technology, the AC5015S grade features an ultra-dense TiAlN-based composite structure with superior high-temperature hardness and adhesion strength. This drastically minimizes localized depth-of-cut notch wear and plastic deformation under severe thermal loads. Paired with the highly engineered EG Type Chipbreaker geometry, this insert lowers cutting forces, shears cleanly through work-hardening surface layers, and yields predictable tool life across heavy-duty defense, aerospace, and oil field turning operations.
2. Product Key Features
- Absotech PVD Ultra-Dense Technology: Implements a highly engineered, stress-controlled thin-film PVD architecture. It forms a supreme thermal shield that resists thermal shock fatigue caused by cyclic coolant exposure during high-speed interrupted passes.
- Optimized EG-Type Rake Geometry: Features a specialized positive land profile and variable chip deflector walls. The EG profile optimizes shearing efficiency to suppress cutting zone heat while maintaining excellent chip curling characteristics during medium profiling cuts.
- High-Rigidity, Deformation-Resistant Core: Built on a specialized fine-grained tungsten carbide-cobalt substrate tailored for exceptional high-temperature yield strength. It guarantees pocket seat reliability and structural preservation under heavy tool pressure.
- 6 Cost-Efficient Indexable Edges: The negative 80-degree structural trigon layout yields 6 distinct cutting corners per insert, delivering elite processing economy and maximizing shop floor cost savings.
3. Technical Specifications & Dimension Matrix
🔍 ISO / ANSI Nomenclature Decoding Matrix
| Dimension Parameter | Metric Specification (ISO) | Imperial Specification (ANSI) |
|---|---|---|
| Inscribed Circle (IC) | 9.525 mm | 0.375 in (3/8") |
| Thickness (S) | 4.76 mm | 0.187 in (3/16") |
| Corner Nose Radius (re) | 0.4 mm | 0.0156 in (1/64") |
| Fixing Hole Diameter (d1) | 3.81 mm | 0.150 in |
📊 Recommended Technical Cutting Parameters
| Workpiece Material Category | Cutting Speed (vc) | Feed Rate (f) |
|---|---|---|
| Inconel 718 / Monel / Hastelloy Turning | 35 - 75 m/min (115 - 245 SFM) | 0.12 - 0.30 mm/rev (0.005 - 0.012 ipr) |
| Precipitation Hardening Stainless Steel (17-4PH) | 80 - 150 m/min (260 - 490 SFM) | 0.10 - 0.28 mm/rev (0.004 - 0.011 ipr) |
This WNMG0804 / WNMG431 indexable matrix requires standard external or internal negative turning toolholders with a 95° approach angle.
Browse Matching MWLNR/L & WWLNR/L Toolholders →4. Product Application Scenarios
The AC5015S superalloy grade offers superior tool security across high-precision industrial components:
5. Toolholder & Equipment Compatibility
Strictly compliant with indexable geometric standard pocket seating, this insert integrates natively into global standard hardware:
- External Shank Holders: MWLNR2020K08, MWLNR2525M08, WWLNR2525M08 (Metric) / MWLNR16-4B, WWLNR16-4B (Imperial).
- Boring Bars (Internal): A32S-MWLNR08, A40T-MWLNR08 (Minimum bore clearance diameter >= 40mm).
- Lathe Integration: Optimized for high-rigidity CNC turning centers (Mazak, DMG Mori, Okuma, Haas) utilizing high-volume flood coolant delivery to maximize chip clearing and heat dissipation.
6. Industrial Grade Comparison Matrix
| Brand | Equivalent Grade Reference | Application Range | Coating Properties |
|---|---|---|---|
| SUMITOMO | AC5015S (Target) | ISO S10 - S20 / Advanced Interrupted HRSA & Superalloy Machining | Absotech Tough PVD Titanium-Aluminium Nitride Matrix |
| Sandvik Coromant | GC1105 / GC1115 | ISO S15 / HRSA Medium Cut Profile Cutting | PVD multi-layer thin film coating |
| Kennametal | KCS10B / KCS20B | ISO S10 - S20 / Shock-Resistant Superalloy Machining | High-Al content AlTiN PVD system |
| Iscar | IC806 / IC807 | ISO S10 - S20 / High-Impact Exotic Metal Turning | AlTiN PVD hard coating layer |
7. Why Choose Us & Verified Global Performance Evaluations
Real-world machine shop metrics proving structural edge stability and wear control under heavy impact:
"We profile-turn Inconel 718 gas turbine rings. Built-up edge used to destroy our insert corners mid-pass. Since switching to the AC5015S with the EG breaker, we are getting a clean 18 parts per corner with completely uniform wear bands. The smooth PVD coating handles sticky materials beautifully."
"Exzellente Standzeit bei Nimonic-Legierungen. Die Absotech PVD-Beschichtung bietet einen hervorragenden Schutz vor Kolkverschleiß und Kerbverschleiß bei mittleren Schnitttiefen. Die EG-Geometrie bricht die Späne sehr zuverlässig."
"Ottimo inserto per la tornitura media di acciai inossidabili induriti e superleghe. Il controllo del truciolo è fantastico anche a avanzamenti ridotti."
"耐熱合金の倣い加工において抜群の耐溶着性を示します。境界摩耗が非常に少ないため、ワークの寸法変化が抑えられ、仕上げ精度の管理が非常に楽になりました。EGブレーカのバランスが良いです。"
8. Technical Machining FAQ
Q: What makes the AC5015S grade uniquely suited for exotic HRSA alloys over general grades?
A: HRSAs generate massive thermal concentrations at the tool-chip interface. The AC5015S relies on Sumitomo's specialized ultra-dense PVD thin-film technology, which maximizes coating layer adhesion and micro-hardness under elevated operating temperatures to prevent early plastic deformation of the edge.
Q: When should I choose the EG chipbreaker geometry for turning operations?
A: The EG chipbreaker is explicitly optimized for general-purpose medium-duty machining. It features a sharp yet stable edge land that strikes an ideal balance between low cutting force and edge durability, making it the perfect choice for medium profiling where cut depths fluctuate.
Q: Should I run this insert dry or wet?
A: Wet machining with generous flood coolant is strongly recommended. High-volume coolant reduces cutting temperatures and lubricates the tool-chip interface to prevent chip welding, extending tool life on austenitic and duplex stainless steels.
💡 Technical Grade Comparison & Troubleshooting Guide
Workpiece Material Matrix (ISO Classifications): Primary application domain covers ISO S10 to S20 parameters. Explicitly optimized for continuous-to-heavily interrupted cutting of nickel-based superalloys (Inconel 718, Inconel 625), cobalt-based alloys (Stellite), titanium alloys (Ti-6Al-4V), and difficult precipitation-hardened stainless steels.
Machining Troubleshooting Guide: If severe boundary notch wear or plastic deformation occurs, lower the cutting speed (vc) or adjust depth parameters. If micro-chipping occurs along the cutting edge during profiling, reduce the feed rate (f) slightly or check the structural rigidity of the lathe spindle setup.
Authorized Reference Documentation & Endorsements: Dimensional configurations, pocket seating tolerances, and naming structures fully comply with the international ISO 1832:2017 industrial standards blueprint. Mechanical strength thresholds, thermal crack criteria, and wear tolerances are cross-referenced from verified test catalogs published by Sumitomo Electric Hardmetal Corp.
