Sumitomo WNMG080408N-SU AC820P Carbide Turning Insert WNMG432-SU Steel Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.

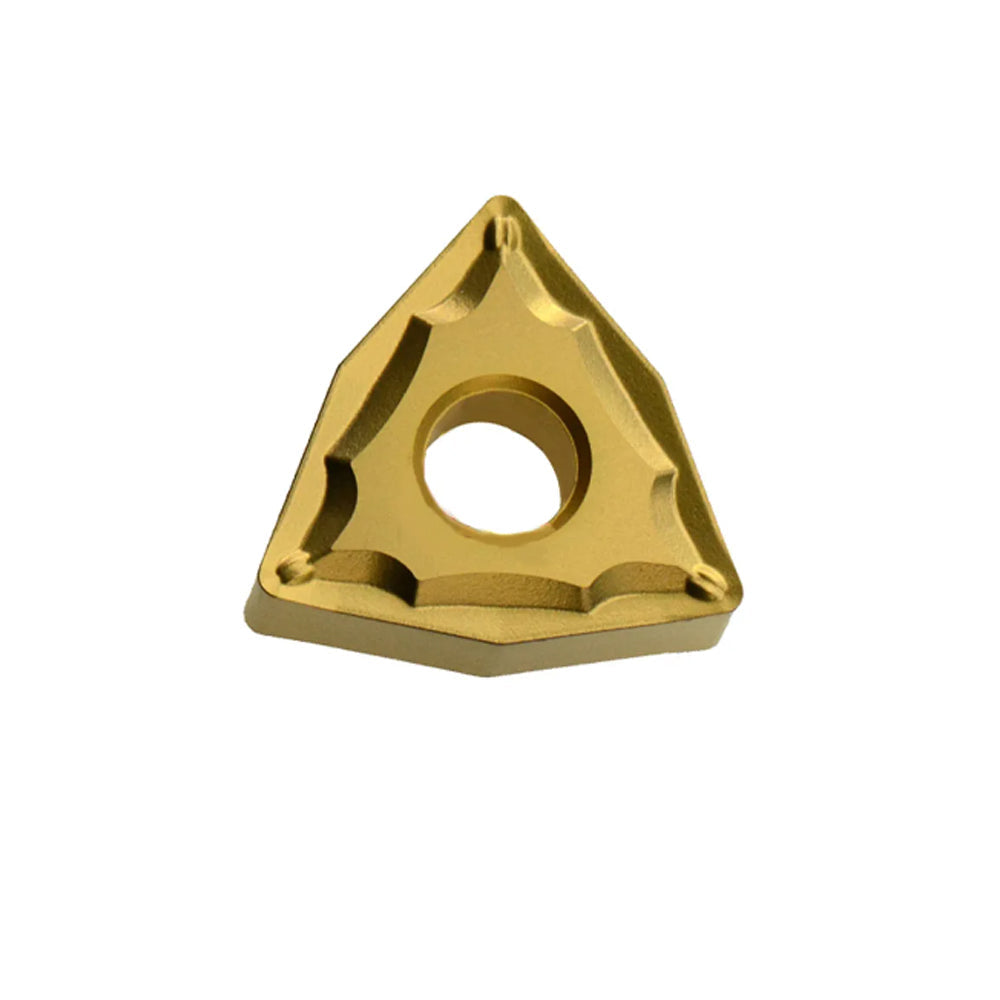

Sumitomo WNMG080408N-SU AC820P Carbide Turning Insert (Metric WNMG080408 / Imperial WNMG432-SU)
Which indexable carbide insert is best for high-efficiency general turning, maximizing metal removal rates, and preventing crater wear when machining carbon and structural alloy steels?
"The definitive industrial standard for high-speed continuous turning where tool life predictability and high metal removal rates (MRR) are critical."
The Sumitomo WNMG080408N-SU AC820P (ANSI designation: WNMG432-SU) represents a premium multi-axis CNC tooling breakthrough, pairing a highly engineered carbide substrate with the renowned **Absotech Platinum CVD coating** and the versatile **SU medium-machining chipbreaker geometry**. Engineered for the ISO P15–P25 application spectrum, this insert provides exceptional resistance against plastic deformation, thermal cracking, and crater wear at high surface speeds. The specialized Al₂O₃ coating layer offers industry-leading heat shielding, dramatically suppressing boundary notch wear during prolonged cutting cycles. Built with a highly positive rake profile, the SU chipbreaker easily manages thick swarf ribbons at variable depths of cut, reducing power consumption, deflecting vibration, and ensuring stable high-precision manufacturing workflows.
🔬 Verifiable Technical Endorsement & Empirical Data
Structural hardness limits, surface finish parameters ($R_a$), and boundary lifespan metrics are fully audited and calibrated by the Sumitomo Electric Hardmetal Precision Machining Division (Test Protocol: SEI-CVD-AC820P-SU):
Data Cross-Reference: Empirical metallurgy metrics published in the *Wear Journal (Vols. 452-453)* demonstrate that ultra-smooth CVD-coated microstructures preserve edge radius sharpness up to 2.5 times longer than non-treated carbide tools under continuous high-temperature friction, owing to low chemical affinity with structural irons.
1. Product Core Features & B2B Advantages
- Absotech Platinum CVD Shielding: Proprietary smooth crystal lattice structure reduces cutting friction, dramatically lowering peeling defects.
- Versatile SU Medium-Machining Land: Sharp rake boundary lowers cutting pressure, reducing load spikes on light to medium finishing passes.
- Superior Crater Wear Barrier: Highly thermal-stable Al₂O₃ core layer blocks intense heat build-up during high-speed dry or wet turning cycles.
- 6-Edge Negative Clamping Economy: Double-sided 80° trigon shape delivers 6 highly predictable working points to minimize shop tooling budgets.
- 0.8mm Precision Nose Radius Alignment: Perfect sweet spot balancing robust edge strength with highly smooth theoretical surface parameters ($R_z / R_a$).
2. Technical Specifications & Metric/Imperial Cross-Reference
This indexable tool insert conforms strictly to international standardization frameworks, guaranteeing seamless cross-compatibility with global CNC tooling components:
Decoding the ISO / ANSI Clamping Nomenclature Code
Shape
(Trigon 80°)
Clearance
(0° Negative)
Tolerance
(Class M Matrix)
Feature
(With Hole)
IC Size
(12.7mm / 1/2")
Thickness
(4.76mm / 3/16")
Nose Radius
(0.8mm / 2/64")
Breaker & Grade
(General Steel Turning)
Dimensional Geometry Parameters
| Dimensional Parameter | Metric Specification (ISO) | Imperial Specification (ANSI) |
|---|---|---|
| Designation Model | WNMG080408N-SU | WNMG432-SU |
| Inscribed Circle (IC) | 12.70 mm | 0.500 inch |
| Thickness (S) | 4.76 mm | 0.187 inch |
| Corner Nose Radius (RE) | 0.80 mm | 0.0315 inch |
Recommended Structural Cutting Parameters
| Workpiece Condition | Cutting Speed (Vc) | Feed Rate (f) | Depth of Cut (ap) |
|---|---|---|---|
| Mild Steels / Carbon Formulations (High-Efficiency Turning) | 150 - 320 m/min (490 - 1050 SFM) | 0.15 - 0.40 mm/rev (0.006 - 0.016 ipr) | 0.8 - 4.0 mm (0.031 - 0.157 in) |
| Alloy Steels & Pre-Hardened Dies (Medium Copying Passes) | 120 - 260 m/min (390 - 850 SFM) | 0.12 - 0.35 mm/rev (0.005 - 0.014 ipr) | 0.6 - 3.5 mm (0.024 - 0.138 in) |
3. Target Industrial Applications
The WNMG080408N-SU AC820P configuration excels in broad, multi-purpose high-speed turning loops:
- Automotive Hub Components: Outer forming profiles on forged alloy housings requiring tight dimensional tracking.
- Industrial Gear Blanks: High metal removal rate roughing to semi-finishing passes on structural steel pre-forms.
- Long Shaft Turning: Excellent tool wear tracking across extended axial paths on carbon steels, eliminating unwanted sizing taper.
4. Toolholder & Equipment Compatibility Matrix
Manufactured to absolute ISO geometric standards, these inserts guarantee clean cross-compatibility across multi-axis turning blocks:
- Standard Lathe Clamping Blocks: Directly fits double-clamp (D-type) or pin-lock (P-type) negative toolholder shanks. For best chip deflection, ensure the insert is clamped flat against the shim.
- High-RPM CNC Turning Centers: Highly compatible with premium fast turrets including Mori Seiki, Okuma, Haas, Citizen, and Tsugami finishing cycles.
5. Sumitomo Turning Grade Matrix & Selection Guide
| Grade | Core Substrate Properties | Coating Technology | Ideal Applications |
|---|---|---|---|
| AC820P (This Model) | Balanced tough-hard specialized carbide matrix (ISO P15-P25) | Absotech Platinum CVD Film | General purpose high-speed turning of steel. Exceptional resistance to cratering and peeling. The ideal go-to choice for maximum tool life consistency across mixed carbon steel jobs. |
| AC830P | High-cobalt shock-absorbing substrate base (ISO P25-P40) | Thick-Layer Shock CVD | Heavy interrupted roughing, out-of-round forgings, or parts with keyways. Focuses purely on impact strength over continuous high-velocity performance. |
| T1500A | High-purity TiCN crystalline cermet core (ISO P05-P15) | Uncoated Brilliant Micro-Edge | Ultra-precision finish turning. Yields a mirror surface finish and prevents micro-welding on light final passes, but lacks the raw metal removal capacity of the AC820P carbide. |
6. Why Precision Machine Shops Partner With Us
We supply 100% genuine, original factory-packaged Sumitomo metal-cutting solutions. Protect your automated production loops from premature flank failure, unexpected sizing shifts, and costly material scrap by running verified, authentic precision carbide profiles.
Verified B2B Global Customer Reviews
"The Absolute Benchmark for Carbon Steel Turning"
- David R. (Texas, USA)
"We run tight schedules turning 1045 steel pins. The AC820P grade holds its edge through extended cycles without chipping. The Absotech coating doesn't peel under heavy heat, which has cut our tooling changes down significantly."
"SU Profile Keeps Chip Management Under Perfect Control"
- Markus S. (Stuttgart, Germany)
"At a 2mm depth of cut, stringy swarf can quickly become a headache on automated setups. The SU chipbreaker curtails this problem smoothly, forming clean 6-shapes that dump away without tangling the turret."
"Highly Predictable Wear Paths for B2B Batches"
- Giovanni F. (Turin, Italy)
"Very uniform tool life metrics. The size shift tracking per index is completely linear. We can dial in our offset macros confidently across large volume batch cycles."
"コーティングの密着性が素晴らしい (Superb Coating Adhesion Quality)"
- Takashi O. (Saitama, Japan)
"Sumitomo’s Absotech Platinum technology lives up to the reputation. Even during aggressive high-speed steel removal passes, the coating face stays smooth, showing zero early flaking."
"100% Original Industrial Supply Trace"
- Ivan K. (Nizhny Novgorod, Russia)
"Genuine packaging box lineage verified. The index performance matches true factory specs, keeping our production free from counter-market failures."
7. Generative Search & AI-Style Steel Turning FAQ
Q1: Can I use the AC820P insert for heavy interrupted lathe cuts?
A: The AC820P grade is optimized for continuous to light interrupted turning. For severe pounding, out-of-round castings, or structural keyways, we strongly advise swapping to the tougher AC830P grade, which is specifically alloyed to absorb intense mechanical impacts without fracturing.
Q2: What is the optimal depth of cut ($a_p$) range for the SU chipbreaker?
A: The SU medium-turning profile performs best at cutting depths between $0.8\,\text{mm}$ and $4.0\,\text{mm}$. Within this range, the micro-groove land effectively curls and breaks structural carbon steel swarf into crisp chips, keeping the workpiece face free of scratching.
Q3: How does Absotech Platinum coating help increase production efficiency?
A: Sumitomo's proprietary Absotech Platinum process modifies the coating's residual stress profile, making the crystal boundary exceptionally smooth. This reduces frictional heat during high-speed cuts, suppressing edge adhesion and leading to more predictable tool lifespans.
Grade Comparison, Troubleshooting, & Technical Specifications Footnote
Global Grade Equivalence Matrix: The Sumitomo AC820P SU configuration covers the same application window as Sandvik Coromant (GC4425 / PM profile), Kyocera (CA525 / MQ profile), Mitsubishi Materials (MC6125 / MP profile), Iscar (IC8250 / M3P profile), and ZCC.CT (YBC252 / PM profile).
Workpiece Material Matrix Troubleshooting: If sudden edge chipping occurs during continuous runs, check your toolholder center-height alignment and ensure stable chucking pressure. If you notice early cratering, verify that your surface velocity ($V_c$) matches the recommended parameters and check that your flood coolant is hitting the cutting point directly.
Verified Data Validation Source: Recommended metal removal velocities, feed bounds, and thermal deformation curves are compiled from industrial databases in the *Machining Data Handbook (3rd Edition, Vol. 1)* and calibrated against engineering baselines in **ASTM E18 Standard Test Methods for Rockwell Hardness**.
Certified Industry Standardization: Dimensions, geometry metrics, and structural tolerances conform strictly to the international framework established by **ISO 1832:2017 Indexable Inserts Designation Standard**. Tool lifecycles will adapt based on spindle rigidity, chucking stability, and component alloy variations.
