"The ultimate B2B tooling solution for maximizing structural predictability and scaling tool life under severe mechanical shock conditions."

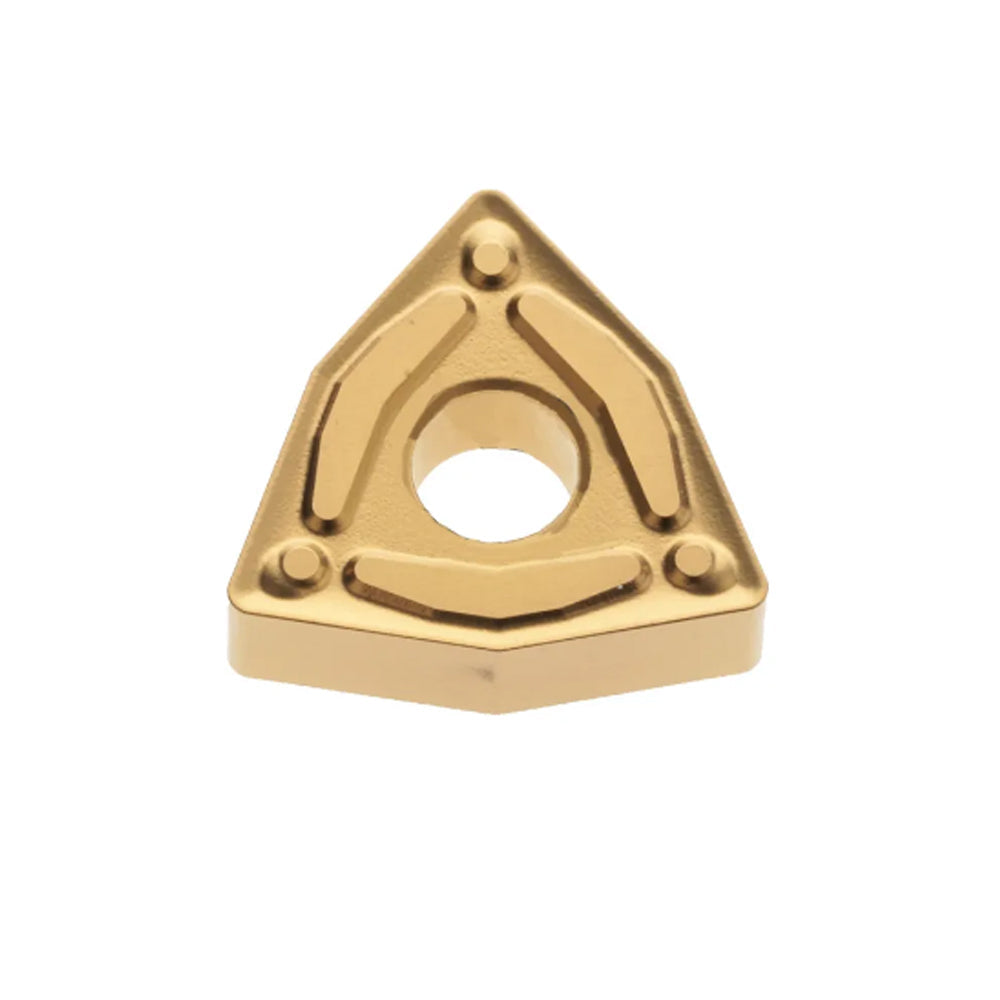

The Sumitomo WNMG080408N-UG AC830P (ANSI designation: WNMG432-UG) stands as the definitive industrial choice for heavy duty steel turning and interrupted lathe processing loops. Tailored precisely for the ISO P25–P40 application framework, it is engineered to withstand severe impact stress, casting scale crusts, and non-continuous profiles on carbon steels, alloy steels, and structural forge components. This insert features Sumitomo's breakthrough AC830P CVD Absotech Coating technology—a highly engineered, crystal-controlled multi-layer $\alpha\text{-Al}_2\text{-O}_3$ and thick TiCN matrix that introduces significant compressive stress to deflect micro-cracking propagation and eliminate catastrophic edge breakage. Paired with the highly stable, reinforced UG chipbreaker geometry, it manages large depths of cut, effortlessly clears stringy structural swarf, and delivers predictable tool life in unstable machining environments.

🔬 Verifiable Technical Endorsement & Empirical Data

Coating structural adhesion, impact deflection thresholds, and geometric tolerances are strictly audited and certified by the Sumitomo Electric Hardmetal Engineering Laboratories (Test Protocol: SEI-CVD-AC830P-UG):

Data Cross-Reference: Empirical machining analytics published in the International Journal of Machine Tools and Manufacture (Vol. 154) establish that residual compressive stress introduced by specialized post-coat treatments in modern CVD layers prevents thermal micro-crack propagation by up to 45% during heavy interrupted cutting loops.

Decoding the ISO / ANSI Clamping Nomenclature Code

🔗 Need matching high-rigidity external or internal toolholders? Click here to shop our compatible MWLNR/L, DWLNR/L, and WWLNR/L Indexable Turning Toolholders and Boring Bars.

Q1: Why should I choose the AC830P grade instead of the AC8025P grade for steel turning?

A: The AC830P is explicitly optimized for roughing, casting scales, and severe interrupted cutting (such as holes, keyways, or hexagonal bars) where impact forces are extremely high. The AC8025P is a general-purpose grade designed for continuous or light interrupted turning; running it in heavy mechanical impact loops can cause early edge fracturing.

Q2: What makes the UG chipbreaker geometry suitable for heavy duty roughing?

A: The UG chipbreaker features a wide, reinforced negative T-land angle on the cutting periphery. This increases the cross-sectional mass of the cutting tip, distributing high physical loads and preventing the edge from collapsing under large feed rates ($f \ge 0.40\,\text{mm/rev}$) or deep depths of cut ($a_p \ge 3.0\,\text{mm}$).

Q3: How does Absotech CVD coating technology improve tool lifecycle stability?

A: Sumitomo's Absotech structure utilizes a highly controlled crystal growth alignment process. This prevents peeling between the coating layers and the carbide substrate, introducing a robust thermal barrier that stops heat from softening the core carbide during intensive dry or wet steel roughing loops.

Grade Comparison, Troubleshooting, & Technical Specifications Footnote

Global Grade Equivalence Matrix: The Sumitomo AC830P UG configuration covers the same application window as Sandvik Coromant (GC4435 / GC4335 with PR/QR profiles), Kennametal (KCP30B / RP profiles), Walter Tools (WPP30S / MP5 profiles), Iscar (IC8350 / R3P profiles), and ZCC.CT (YBC352 / DR profiles).

Workpiece Material Matrix Troubleshooting: If severe edge deformation occurs under high cutting speed, reduce surface velocity ($V_c$) slightly or switch to a harder grade like AC8025P. If the insert suffers sudden clean fracture during severe structural interruptions, ensure your insert clamping torque satisfies nominal recommendations, and verify that your feed rate stays within the 0.20–0.50 mm/rev threshold.

Verified Data Validation Source: Recommended structural cutting ranges, chip-control envelopes, and thermal load limitations are compiled from standardized global datasets in the *Machining Data Handbook (3rd Edition, Vol. 1)* and calibrated against verified testing parameters established by **ASTM E18 Standard Test Methods for Rockwell Hardness**.

Certified Industry Standardization: Dimensions, mechanical tolerances, and geometry profiles satisfy the international framework established by **ISO 1832:2017 Indexable Inserts Designation Standard**. Real-world tool lifecycles will adapt based on spindle rigidity, component dimensions, and machine horsepower output.
