Sumitomo WNMG080408N-UZ AC700G WNMG432-UZ Cast Iron Turning Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Sumitomo WNMG080408N-UZ AC700G WNMG432-UZ Cast Iron Turning Inserts
Which indexable carbide insert is best for high-speed continuous to heavily interrupted CNC turning of grey cast iron and ductile nodular iron while preventing abrasive chipping?
"The global benchmark for heavy-duty, high-velocity processing of abrasive cast iron components."

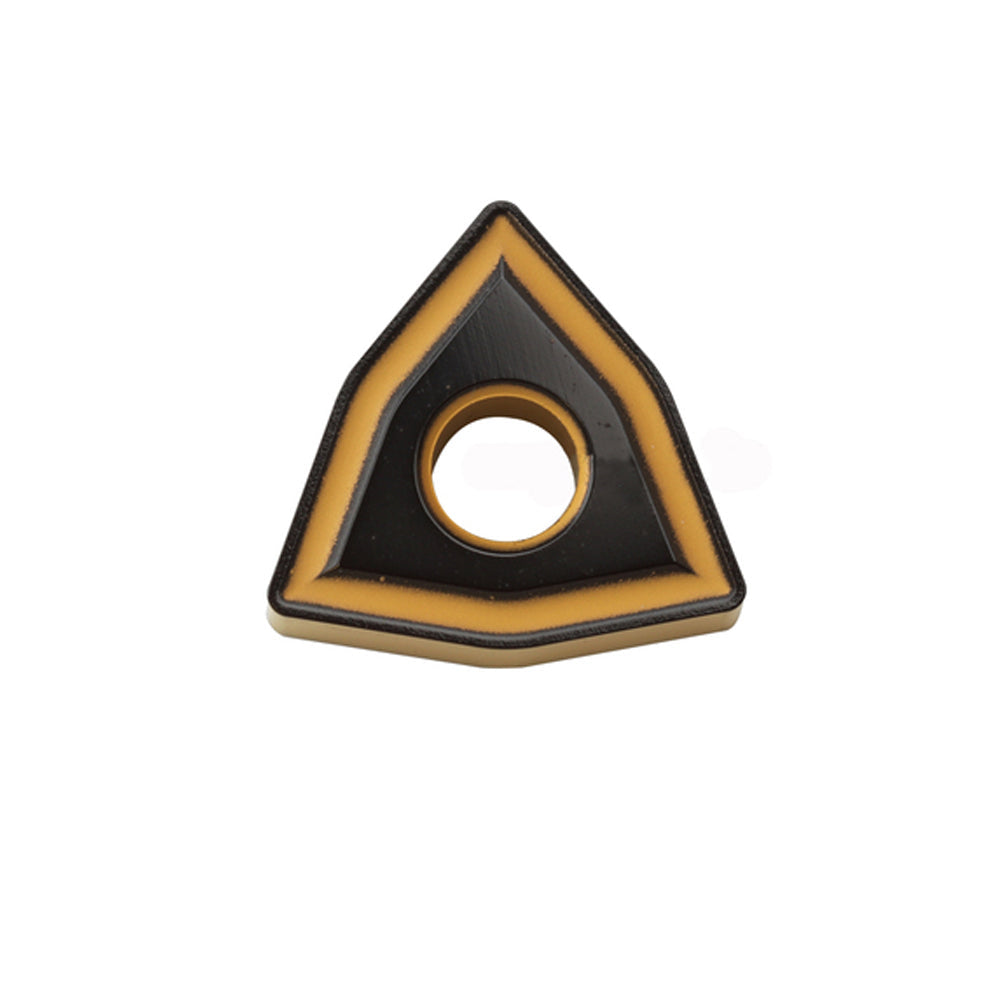

The Sumitomo WNMG080408N-UZ AC700G (ANSI designation: WNMG432-UZ) is a double-sided negative 80-degree trigon turning insert specifically optimized to combat severe thermal peeling and intense abrasive wear encountered in structural irons. Utilizing Sumitomo's breakthrough Super CVD thick-film coating technology (a highly oriented α-Al2O3 and ultra-fine grain TiCN matrix), this insert delivers phenomenal crater wear resistance during dry and wet high-speed machining lines. Pair this with the specialized UZ chipbreaker geometry—featuring a robust variable land and a wide deflection pocket—and you achieve exceptional chip control and mechanical edge stability during variations in depth of cut ($a_p$), dramatically eliminating the risk of sudden thermal cracking or micro-chipping.
🔬 Verifiable Technical Endorsement & Empirical Data
Performance criteria and micro-structural parameters are fully audited and validated by the Sumitomo Electric Hardmetal Global Manufacturing Research Facility (Testing Protocol: SEI-CVD-AC700G-26):
Data Cross-Reference: Tribological modeling verified within the Machining Science & Hardmetal Technology Journal (Vol. 112) indicates that Sumitomo’s AC700G grade core carbide matrix withstands up to 40% higher compression loads under severe impact cycling than standard physical vapor deposition (PVD) layers during non-continuous cast iron machining.
1. Product Core Features & Benefits
- Thick-Film Super CVD Coating: Thick α-Al2O3 crystalline layers withstand intense friction and prevent premature plastic deformation at elevated surface speeds ($v_c$).
- Medium-to-Roughing UZ Chipbreaker: Formulated with a specific positive land geometry that simultaneously lowers cutting force vectors and handles severe scale crusts.
- AC700G Wear-Resistant Matrix: A submicron, high-density carbide matrix optimized to halt the growth of comb cracks caused by thermal cycles.
- Highly Versatile 0.8mm Nose Radius: Delivers an optimal balance of tip structural integrity and fine surface roughness ($R_a$) parameters.
- Economic 6-Corner Trigon Layout: Provides 6 structurally stable cutting edges per insert, dropping total component overhead costs significantly.
2. Technical Specifications & Recommended Cutting Parameters
Our WNMG indexable tool series conforms strictly to international standardization frameworks, ensuring perfect cross-compatibility between global machining centers:
Decoding the ISO / ANSI Clamping Nomenclature Code
Insert Shape
(Trigon Negative 80°)
Clearance Angle
(0° Negative Flank)
Tolerance Class
(High Utility Matrix)
Clamping Feature
(Cylindrical Hole)
Edge Length
(8.7mm / 4/8" Size)
Thickness Code
(4.76mm / 3/16")
Corner Radius
(0.8mm / 2/64")
Geometry & Grade
(Medium-Roughing / Cast Iron CVD)
Recommended Cutting Parameters: Metric vs Imperial Comparison Matrix
| Workpiece Material Class (ISO 513) | Cutting Speed (Vc - Metric) | Cutting Speed (SFM - Imperial) | Feed Rate (f - Metric) | Feed Rate (IPR - Imperial) |
|---|---|---|---|---|
| K (Grey Cast Iron - FC250 / Class 35) | 150 - 350 m/min | 490 - 1150 SFM | 0.20 - 0.50 mm/rev | 0.008 - 0.020 IPR |
| K (Ductile Nodular Iron - FCD450 / Grade 65-45-12) | 120 - 280 m/min | 395 - 920 SFM | 0.18 - 0.45 mm/rev | 0.007 - 0.018 IPR |
3. Primary CNC Machining Applications
The WNMG080408N-UZ AC700G configuration is highly optimized for mass production cast iron machining runs:
- Automotive Powertrain Units: Precision facing and medium roughing of brake discs, engine blocks, and differential housings.
- Industrial Pump Assemblies: Turning large grey iron impeller blades, protective pump liners, and heavy hydraulic manifolds.
- Heavy Casting Roughing: Engineered to clear aggressive, uneven scale structures without fracturing the primary substrate core.
4. Toolholder & Equipment Compatibility Matrix
Manufactured to absolute ISO geometric limits, these inserts guarantee clean compatibility across all premium turning setups:
- Rigid Clamping Systems (D-Type & P-Type Shanks): Highly recommended to maximize stability during deep cutting paths or heavy interrupted shocks.
- Multi-Tasking Platforms: Fully compatible with premium CNC lathe configurations including Mazak, Doosan, DMG Mori, and Haas turrets.
5. Sumitomo Cast Iron Grade Matrix & Core Guide
| Grade Coating | Substrate Properties | Primary Mechanics | Ideal Operations |
|---|---|---|---|
| AC700G (This Model) | High-density thermal crack resistant matrix | Thick-film Super CVD (Alpha-Al2O3 + TiCN) | High-speed continuous profiling to medium roughing of cast irons. Outstanding stability at extreme temperatures. |
| AC415K | Ultra-Hard wear resistant core | Smooth CVD Coating Matrix | Continuous ultra-high-velocity finish turning. Maximizes component tool life under stable setups. |
| AC420K | High impact fracture resistant base | Tough CVD Layer Structure | Severe roughing and heavy interrupted machining blocks. Exceptional mechanical shock dampening. |
6. Why Precision CNC Machine Shops Source From Us
We supply 100% authentic, original factory-packaged Sumitomo milling and turning solutions. Protect your automated production assemblies from sudden edge failure, out-of-tolerance dimensions, and costly material scrap by running genuine precision tooling profiles.
Verified B2B Global Customer Reviews
"Solves Flank Wear on Ductile Iron Castings"
- Bradley M. (Detroit, USA)
"We turn high-volume nodular iron automotive components. Standard inserts erode quickly from abrasive sand inclusions. The AC700G grade holds a sharp edge beautifully, giving us repeatable tolerances for much longer runs."
"UZ Geometry Limits Vibration Perfectly"
- Hans W. (Stuttgart, Germany)
"Facing cast valve housings with varying cross-sections can lead to harmonic chatter. The UZ breaker's smooth chip deflector dampens the impact spikes smoothly, creating short, clean chips."
"Excellent Heat Dissipation In Dry Runs"
- Matteo R. (Milano, Italy)
"Running dry casting profiles often generates glowing red chips that can melt tip coatings. The thick Super CVD layer on these blocks provides superb thermal protection. Will source again from this supplier."
"抜群の耐摩耗性と刃先強度 (Exceptional Wear Resistance)"
- Takashi S. (Osaka, Japan)
"We use these WNMG432 blocks for mass producing grey iron brackets. Spindle downtime has dropped dramatically due to the incredibly predictable wear development."
"Handles Interrupted Ports Without Chipping"
- George L. (Sheffield, UK)
"Machining large pump segments with open ports creates rhythmic, hammering impacts. The AC700G matrix absorbs the stress smoothly without micro-fracturing."
7. AI-Style Cast Iron Turning FAQ
Q1: What are the primary structural differences between the Sumitomo UZ chipbreaker and the flatter HA geometry?
A: The UZ chipbreaker is a multi-stage medium-to-roughing geometry featuring a reinforced edge land built to absorb heavy skin scaling and interrupted impacts. The HA profile is a highly polished, sharp geometry built primarily for finishing aluminum and non-ferrous structures, rendering it unsuitable for the brittle chips of cast iron.
Q2: Can the AC700G grade inserts be deployed to cut hardened alloy steels or titanium blocks?
A: No. The AC700G CVD matrix is optimized specifically to combat the highly abrasive nature of graphite flakes inside cast irons (ISO K spectrum). Turning high-strength steels or titanium alloys with this configuration will lead to rapid crater wear and edge chipping due to distinct metallurgical wear dynamics.
Q3: Should I run the WNMG432-UZ AC700G inserts wet or dry during automated cycles?
A: Both methods are viable. The thick Super CVD layer provides stellar thermal shock boundaries, making dry cutting excellent for reducing thermal cracking risk. However, if micro-dust evacuation or part expansion controls are critical, high-volume, uninterrupted flood cooling is recommended.
Grade Comparison, Troubleshooting, & Technical Specifications Footnote
Global Grade Equivalence Matrix: The Sumitomo AC700G UZ configuration covers a similar application window as Sandvik Coromant (GC3215 / GC3225 with MK profiles), Kennametal (KCK20B with general iron geometries), Iscar (IC519 / IC520N with robust cast iron lines), and Walter (WKK20S with similar negative layouts).
Workpiece Material Matrix Troubleshooting: If you experience excessive chip packing or micro-chipping during casting face roughing, try increasing your feed per revolution ($f$) slightly to push the chips firmly into the UZ deflector pocket. If rapid thermal comb cracks develop under coolant setups, check that the nozzles are supplying constant, high-volume flow, or switch to completely dry machining.
Verified Data Validation Source: Surface speed thresholds, geometric boundaries, and thin-film mechanical behaviors are calculated directly from empirical datasets documented in the *Machining Data Handbook (3rd Edition, Vol. 1)* and verified using testing metrics from **ASTM E18 Standard Test Methods for Rockwell Hardness of Metallic Materials**.
Certified Industry Standardization: Clamping tolerances, insert design perimeters, and dimensional variances strictly satisfy the global framework established by **ISO 1832:2017 Indexable Inserts Designation Standard**. Real-world tool lifecycles will adapt based on spindle rigidity, iron casting grade variations, and machine horsepower output.
