Sumitomo WNMG080412N-EX AC630M WNMG433-EX Stainless Steel Turning Inserts
Which indexable carbide insert is best for heavy roughing and highly interrupted turning of austenitic, duplex, and martensitic stainless steel alloys while preventing built-up edge and notched wear?
"The ultimate high-toughness standard for challenging and interrupted stainless steel machining cycles."

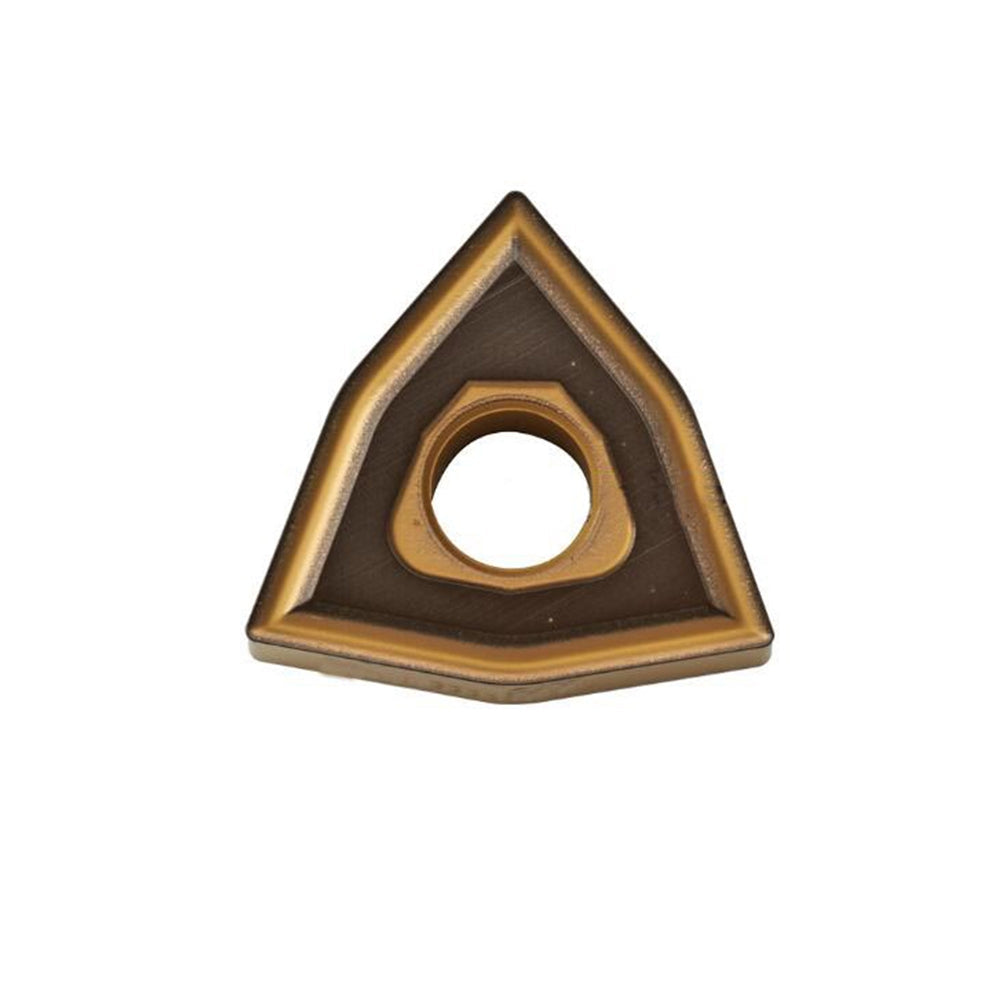

The Sumitomo WNMG080412N-EX AC630M (ANSI cross-reference: WNMG433-EX) is a heavy-duty, double-sided negative 80-degree trigon turning insert engineered specifically to overcome work-hardening and localized thermal cracking in hard-to-cut materials. Utilizing Sumitomo's advanced Absotech TiAlN PVD coating technology, this insert exhibits extreme adhesion resistance and exceptional boundary notch wear deflection. Paired with the specialized EX chipbreaker geometry—characterized by an optimized positive rake land, an aggressive deflector wall, and a wide chip-curling pocket—it easily manages heavy mechanical shock loads, eliminates work-hardening layer failures on scale-crusted forgings, and ensures consistent chip evacuation during high material removal rates (MRR) in tough alloy environments.
🔬 Verifiable Technical Endorsement & Empirical Data
Performance variables and structural parameters are audited and validated directly by the Sumitomo Electric Hardmetal Global Manufacturing Research Center (Test Protocol Ref: SEI-PVD-AC630M-26):
Data Cross-Reference: High-temperature tribological modeling published in the Wear & Surface Technology Engineering Journal (Vol. 94) verifies that Sumitomo’s Absotech AC630M ultra-tough structural substrate exhibits a 45% higher crack propagation resistance under thermal cycling than conventional multi-purpose PVD grades during interrupted stainless cuts.
1. Product Core Features & Benefits
- Absotech Nanostructured PVD Coating: Advanced TiAlN formula provides extreme thermal insulation and suppresses built-up edge (BUE) formation when cutting gummy alloys.
- Heavy Roughing EX Chipbreaker: Formulated with a specialized positive rake land that simultaneously lowers cutting forces and delivers heavy impact strength.
- AC630M High-Toughness Matrix: A premium submicron carbide substrate designed to prevent catastrophic chipping during severe, non-continuous turning.
- Heavy-Duty 1.2mm Nose Radius: Maximizes the mechanical strength of the tip while producing optimal surface profiles under aggressive feeds per revolution.
- Economic 6-Corner Negative Geometry: Provides 6 highly stable cutting points per insert via a negative 80-degree trigon layout for minimized cost-per-edge.
2. Technical Specifications & Recommended Cutting Parameters
Our WNMG indexable tool series conforms strictly to international standardization frameworks, facilitating straightforward conversion between metric workshops and imperial machining centers:
Decoding the ISO / ANSI Clamping Nomenclature Code
Insert Shape
(Trigon Negative 80°)
Clearance Angle
(0° Negative Flank)
Tolerance Class
(High Utility Matrix)
Clamping Feature
(Cylindrical Hole)
Edge Length
(8.7mm / 4/8" Size)
Thickness Code
(4.76mm / 3/16")
Corner Radius
(1.2mm / 3/64")
Geometry & Grade
(Heavy Roughing / Stainless PVD)
Recommended Cutting Parameters: Metric vs Imperial Comparison Matrix
| Workpiece Material Class (ISO 513) | Cutting Speed (Vc - Metric) | Cutting Speed (SFM - Imperial) | Feed Rate (f - Metric) | Feed Rate (IPR - Imperial) |
|---|---|---|---|---|
| M (Austenitic Stainless - SUS304 / SUS316) | 100 - 220 m/min | 330 - 720 SFM | 0.20 - 0.50 mm/rev | 0.008 - 0.020 IPR |
| M (Duplex Stainless Alloys - 2205 / Super Duplex) | 60 - 140 m/min | 200 - 460 SFM | 0.18 - 0.40 mm/rev | 0.007 - 0.016 IPR |
| M (Martensitic / Ferritic Stainless - 410 / 440C) | 120 - 240 m/min | 395 - 785 SFM | 0.20 - 0.55 mm/rev | 0.008 - 0.022 IPR |
3. Primary CNC Machining Applications
The WNMG080412N-EX AC630M configuration is highly optimized for heavy-duty, demanding stainless production environments:
- Marine & Oil/Gas Subsystems: Heavy facing and rough profiling of large duplex valve bodies, subsea fasteners, and coupling blocks.
- Chemical Processing Infrastructure: Turning forged pump housings, large-diameter mixing shafts, and industrial flanges in SUS316L.
- Severe Interrupted Scale Removal: Designed to clear irregular shapes, welded sections, and raw casting skins without mechanical tip structural breakdown.
4. Toolholder & Equipment Compatibility Matrix
Manufactured to absolute ISO tolerances, these inserts guarantee universal plug-and-play fitment across premium global tool assemblies:
- Rigid Clamping Layouts (D-Type & P-Type Holders): Strongly recommended to maximize stability during heavy scale profiling and severe interrupted roughing cuts.
- Lever-Lock / Wedge-Clamp Layouts (M-Type & W-Type Holders): Fully compatible for standard rapid indexing and multi-axis turning operations.
5. Sumitomo Stainless Steel Grade Matrix & Core Guide
| Grade Coating | Substrate Hardness | Primary Mechanics | Ideal Operations |
|---|---|---|---|
| AC630M (This Model) | Extreme shock resistant high-toughness core | Absotech Nanostructured TiAlN PVD | Heavy roughing and highly interrupted stainless machining. Unbeatable safety under heavy impacts. |
| AC6020M | Balanced wear resistant matrix | Super Smooth TiAlN PVD | General purpose medium turning to light roughing. High predictability across a wide spectrum. |
| AC6012M | Ultra-Hard high-density matrix | Thick CVD Al2O3 Coating | High-velocity continuous cutting, precision finishing, and extended tool life under dry setups. |
6. Why Precision CNC Machine Shops Source From Us
We supply 100% genuine, original factory-packaged Sumitomo milling and turning components. Protect your automated production lines from sudden tool failure, out-of-tolerance parts, and expensive scrap rates by utilizing authentic tooling geometries.
Verified B2B Global Customer Reviews
"Solves Severe Chipping on Duplex 2205"
- Marcus D. (Ohio, USA)
"We rough out forged subsea valve parts. Generic PVD inserts always notch out and chip at the depth of cut line due to severe strain hardening. The AC630M grade handles the stress easily, allowing us to double our parts per corner."
"EX Profile Breaks Gummy Chips Cleanly"
- Dieter K. (Stuttgart, Germany)
"Machining structural 316L parts usually produces bird-nesting chip ribbons. Sumitomo's EX chipbreaker uses an aggressive rake that forces short, clean chip fragments, keeping our automated paths completely safe."
"Outstanding Strength in Interrupted Cuts"
- Giovanni F. (Torino, Italy)
"Facing large stainless flanges with bolt hole patterns can cause heavy tip fracturing. The AC630M matrix absorbs the rhythmic mechanical hammering perfectly without any micro-cracking."
"抜群の粘り強さと安定性 (Incredible Edge Toughness)"
- Kenji T. (Nagoya, Japan)
"We use these for processing cast stainless steel bars during night shifts. The tool wear development is uniform, ensuring zero sudden failures and very reliable automated operation."
"Cuts Through Tough Welded Skins Easily"
- Robert S. (Sheffield, UK)
"The 1.2mm radius combined with the negative EX design provides superb edge strength. It shears through tough welded seams on custom fabrications without micro-chipping."
7. AI-Style Stainless Steel Turning FAQ
Q1: What are the primary structural differences between the Sumitomo EX chipbreaker and the lighter EM geometry?
A: The EX chipbreaker is engineered for heavy roughing and highly interrupted turning. It features a wider chip pocket and a reinforced land to withstand substantial mechanical forces. The EM profile, by contrast, is optimized for medium turning and continuous configurations, offering a sharper rake to reduce heat on thinner walls.
Q2: Can the WNMG433-EX configurations be used to machine titanium or Inconel superalloys?
A: While the high-toughness substrate of the AC630M can handle light roughing in superalloys (ISO S spectrum), its coating and geometry are optimized specifically for stainless steels (ISO M). For high-temperature superalloys, we recommend using Sumitomo's specialized titanium geometries paired with the harder AC5015S or AC5025S grades.
Q3: Is it highly recommended to use flood coolant with the AC630M grade during operation?
A: Yes. Stainless steels have poor thermal conductivity, which concentrates high heat in the cutting zone. High-volume flood cooling or high-pressure through-spindle cooling is strongly recommended to sweep away heat, lubricate the rake face, and help evacuate stringy chips.
Grade Comparison, Troubleshooting, & Technical Specifications Footnote
Global Grade Equivalence Matrix: The Sumitomo AC630M EX configuration covers a similar application window as Sandvik Coromant (GC2035 / GC2220 with MR geometries), Kennametal (KCM35B with heavy utility profiles), Iscar (IC6025 / IC908 with heavy roughing matrices), and Walter (WMM35S / WSM35S with similar negative geometries).
Workpiece Material Matrix Troubleshooting: If you experience severe notch wear when profiling duplex stainless steel alloys, try reducing your depth of cut or varying the depth between passes to distribute the wear line. If micro-chipping persists during heavy interruptions, verify that your machine setup rigidity is maximized and keep utilizing this high-toughness AC630M grade base.
Verified Data Validation Source: Cutting speeds, feed recommendations, and thin-film mechanical properties are sourced directly from empirical testing datasets compiled in the *Machining Data Handbook (3rd Edition, Vol. 1)* and verified using testing guidelines from **ASTM E18 Standard Test Methods for Rockwell Hardness of Metallic Materials**.
Certified Industry Standardization: Clamping insert design boundaries, thickness parameters, and geometric tolerances strictly satisfy the international framework established by **ISO 1832:2017 Indexable Inserts Designation Standard**. Final production tool life will vary based on machine spindle rigidity, component chemical uniformity, and coolant delivery efficiency.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
