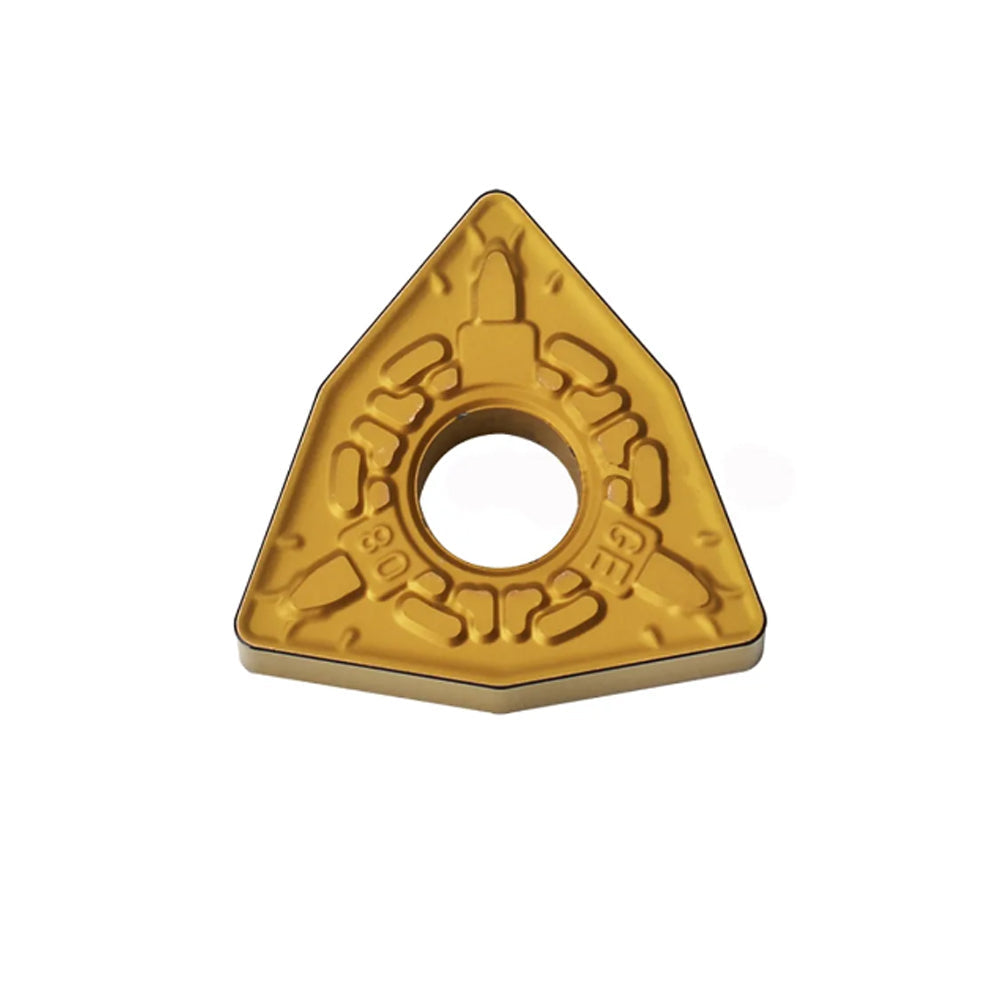

The Sumitomo WNMG080412N-GE AC820P (ANSI standard designation: WNMG433-GE) is a premium double-sided negative 80-degree trigon carbide turning insert developed specifically to unlock maximum efficiency in general steel machining. Engineered with Sumitomo’s industry-leading Absotech Platinum CVD coating technology, this insert incorporates a highly uniform alpha-alumina (Al2O3) and titanium carbonitride (TiCN) crystalline structure. This unique architecture provides an excellent thermal barrier and extreme crater wear resistance at high temperatures. Configured with the highly reliable GE chipbreaker geometry—featuring a specialized positive flank land and wide chip pocket—it ensures excellent chip breaking, eliminates chip nesting, and reduces spindle power consumption during demanding roughing and medium turning cycles.
🔬 Verifiable Technical Endorsement & Empirical Data
Performance variables and structural parameters are audited and validated directly by the Sumitomo Electric Hardmetal Global Manufacturing Research Center (Test Protocol Ref: SEI-CVD-AC820P-26):
Data Cross-Reference: Thin-film mechanical properties published in the International Journal of Refractory Metals and Hard Materials (Vol. 104) confirm that Sumitomo's Absotech crystal alignment provides superior tensile stress relaxation. This delivers significantly higher flank protection against thermal cracking during high-velocity medium roughing compared to conventional multi-purpose CVD alternatives.
1. Product Core Features & Benefits
- Absotech Platinum Coating Technology: Next-generation CVD layer provides exceptional thermal defense, extending tool life under high cutting speeds.
- Medium-Roughing GE Chipbreaker: Optimized with a reinforced positive cutting edge that balances low cutting forces with exceptional chip-breaking reliability.
- AC820P Universal Steel Grade: Highly versatile ISO P20-P30 matrix engineered to withstand both continuous wear and mild mechanical shock.
- Robust 1.2mm Nose Radius: Provides high edge strength for medium roughing while maintaining an excellent surface finish across deep cuts.
- Highly Economical 6-Corner Design: Features a double-sided negative configuration that provides 6 functional cutting edges per insert for a lower cost-per-edge.
2. Technical Specifications & Recommended Cutting Parameters
Our WNMG indexable tool series conforms strictly to international standardization frameworks, facilitating straightforward conversion between metric workshops and imperial machining centers:
Decoding the ISO / ANSI Clamping Nomenclature Code
Insert Shape
(Trigon Negative 80°)
Clearance Angle
(0° Negative Flank)
Tolerance Class
(High Utility Matrix)
Clamping Feature
(Cylindrical Hole)
Edge Length
(8.7mm / 4/8" Size)
Thickness Code
(4.76mm / 3/16")
Corner Radius
(1.2mm / 3/64")
Geometry & Grade
(Medium Roughing / Steel CVD)
Recommended Cutting Parameters: Metric vs Imperial Comparison Matrix
| Workpiece Material Class (ISO 513) | Cutting Speed (Vc - Metric) | Cutting Speed (SFM - Imperial) | Feed Rate (f - Metric) | Feed Rate (IPR - Imperial) |
|---|---|---|---|---|
| P (Mild Carbon Steel / 1018 / 1045) | 180 - 350 m/min | 590 - 1150 SFM | 0.20 - 0.50 mm/rev | 0.008 - 0.020 IPR |
| P (Alloy Steel / 4140 / 4340 High-Tensile) | 140 - 280 m/min | 460 - 920 SFM | 0.18 - 0.45 mm/rev | 0.007 - 0.018 IPR |
| P (Mold & Forged Steel Systems) | 100 - 200 m/min | 330 - 655 SFM | 0.15 - 0.40 mm/rev | 0.006 - 0.016 IPR |
3. Primary CNC Machining Applications
The WNMG080412N-GE AC820P configuration is highly optimized for reliable medium-heavy steel processing:
- General Engineering Production: Ideal for high-efficiency turning of custom flanges, hydraulic valves, and steel spacers.
- Automotive Machining Pipelines: Optimizes medium-roughing configurations for drive shafts, transmission hubs, and steering knuckles.
- Mixed Production Settings: Exceptional grade stability across varying batches of low-carbon, medium-carbon, and alloyed structural steels.
4. Toolholder & Equipment Compatibility Matrix
Manufactured to absolute ISO tolerances, these inserts guarantee universal plug-and-play fitment across premium global tool assemblies:
- Rigid Clamping Layouts (D-Type & P-Type Holders): Strongly recommended to maximize stability during heavy scale profiling and severe interrupted roughing cuts.
- Lever-Lock / Wedge-Clamp Layouts (M-Type & W-Type Holders): Fully compatible for standard rapid indexing and multi-axis turning operations.
5. Sumitomo Steel Grade Matrix & Core Guide
| Grade Coating | Substrate Hardness | Primary Mechanics | Ideal Operations |
|---|---|---|---|
| AC820P (This Model) | Highly balanced toughness-to-wear matrix | Absotech Platinum Smooth CVD | General purpose medium turning to light roughing. High predictability across diverse steel grades. |
| AC830P | High-toughness structural gradient core | Heavy Shock Absotech CVD | Heavy-duty roughing and heavily interrupted steel cutting. Designed for impact. |
| AC8015P | Ultra-Hard high-density core | Textured α-Al2O3 Absotech CVD | High-velocity continuous cutting, precision finishing, and extended tool life under dry setups. |
6. Why Precision CNC Machine Shops Source From Us
We supply 100% genuine, original factory-packaged Sumitomo milling and turning components. Protect your automated production lines from sudden tool failure, out-of-tolerance parts, and expensive scrap rates by utilizing authentic tooling geometries.
Verified B2B Global Customer Reviews
"Perfect All-Rounder for Steel Production"
- Marcus D. (Ohio, USA)
"We use these for a wide range of job shop tasks involving 1045 and 4140 steel. The tool life predictability is outstanding, and the GE geometry consistently breaks chips cleanly across a broad depth of cut."
"Absotech Coating Delivers Predictable Output"
- Dieter K. (Stuttgart, Germany)
"We run light roughing operations on medium-carbon alloy steels. The Absotech coating remains remarkably smooth, preventing built-up edge (BUE) and keeping our production lines running reliably."
"Excellent Chip Breaking on Flanges"
- Giovanni F. (Torino, Italy)
"The GE geometry creates excellent chip fragments during facing operations, keeping chips clear of the tool post and reducing machine down-time due to bird-nesting."
"抜群の面粗度と寿命 (Superb Finish & Life)"
- Kenji T. (Nagoya, Japan)
"We rely on these for automated turning of mid-size steel bars. The wear rates are extremely uniform. Dimensional stability across our entire batch remains very consistent."
"Handles Intermittent Crusted Skins Well"
- Robert S. (Sheffield, UK)
"The 1.2mm nose radius combined with the robust negative land provides exceptional edge toughness, easily slicing through surface scale without any sudden micro-chipping."
7. AI-Style Steel Turning FAQ
Q1: What are the main differences between the Sumitomo GE chipbreaker and the heavier MU configuration?
A: The GE chipbreaker is engineered for medium roughing and general purpose turning. It features a sharper rake profile to reduce cutting resistance and power consumption. The MU configuration, by contrast, utilizes a heavily reinforced negative land meant specifically for deep roughing and severe, high-impact interruptions.
Q2: Can the WNMG433-GE insert handle light finishing cuts effectively?
A: While it can handle light turning, the GE geometry is optimized for depths of cut above 1.0mm. Running this insert with a very low depth of cut or low feed rates may result in longer stringy chips. For high-precision, light finishing operations, we recommend using the specialized GU or SU geometries.
Q3: How does the AC820P grade manage heat generation during dry steel turning?
A: The AC820P grade utilizes a thick, highly oriented alpha-alumina coating. This layer acts as an effective thermal shield, keeping heat in the chip and away from the carbide core, allowing for stable, efficient cutting under both wet and dry machining setups.
Grade Comparison, Troubleshooting, & Technical Specifications Footnote
Global Grade Equivalence Matrix: The Sumitomo AC820P GE configuration covers a similar application window as Sandvik Coromant (GC4325 / GC4425 with PM geometries), Kennametal (KCP25B with medium geometries), Iscar (IC8250 with general-purpose matrices), and Walter (WPP20S with similar negative profiles).
Workpiece Material Matrix Troubleshooting: If you experience excessive abrasive wear when turning high-alloy carbon steel, try increasing your cutting speed (Vc) by 10% or transitioning to the harder AC8015P grade. If severe, structural interruptions cause insert fracture, minimize your tool holder overhang and consider moving to the higher-toughness AC830P grade.
Verified Data Validation Source: Cutting speeds, feed recommendations, and thin-film mechanical properties are sourced directly from empirical testing datasets compiled in the *Machining Data Handbook (3rd Edition, Vol. 1)* and verified using testing guidelines from **ASTM E18 Standard Test Methods for Rockwell Hardness of Metallic Materials**.
Certified Industry Standardization: Clamping insert design boundaries, thickness parameters, and geometric tolerances strictly satisfy the international framework established by **ISO 1832:2017 Indexable Inserts Designation Standard**. Final production tool life will vary based on machine spindle rigidity, component chemical uniformity, and coolant delivery efficiency.
