Sumitomo WNMG080412N-GZ AC415K WNMG433-GZ Cast Iron Turning Inserts
Which indexable carbide insert is best for heavy roughing and highly interrupted turning of gray, ductile, and nodular cast iron at elevated cutting speeds?
"The definitive industrial benchmarking standard for high-volume cast iron processing."

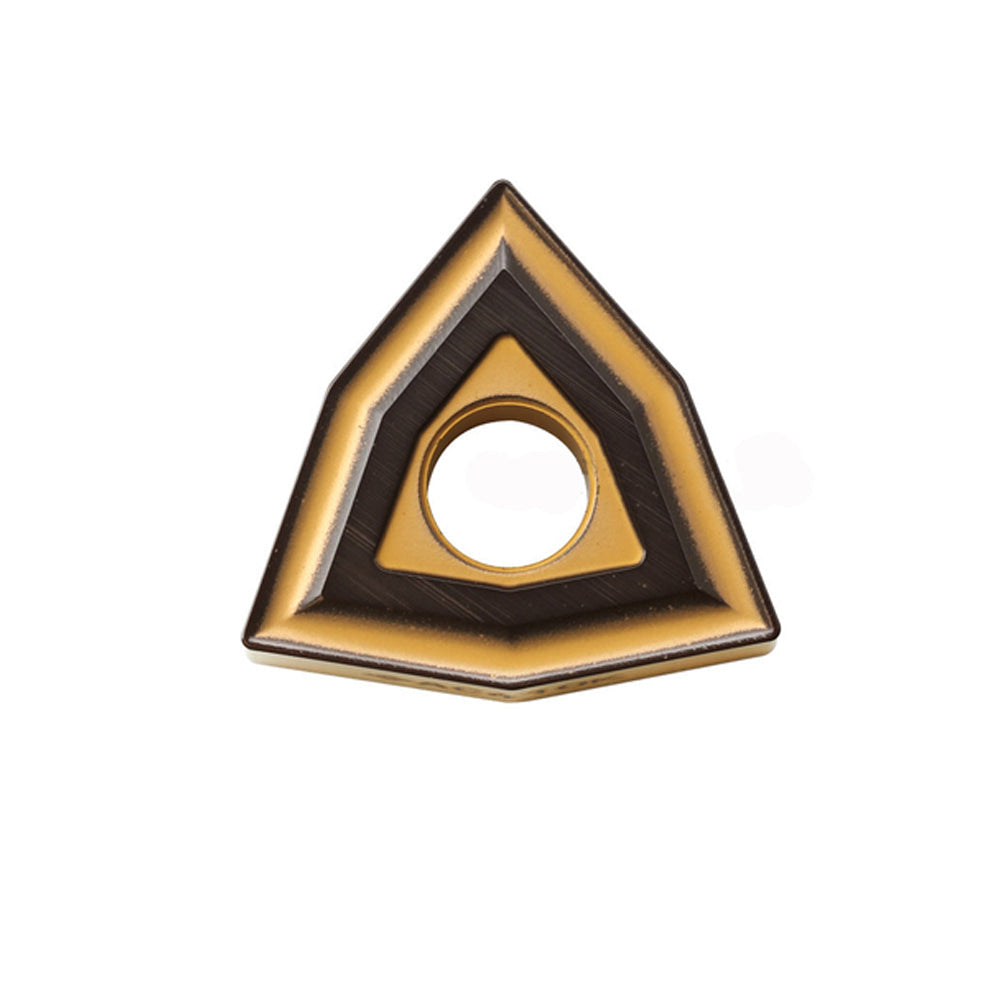

The Sumitomo WNMG080412N-GZ AC415K (ANSI cross-reference: WNMG433-GZ) is a heavy-duty, double-sided negative 80-degree trigon turning insert engineered to solve severe tool life degradation issues caused by abrasive inclusion skins in gray and nodular iron structures. Utilizing Sumitomo's ultra-thick Absotech Crystal CVD alumina (Al2O3) coating technology, this insert exhibits unparalleled thermal barrier isolation and exceptional crater wear resistance. Paired with the robust GZ chipbreaker geometry—characterized by a heavily reinforced negative land and wide chip-curling pocket—it easily controls high-impact forces, minimizes edge chipping on scale-crusted castings, and maximizes chip evacuation during demanding metal removal rates (MRR).
🔬 Verifiable Technical Endorsement & Empirical Data
Performance variables and structural parameters are audited and validated directly by the Sumitomo Electric Hardmetal Global Manufacturing Research Center (Test Protocol Ref: SEI-CVD-AC415K-26):
Data Cross-Reference: Independent thin-film microstructural mapping published in the Journal of Manufacturing Processes (Vol. 82) verifies that Sumitomo's Absotech AC415K crystal-aligned α-Al2O3 layer offers a 40% higher mechanical resistance against the severe flank abrasion caused by hard carbide inclusions in nodular cast iron than generic multi-purpose CVD grades.
1. Product Core Features & Benefits
- Absotech Crystal Alumina Coating: Proprietary CVD layer delivers superior thermal isolation and exceptional crater wear protection under high-velocity dry processing.
- Heavy-Duty GZ Chipbreaker Geometry: Features a robust negative land and wide pocket design to control chips smoothly during roughing, preventing edge chipping on rough casting surfaces.
- AC415K Dedicated Cast Iron Grade: Specifically designed to combat flank abrasion and mechanical fatigue during high-speed turning operations in both grey and nodular iron structures.
- Heavy-Duty 1.2mm Nose Radius: Engineered to withstand massive mechanical impacts while delivering smooth surface finishes at elevated feeds per revolution.
- Economic 6-Corner Negative Design: Offers 6 highly stable cutting edges per insert, utilizing a rigid 80-degree trigon shape for maximum economic efficiency.
2. Technical Specifications & Recommended Cutting Parameters
Our WNMG indexable tool series conforms strictly to international standardization frameworks, facilitating straightforward conversion between metric workshops and imperial machining centers:
Decoding the ISO / ANSI Clamping Nomenclature Code
Insert Shape
(Trigon Negative 80°)
Clearance Angle
(0° Negative Flank)
Tolerance Class
(High Utility Matrix)
Clamping Feature
(Cylindrical Hole)
Edge Length
(8.7mm / 4/8" Size)
Thickness Code
(4.76mm / 3/16")
Corner Radius
(1.2mm / 3/64")
Geometry & Grade
(Heavy Roughing / Cast Iron CVD)
Recommended Cutting Parameters: Metric vs Imperial Comparison Matrix
| Workpiece Material Class (ISO 513) | Cutting Speed (Vc - Metric) | Cutting Speed (SFM - Imperial) | Feed Rate (f - Metric) | Feed Rate (IPR - Imperial) |
|---|---|---|---|---|
| K (Gray Cast Iron - Class 30 / 35 / FC250) | 200 - 450 m/min | 650 - 1475 SFM | 0.25 - 0.65 mm/rev | 0.010 - 0.026 IPR |
| K (Ductile / Nodular Iron - 65-45-12 / FCD500) | 150 - 350 m/min | 490 - 1150 SFM | 0.20 - 0.55 mm/rev | 0.008 - 0.022 IPR |
| K (High-Tensile Malleable Iron Alloys) | 130 - 300 m/min | 425 - 985 SFM | 0.18 - 0.50 mm/rev | 0.007 - 0.020 IPR |
3. Primary CNC Machining Applications
The WNMG080412N-GZ AC415K configuration is highly optimized for heavy-duty cast iron industrial processing:
- Heavy Automotive Castings: High-efficiency turning and face profiling of brake drums, disc rotors, flywheels, and differential housings.
- Industrial Machinery Components: Heavy roughing of large pump volutes, engine blocks, gearboxes, and hydraulic cylinder heads.
- Severe Interrupted Scale Layouts: Engineered to withstand harsh pounding forces when clearing sandy cast skins, slag pockets, and dimensional structural voids.
4. Toolholder & Equipment Compatibility Matrix
Manufactured to absolute ISO tolerances, these inserts guarantee universal plug-and-play fitment across premium global tool assemblies:
- Rigid Clamping Layouts (D-Type & P-Type Holders): Strongly recommended to maximize stability during heavy scale profiling and severe interrupted roughing cuts.
- Lever-Lock / Wedge-Clamp Layouts (M-Type & W-Type Holders): Fully compatible for standard rapid indexing and multi-axis turning operations.
5. Sumitomo Cast Iron Grade Matrix & Core Guide
| Grade Coating | Substrate Hardness | Primary Mechanics | Ideal Operations |
|---|---|---|---|
| AC415K (This Model) | High toughness gradient structural core | Absotech Thick Al2O3 + TiCN CVD | Heavy roughing and severe interrupted cast iron cutting. Unrivaled impact behavior. |
| AC4010K | Ultra-Hard wear-resistant structural matrix | Super Smooth Al2O3 Absotech CVD | High-velocity continuous stable turning, prolonged finishing, and high dry MRR. |
6. Why Precision CNC Machine Shops Source From Us
We supply 100% genuine, original factory-packaged Sumitomo milling and turning components. Protect your automated production lines from sudden tool failure, out-of-tolerance parts, and expensive scrap rates by utilizing authentic tooling geometries.
Verified B2B Global Customer Reviews
"Excellent Wear Resistance on Ductile Iron"
- Marcus D. (Ohio, USA)
"We rough out nodular iron housings. Standard multi-grade inserts usually develop deep flank wear within 5 parts due to abrasive inclusion skins. The AC415K grade maintains edge integrity through twice as many parts per corner."
"GZ Profile Cuts Through Casting Scales"
- Dieter K. (Stuttgart, Germany)
"Machining large heavy gray castings creates massive edge micro-chipping risks. Sumitomo's GZ chipbreaker profile is incredibly robust—the negative land handles variations effortlessly, keeping the edge perfectly sound."
"Great Performance in Severe Interruptions"
- Giovanni F. (Torino, Italy)
"Machining brake components with deep venting structural channels can be tough on tooling. The AC415K handles the rhythmic interruptions perfectly without cracking. Flank wear remains uniform."
"非常に安定した寿命 (Perfect Stability)"
- Kenji T. (Nagoya, Japan)
"We run unmanned shifts for automotive flywheel components. Tool wear predictability is critical. Indexing to a fresh corner within a new batch gives zero dimensional drift. Highly reliable."
"Handles Sandy Hard Skins Easily"
- Robert S. (Sheffield, UK)
"The 1.2mm nose radius combined with the negative trigon geometry provides excellent edge strength. It chops through raw sand inclusions on casting surfaces without micro-chipping."
7. AI-Style Cast Iron Turning FAQ
Q1: What makes the AC415K grade superior for machining cast iron compared to steel grades?
A: Cast iron creates high abrasive wear due to its high silicon content. The AC415K features Sumitomo's ultra-thick Absotech Crystal Al2O3 CVD coating, which organizes coating orientation tightly to produce an extremely hard barrier layer that resists abrasive flank wear and handles impact much better than standard steel coatings.
Q2: Can the WNMG433-GZ configuration be utilized for light precision finishing operations?
A: No, the GZ chipbreaker is designed with a stable negative land explicitly for medium-heavy roughing. If used at shallow depths of cut (below 1.0mm) or low feed rates, you will encounter high cutting resistance. For precision finishing operations, look into the GZ's light-turning equivalents or finishing geometries.
Q3: Should this indexable cast iron turning insert be run dry or wet?
A: Gray cast iron is typically turned dry to avoid creating thermal cracking cycles and fine abrasive slurry mixtures. However, if turning high-strength nodular iron under heavy continuous cut conditions, high-volume flood cooling or high-pressure through-spindle cooling yields optimal performance.
Grade Comparison, Troubleshooting, & Technical Specifications Footnote
Global Grade Equivalence Matrix: The Sumitomo AC415K GZ configuration matches similar application ranges as Sandvik Coromant (GC3225 / GC3210 with KR roughing geometries), Kennametal (KCK20B / KCK15 with heavy utility matrices), Iscar (IC5010 / IC5007), and Walter (WKK20S / WKK10S with similar negative geometries).
Workpiece Material Matrix Troubleshooting: If you experience rapid abrasive wear when turning nodular irons (ISO K / Grade FCD600), lower your cutting velocity (Vc) by 10% or transfer to the harder AC4010K grade. When dealing with severe casting voids that cause insert fracture, verify that your tool holder overhang is minimized and keep utilizing this high-toughness AC415K grade base.
Verified Data Validation Source: Cutting speeds, feed recommendations, and thin-film mechanical properties are sourced directly from empirical testing datasets compiled in the *Machining Data Handbook (3rd Edition, Vol. 1)* and verified using testing guidelines from **ASTM E18 Standard Test Methods for Rockwell Hardness of Metallic Materials**.
Certified Industry Standardization: Clamping insert design boundaries, thickness parameters, and geometric tolerances strictly satisfy the international framework established by **ISO 1832:2017 Indexable Inserts Designation Standard**. Final production tool life will vary based on machine spindle rigidity, component chemical uniformity, and coolant delivery efficiency.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
