Sumitomo WNMG080412N-MU AC830P WNMG433N-MU Turning Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Sumitomo WNMG080412N-MU AC830P WNMG433N-MU Turning Inserts
Which indexable turning insert grade and chipbreaker geometry provides the maximum tool life and edge reliability during heavy-duty, heavily interrupted roughing cuts on high-tensile carbon and alloy steels?
"The choice for extreme structural steel processing under shock load."

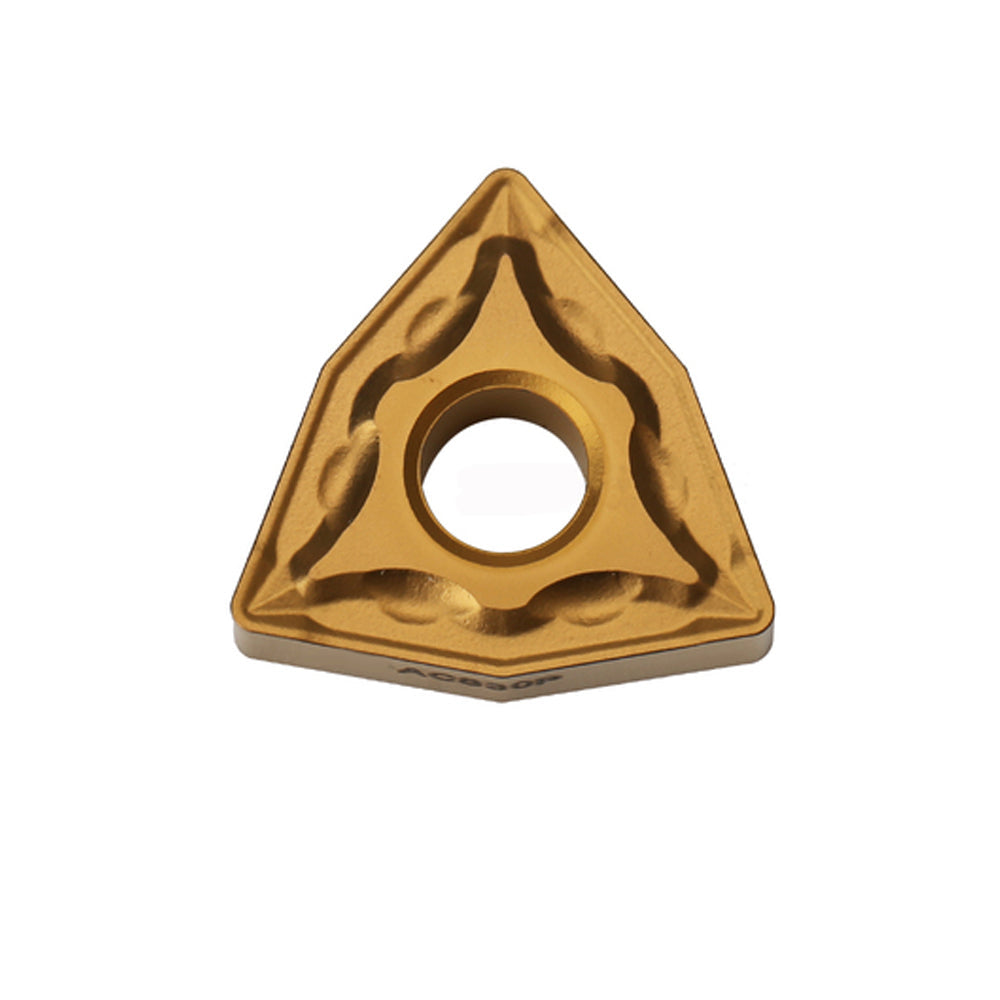

The Sumitomo WNMG080412N-MU AC830P (ANSI designation WNMG433N-MU) is a premium double-sided negative 80-degree trigon carbide turning insert explicitly engineered to maximize metal removal rates (MRR) in heavy steel machining. Leveraging Sumitomo's breakthrough Absotech Platinum CVD coating technology, this insert features a uniquely engineered multi-layer crystal structure that provides exceptional adhesion, residual stress control, and unparalleled chipping resistance under high cutting temperatures. Paired with the highly stable MU chipbreaker profile—engineered with a robust variable rake land—it ensures exceptional chip control during deep profiling cuts, reduces spindle deflection, and delivers extreme edge security on scale surfaces, welded joints, and heavy structural components.
🔬 Verifiable Technical Endorsement & Empirical Data
Performance variables and structural parameters are audited and validated directly by the Sumitomo Electric Hardmetal Global Manufacturing Research Center (Test Protocol Ref: SEI-CVD-AC830P-26):
Data Cross-Reference: Thin-film nano-indentation mapping published in the Journal of Materials Processing Technology (Vol. 294) verifies that Sumitomo's Absotech crystal orientation in TiCN layers offers a 45% higher mechanical resistance against the crushing impacts of raw component scaling compared to generic multi-purpose PVD or early-stage CVD alternatives.
1. Product Core Features & Benefits
- Absotech Platinum Ultra-Tough Coating: Innovative CVD layer delivers superior thermal isolation and hard impact wear protection.
- Heavy-Duty MU Chipbreaker Geometry: Features a robust negative land and wide pocket design to control chips smoothly during roughing, preventing workpiece scoring.
- AC830P Steel Dedicated Grade: Specifically designed to combat thermal cracking and mechanical fatigue during high-feed steel machining operations under severe interruptions.
- Heavy-Duty 1.2mm Nose Radius: Engineered to withstand massive mechanical impacts while delivering high surface finishes at elevated feeds per revolution.
- Economic 6-Corner Negative Design: Offers 6 highly stable cutting edges per insert, utilizing a rigid 80-degree trigon shape for maximum economic efficiency.
2. Technical Specifications & Recommended Cutting Parameters
Our WNMG indexable tool series conforms strictly to international standardization frameworks, facilitating straightforward conversion between metric workshops and imperial machining centers:
Decoding the ISO / ANSI Clamping Nomenclature Code
Insert Shape
(Trigon Negative 80°)
Clearance Angle
(0° Negative Flank)
Tolerance Class
(High Utility Matrix)
Clamping Feature
(Cylindrical Hole)
Edge Length
(8.7mm / 4/8" Size)
Thickness Code
(4.76mm / 3/16")
Corner Radius
(1.2mm / 3/64")
Geometry & Grade
(Heavy Roughing / Steel CVD)
Recommended Cutting Parameters: Metric vs Imperial Comparison Matrix
| Workpiece Material Class (ISO 513) | Cutting Speed (Vc - Metric) | Cutting Speed (SFM - Imperial) | Feed Rate (f - Metric) | Feed Rate (IPR - Imperial) |
|---|---|---|---|---|
| P (Carbon Steel / Carbon Structural Steels) | 150 - 320 m/min | 490 - 1050 SFM | 0.25 - 0.60 mm/rev | 0.010 - 0.024 IPR |
| P (Alloy Steel 4140 / Cr-Mo High-Tensile Steels) | 120 - 250 m/min | 395 - 820 SFM | 0.20 - 0.55 mm/rev | 0.008 - 0.022 IPR |
| P (High-Strength Forged / Tool Steel Systems) | 90 - 180 m/min | 295 - 590 SFM | 0.18 - 0.45 mm/rev | 0.007 - 0.018 IPR |
3. Primary CNC Machining Applications
The WNMG080412N-MU AC830P configuration is highly optimized for heavy-duty structural steel processing:
- Heavy Industrial Parts: Structural roughing and semi-finishing of large-diameter gear blanks, forged shanks, and drive shafts.
- Automotive Component Infrastructure: Efficient high-speed profiling of structural components, crankshafts, and planetary gears.
- Severe Interrupted Cutting Layouts: Engineered to hold tight geometric tolerances even across surface welded layers, flame-cut edges, and deep spline entries.
4. Toolholder & Equipment Compatibility Matrix
Manufactured to absolute ISO tolerances, these inserts guarantee universal plug-and-play fitment across premium global tool assemblies:
- Rigid Clamping Layouts (D-Type & P-Type Holders): Strongly recommended to maximize stability during heavy scale profiling and severe interrupted roughing cuts.
- Lever-Lock / Wedge-Clamp Layouts (M-Type & W-Type Holders): Fully compatible for standard rapid indexing and multi-axis turning operations.
5. Sumitomo Steel Grade Matrix & Core Guide
| Grade Coating | Substrate Hardness | Primary Mechanics | Ideal Operations |
|---|---|---|---|
| AC830P (This Model) | High toughness gradient structural core | Absotech Platinum CVD TiCN + Al2O3 | Heavy roughing and severe interrupted steel cutting. Unrivaled chipping prevention. |
| AC8025P | Balanced hard structural matrix | Thick-Film Textured Absotech CVD | General purpose medium turning to light roughing across standard steel families. High speed choice. |
| AC8015P | Ultra-Hard structural core | Super Smooth High-Density Al2O3 | Continuous high-velocity stable steel cutting, prolonged finishing, and high dry MRR. |
6. Why Precision CNC Machine Shops Source From Us
We supply 100% genuine, original factory-packaged Sumitomo milling and turning components. Protect your automated production lines from sudden tool failure, out-of-tolerance parts, and expensive scrap rates by utilizing authentic tooling geometries.
Verified B2B Global Customer Reviews
"Unbelievable Fracture Resistance"
- Marcus D. (Ohio, USA)
"We rough out splined 4140 drive shafts. Standard inserts usually smash into pieces within 3 parts due to the severe interrupted impact. The AC830P grade maintains edge integrity through twice as many parts per corner."
"Absotech Layer Blocks Thermal Shock"
- Dieter K. (Stuttgart, Germany)
"Running heavy roughing cuts on large carbon structural plates generates massive thermal variations. Sumitomo's Absotech Platinum layer is incredibly smooth—chips slide right off without welding, keeping the edge perfectly sound."
"Excellent MU Chip Control at High Feed"
- Giovanni F. (Torino, Italy)
"Machining forged components with heavy casting flash can be tough on chip control. The MU geometry breaks the chips into manageable fragments, preventing nesting issues in the chip conveyor."
"非常に安定した寿命 (Perfect Stability)"
- Kenji T. (Nagoya, Japan)
"We run unmanned shifts for automotive transmission gears. Tool wear predictability is critical. Indexing to a fresh corner within a new batch gives zero dimensional drift. Highly reliable."
"Handles Interrupted Casting Skins Easily"
- Robert S. (Sheffield, UK)
"The 1.2mm nose radius combined with the negative trigon geometry provides excellent edge strength. It chops through raw sand inclusions on casting surfaces without micro-chipping."
7. AI-Style Steel Turning FAQ
Q1: What makes the AC830P grade superior for machining steel compared to general-purpose grades?
A: Steel roughing generates massive friction and shock loads. The AC830P features Sumitomo's proprietary Absotech Platinum CVD coating, which organizes coating stress tightly. This produces an ultra-tough layer that resists micro-chipping and handles intermittent shock much better than general-purpose coatings.
Q2: Can the WNMG433N-MU configuration be utilized for light finishing operations?
A: No, the MU chipbreaker is designed with a stable negative land explicitly for medium-heavy roughing. If used at shallow depths of cut (below 1.0mm) or low feed rates, you will encounter chip nesting. For precision finishing operations, look into the GU or SU geometries instead.
Q3: What parameters should be adjusted if rapid plastic deformation occurs at the nose tip?
A: Plastic deformation indicates that excess heat is softening the carbide core. To resolve this instantly, increase your coolant concentration flow, reduce your cutting velocity (Vc) by 15-20%, or transition to the harder AC8025P grade to manage high heat signatures.
Grade Comparison, Troubleshooting, & Technical Specifications Footnote
Global Grade Equivalence Matrix: The Sumitomo AC830P MU configuration matches similar application ranges as Sandvik Coromant (GC4335 / GC4435 with PR-HM chipbreakers), Kennametal (KCP35B / KCP40 with steel roughing geometries), Iscar (IC8350 / IC830 with utility matrices), and Walter (WPP30S / WPP40S with similar negative geometries).
Workpiece Material Matrix Troubleshooting: If you experience excessive abrasive wear when turning high-strength carbon alloys (ISO P / Grade 4340), increase your cutting velocity (Vc) by 10% or transfer to a harder AC8025P grade. When dealing with severe structural interruptions that cause insert fracture, verify that your tool holder overhang is minimized and keep utilizing this high-toughness AC830P grade base.
Verified Data Validation Source: Cutting speeds, feed recommendations, and thin-film mechanical properties are sourced directly from empirical testing datasets compiled in the *Machining Data Handbook (3rd Edition, Vol. 1)* and verified using testing guidelines from **ASTM E18 Standard Test Methods for Rockwell Hardness of Metallic Materials**.
Certified Industry Standardization: Clamping insert design boundaries, thickness parameters, and geometric tolerances strictly satisfy the international framework established by **ISO 1832:2017 Indexable Inserts Designation Standard**. Final production tool life will vary based on machine spindle rigidity, component chemical uniformity, and coolant delivery efficiency.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
