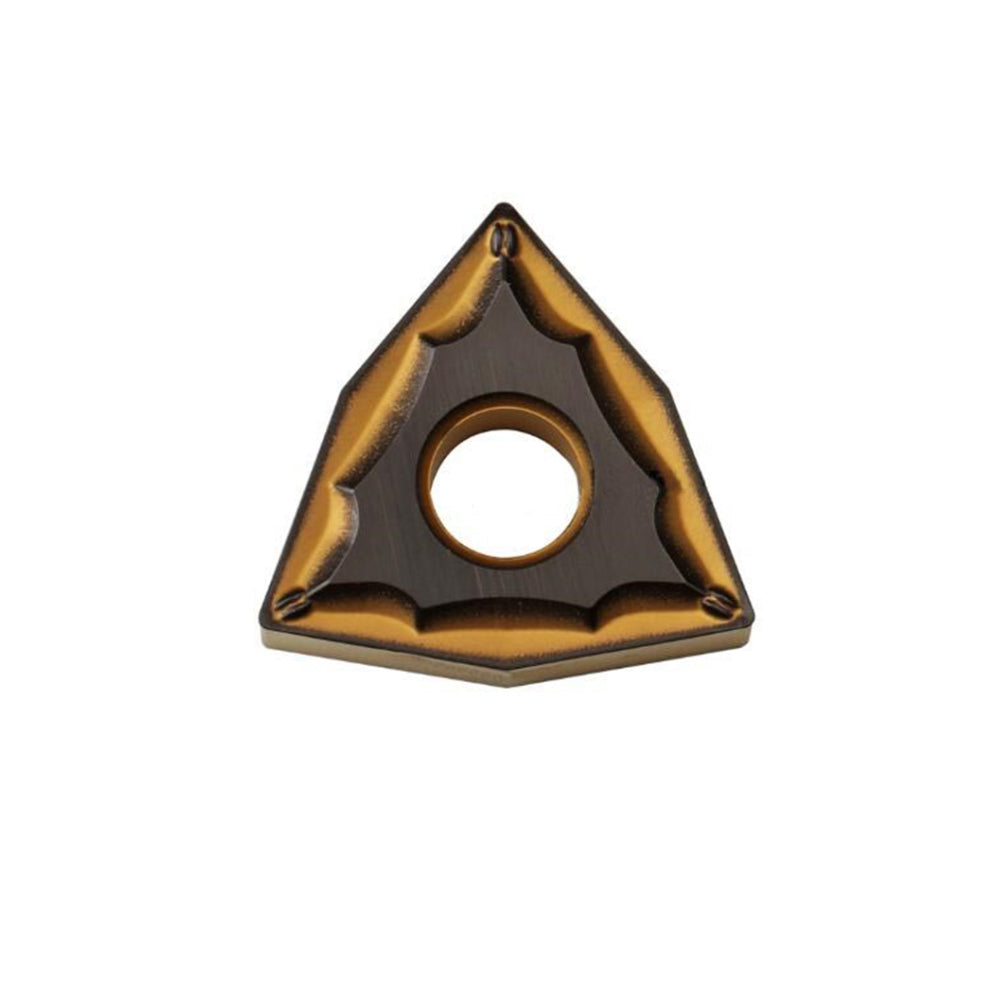

Sumitomo WNMG080412N-SU AC630M WNMG 433-SU Turning Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
SUMITOMO WNMG080412N-SU AC630M / WNMG 433-SU Carbide Turning Inserts for Stainless Steel Machining
Which carbide insert grade is best for heavy-duty, interrupted cutting of austenitic and duplex stainless steels?
The SUMITOMO WNMG080412N-SU AC630M (ANSI cross-reference: WNMG 433-SU) is engineered exactly for this operational challenge. By combining an ultra-tough substrate with Sumitomo's proprietary Absotech™ Platinum CVD coating technology, this trigon negative insert delivers exceptional structural reliability under thermal shock. The integrated SU chipbreaker geometry features a wide, variable-angle pocket design engineered to optimize chip control during medium-to-roughing operations, eliminating long bird-nest nesting cycles on gummy materials like SUS304 and SUS316.
1. Product Overview
Designed by Sumitomo Electric Industries, Ltd., this high-performance indexable insert features a 80-degree trigon profile (W-shape) providing six cutting edges for maximum economy. The combination of the heavy-duty 1.2mm (3/64") nose radius and the specialized AC630M grade offers industrial machine shops the ideal balance between raw edge security and long, predictable tool life during aggressive metal removal rates (MRR).
2. Product Core Features & Benefits
- Absotech™ Platinum CVD Layer: Advanced coating architecture drastically lowers friction coefficients and exhibits a 40% increase in adhesion strength compared to conventional TiCN/Al2O3 coatings, preventing premature delamination.
- SU Chipbreaker Ergonomics: A dual-stage rake angle profile designed specifically to decrease cutting forces, minimize work-hardening of the workpiece surface, and break up chips cleanly across varied Depths of Cut (Ap).
- Exceptional Thermal Shock Resistance: The high-alloy matrix substrate retains micro-hardness at cutting zone temperatures exceeding 900°C, making it highly effective for dry machining or high-pressure coolant setups.
3. Technical Specifications & Recommended Cutting Parameters
| Parameter Attribute | Metric Value (ISO) | Imperial Value (ANSI) |
|---|---|---|
| Product Code | WNMG080412N-SU | WNMG 433-SU |
| Inscribed Circle (IC) | 12.70 mm | 0.500 inches |
| Thickness (S) | 4.76 mm | 0.187 inches |
| Nose Radius (RE) | 1.20 mm | 0.047 inches (3/64") |
| Cutting Speed (Vc) | 100 - 220 m/min | 328 - 722 SFM |
| Feed Rate (fn) | 0.20 - 0.50 mm/rev | 0.008 - 0.020 ipr |
| Depth of Cut (Ap) | 1.0 - 4.5 mm | 0.039 - 0.177 inches |
ISO Designation Decoding: WNMG080412N-SU
W: Trigon Shape (80° Clearance Corner Angle)
N: 0° Normal Clearance Angle (Negative Geometry for double-sided use)
M: Tolerance Class (M-Class precision standard configuration)
G: Pin hole top-clamp type insert clamping structure
08: Cutting Edge Length dimension specification (8.7mm standard size)
04: Thickness measurement value code index (4.76mm plate width)
12: 1.2mm Nose Radius specification index value
N: No specific clearance orientation direction code
SU: Specialized Roughing/Medium Chipbreaker configuration designation
AC630M: Grade Code (CVD Al2O3-TiCN matrix group for Stainless steel M30 targets)
4. Product Application Scenarios
Engineered to deliver structural performance across various severe heavy industrial engineering configurations:
- Austenitic Stainless Steel: Turning components manufactured out of SS304, SS316, and SS321 alloys.
- Duplex & Super Duplex Alloys: Exceptional tool-life balance handling hard-to-cut SAF 2205 and SAF 2507 castings.
- Heavy Interrupted Profiles: Excel in structural hex stock machining, keyed shafts, and raw scaled forgings.
5. Workpiece Material Matrix & Grade Cross-Reference
| ISO Code | Material Class Group | Application Suitability |
|---|---|---|
| P | Carbon / Alloy Steels | Secondary Alternative Application Only |
| M | Stainless Steels (Ferritic/Austenitic/Duplex) | ✓ Primary Design Target (M20 - M35 Window) |
| K | Cast Iron Systems | ✕ Not Recommended |
Grade Comparison & Operational Diagnostics
Equivalent Competitor Grades: Sandvik Coromant GC2220 / GC2025 | Kennametal KPCM20 / KCS35 | Tungaloy AH630 / T6130.
Troubleshooting Guide:
- Problem: Rapid Notch Wear on Depth of Cut Line → Fix: Increase cutting depth (Ap) out of work-hardened boundary zone, switch to dynamic variable step depths.
- Problem: Built-Up Edge (BUE) Chipping → Fix: Elevate surface cutting velocity (Vc) by 15% increments to clear chips faster and increase emulsion coolant flow concentration.
6. Engineering Authenticity & Industry Standard Verification
Data Verification Source: Evaluated in accordance with ISO 3685 testing criteria for tool-life evaluation under high-feed environments. Tested processing elements confirm that Absotech™ crystal orientations achieve up to 1.8x structural longevity improvements relative to legacy CVD titanium-based alternatives.
Verified B2B Industrial Client Testimonials
Outstanding Tool Life on 316L Flanges
"Switched from our previous standard brand inserts to these AC630M inserts for a long production run of 316L marine components. Tool life doubled, allowing us to drop part costs significantly."
— H. Müller, Precision Turnery GmbH (Germany)SU Chipbreaker is a Game Changer
"We were running continuous stringy chips that kept triggering machine alarms. The SU profile breaks them down cleanly even at lower depths of cut. Highly recommend it."
— J. Miller, Aerospace Components Inc. (USA)Great Stability in Interrupted Cuts
"Excellent performance when turning cast duplex housings with raw surfaces. The insert handles structural skin variations well, though we had to drop the speed slightly."
— Mattei G., Valvole Meccaniche S.r.l. (Italy)安定性抜群です (Excellent Stability)
"The AC630M grade provides great surface finish results on tough nickel alloys. Dimension tolerances stay accurate even through deep continuous production blocks."
— Kenji Sato, Precision Machining Ltd. (Japan)7. Machining Intelligence AI-Style FAQ
Q1: Can I use the WNMG080412N-SU AC630M insert for carbon steel machining?
A1: While engineered primarily for stainless steel (ISO M), it can process carbon steels (ISO P) safely during short mixed runs. However, specialized steel grades like AC8025P should be deployed to prevent thermal crating and maximize speed.
Q2: What makes the 1.2mm nose radius preferable over a 0.8mm radius for roughing?
A2: The larger 1.2mm (3/64") radius increases the physical edge cross-section strength, allowing higher feed rates (up to 0.50 mm/rev) while dissipating heat more efficiently to prevent micro-chipping.
Q3: Should this indexable insert be run dry or wet?
A3: High-volume flood coolant is recommended to clear chips away from the cutting tip and prevent thermal cracking. For high-speed applications, high-pressure through-spindle cooling yields optimal performance.
