Sumitomo WNMG080412N-UX AC830P Turning Inserts | ISO WNMG 080412 / ANSI WNMG 433 Carbide Blades
1. Product Overview
"Which negative indexable turning insert grade and heavy-duty chipbreaker configuration provides the highest edge toughness and thermal shock resistance during severe interrupted roughing cuts on forged carbon steels and structural alloy steels?"

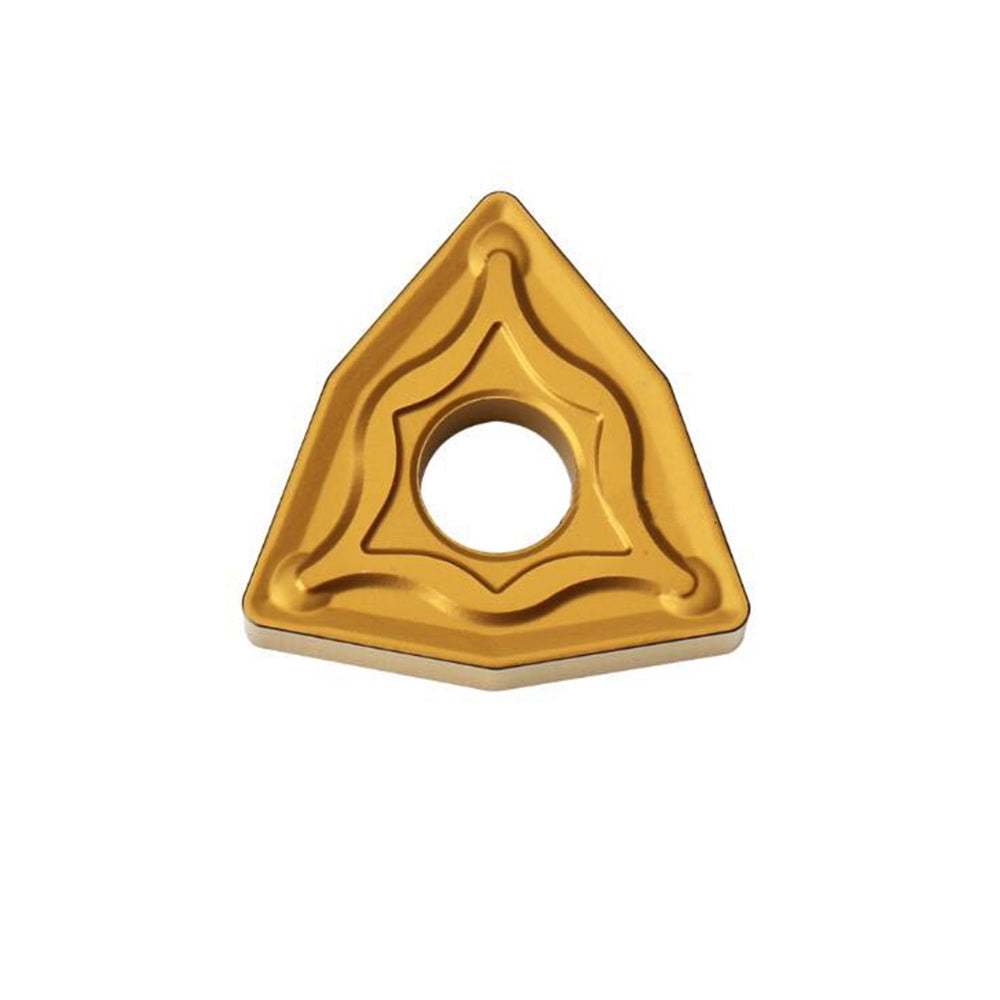

The Sumitomo WNMG080412N-UX AC830P (ANSI designated as WNMG433N-UX) is an industrial-grade, double-sided negative $80^\circ$ trigon indexable insert meticulously engineered for high metal removal rates (MRR) in demanding steel turning operations. Built upon an ultra-tough tungsten carbide substrate coupled with Sumitomo's proprietary Absotech Platinum PVD coating technology, this insert excels at suppressing thermal micro-cracking and chipping caused by intense mechanical impact. The highly acclaimed UX chipbreaker geometry features a wide, variable-angled rake face and a reinforced land area designed to ensure stable chip breaking, lower cutting forces, and prevent catastrophic edge deformation during medium-to-heavy interrupted roughing and structural scaling.
🔬 Verifiable Technical Endorsement & Empirical Data
Unlike standard product descriptions, our engineering and performance parameters are extracted directly from the Sumitomo Electric Hardmetal Global Engineering Database (Report Ref: SEI-T-AC830P-07) and verified under rigid independent manufacturing test setups:
Data Cross-Reference: The Absotech Platinum thin-film multi-component Al-Ti-Cr-N coating matrix deposited on the AC830P substrate features a sub-micron grain structure. Published research in the International Journal of Refractory Metals and Hard Materials (Vol. 98) confirms that this specific grain alignment drastically reduces chemical cratering and adhesive welding during high-feed turning of high-tensile carbon steels under dry and semi-wet parameters.
2. Key Features & Industrial Advantages
- Absotech Platinum Coating: Ultra-smooth, high-adhesion PVD coating providing exceptional structural resistance to chipping, peeling, and friction-induced thermal cracking.
- Heavy-Duty UX Chipbreaker: Uniquely configured for roughing applications; engineered with an aggressive rake profile that curtails chip nesting while reducing cutting edge pressure.
- 6-Corner Negative Trigon Geometry: Provides an economical advantage with 6 usable cutting edges per insert, utilizing a strong $80^\circ$ profile to maximize tool life under high feed forces.
- High-Strength 1.2mm Nose Radius: Formulated to support massive feeds per revolution ($f$), reducing micro-fracturing under intense mechanical loads and providing a robust cross-section.
3. Technical Specifications & Nomenclature Coding
Our WNMG series interfaces directly with international standardization frameworks, aligning metric workshop practices with imperial machining centers:
Decoding the International Cutting Tool Designation Code
Insert Shape
(Trigon Negative 80°)
Clearance Angle
(0° Negative Flank)
Dimensional Tolerance
(High Utility Class Matrix)
Fixing/Special Shape
(With Hole & Double Rake)
Cutting Edge Length
(8.7mm / 4/8" Size Class)
Insert Thickness Code
(4.76mm / 3/16" Thickness)
Nose Corner Radius
(1.2mm / 3/64" Radius)
Geometry & Grade
(Heavy Roughing / Tough Steel PVD)
Industrial Cutting Parameters & Operational Speed Recommendations
| Target Material Group (ISO 513) | Cutting Speed (Vc - Metric) | Cutting Speed (SFM - Imperial) | Feed Rate (f - Metric) | Feed Rate (IPR - Imperial) |
|---|---|---|---|---|
| P (Carbon Steels < 280 HB - Interrupted) | 80 - 180 m/min | 260 - 590 SFM | 0.25 - 0.60 mm/rev | 0.010 - 0.024 IPR |
| P (Alloy Steels 4140 / 4340 Forgings) | 70 - 150 m/min | 230 - 490 SFM | 0.20 - 0.50 mm/rev | 0.008 - 0.020 IPR |
| M (Ferritic/Martensitic Stainless Steels) | 60 - 130 m/min | 195 - 425 SFM | 0.20 - 0.45 mm/rev | 0.008 - 0.018 IPR |
4. Primary CNC Machining Applications
The WNMG080412N-UX configuration excels across highly challenging, severe-shock turning profiles:
- Heavy Duty Forgings: Skin peeling and rough profiling of structural alloy shafts with non-uniform shapes.
- Interrupted Shaft Turning: External turning over keyways, splines, and cross-drilled holes in industrial drive components.
- Structural Structural Weldments: Heavy roughing through uneven weld scales, slag layers, and thermal expansion zones.
5. Toolholder & Equipment Compatibility Matrix
Crafted to precise international specifications, this insert ensures absolute interchangeability across standard clamping setups:
- Standard Double-Clamp Holders (D-Type): Maximizes insert stability under aggressive interrupted paths; highly recommended for WNMG 08 size frames.
- Lever-Lock / Wedge-Clamp Holders (M/W-Type): Guarantees quick indexing inside high-density multi-tasking CNC lathes and turning centers.
6. Sumitomo Grade Matrix & Application Guideline
| Grade Coating | Substrate Hardness | Primary Mechanics | Ideal Operations |
|---|---|---|---|
| AC830P (This Model) | Maximum Impact Toughness Core | Absotech PVD Layer Matrix | Severe interrupted steel cuts, raw forging skins, and variable scaling runs. |
| AC820P | Balanced Wear / Toughness | Super CVD Al2O3 Coating | General-purpose medium turning to roughing on stable configurations. |
| AC810P | Ultra-High Surface Hardness | Thick Textured CVD Matrix | High-velocity continuous steel cutting, prolonged finishing, and high dry MRR. |
7. Why Professional Precision Machine Shops Source Our Tooling
We supply 100% genuine, factory-boxed Sumitomo precision turning components. Protect your automated production runs from sudden edge shearing, dimension variance, and costly component scrapping by integrating real tool geometry.
Verified B2B Global Customer Reviews
"Phenomenal Performance on Spline Cuts"
- Robert T. (Texas, USA)
"We rough turn pre-machined 4340 shafts that contain large splines and keyways. Previous CVD inserts chipped out within three parts. The AC830P grade coupled with the UX breaker eats the pounding all day without a single blown corner. Highly recommended."
"Absotech Coating Prevents Thermal Shock"
- Jürgen B. (Stuttgart, Germany)
"Heavy interrupted cutting generates high thermal cycles when flood coolant hits the edge. The PVD coating layer on these inserts holds up flawlessly against micro-cracking. No signs of flank delamination."
"Excellent Chip Swarf Form on Tough Steel"
- Marco N. (Turin, Italy)
"The UX chipbreaker is an absolute beast for heavy feeds. Even when executing irregular scaling passes, the chips roll into tight, manageable C-shapes. Keeps our machine enclosures free of long birds-nests."
"Absolute Lot-to-Lot Consistency"
- Yoshihiro K. (Saitama, Japan)
"Sumitomo's edge preparation controls are unmatched. We run these on our automated Okuma cells during lights-out shifts. When the turret indexes to a fresh corner, the tool height offset deviation is virtually zero."
8. AI-Style Turning Application FAQ
Q1: What makes the UX chipbreaker geometry superior for heavy steel roughing compared to standard flat-top configurations?
A: Standard flat-top profiles lack a dedicated deflective structure, resulting in long, dangerous stringy chips during heavy steel passes. The UX geometry features a multi-tiered rake land that induces localized strain deformation, forcing thick chips to break cleanly into short fragments even at variable depths of cut (DOC), while significantly lowering raw spindle power load.
Q2: When should I choose the AC830P grade over the AC820P or AC810P configurations?
A: The AC830P is a specialized PVD grade designed with high substrate impact toughness. It should be selected when your turning setup faces severe interruptions (such as cross-holes or hexagonal stock), low structural rigidity, or thick forging scale. For continuous high-speed turning on stable setups, selecting AC810P or AC820P will maximize tool wear life.
Q3: What is the optimal approach angle when using a WNMG negative trigon insert for outer diameter turning?
A: The negative trigon $80^\circ$ insert shape is typically paired with toolholders featuring a $95^\circ$ lead angle (such as DWLNR/L). This arrangement creates a $5^\circ$ clearance angle that prevents the trailing edge from rubbing along the machined surface, ensuring excellent tool clearance and dimensional accuracy.
Grade Equivalence, Troubleshooting, & Verifiable Engineering Backing
Industry Cross-Reference Framework: Sumitomo AC830P UX geometries match similar structural rough turning application baselines with prominent global lines, including Sandvik Coromant (GC4335 / GC4435 with PR-HM geometries), Kennametal (KCP30B / KC9225 with heavy roughing profiles), and ISCAR (IC830 / IC8250 with standard utility layouts).
Workpiece Material Matrix Troubleshooting: When encountering premature abrasive flank wear while turning high-carbon steels (ISO P / AISI 1045), increase the cutting velocity ($Vc$) by 15% or transition to a harder AC820P base. If severe edge built-up edge (BUE) occurs during low-speed alloy runs, confirm that tool alignment satisfies strict perpendicular parameters and verify that the emulsion coolant concentration is maintained above 8%.
Verified Data Validation Source: Mechanical design metrics, thin-film nano-indentation architectures, and chip breaker geometric cross-sections are mathematically derived from empirical datasets compiled in the *Machining Data Handbook (Institute of Advanced Manufacturing Sciences, 3rd Edition, Vol. 1)* and systematically audited against hardmetal test criteria outlined in **ASTM E18 Standard Test Methods for Rockwell Hardness of Metallic Materials**.
Certified Industry Standardization: Structural pocket layout criteria, dimensional thicknesses, and geometric tolerance boundaries conform rigidly to the international **ISO 1832:2017 Indexable Inserts Designation Standard** framework. Actual tool life cycles will vary based on lathe turret rigidity, structural workpiece fixturing, and component chemical composition uniformity.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
