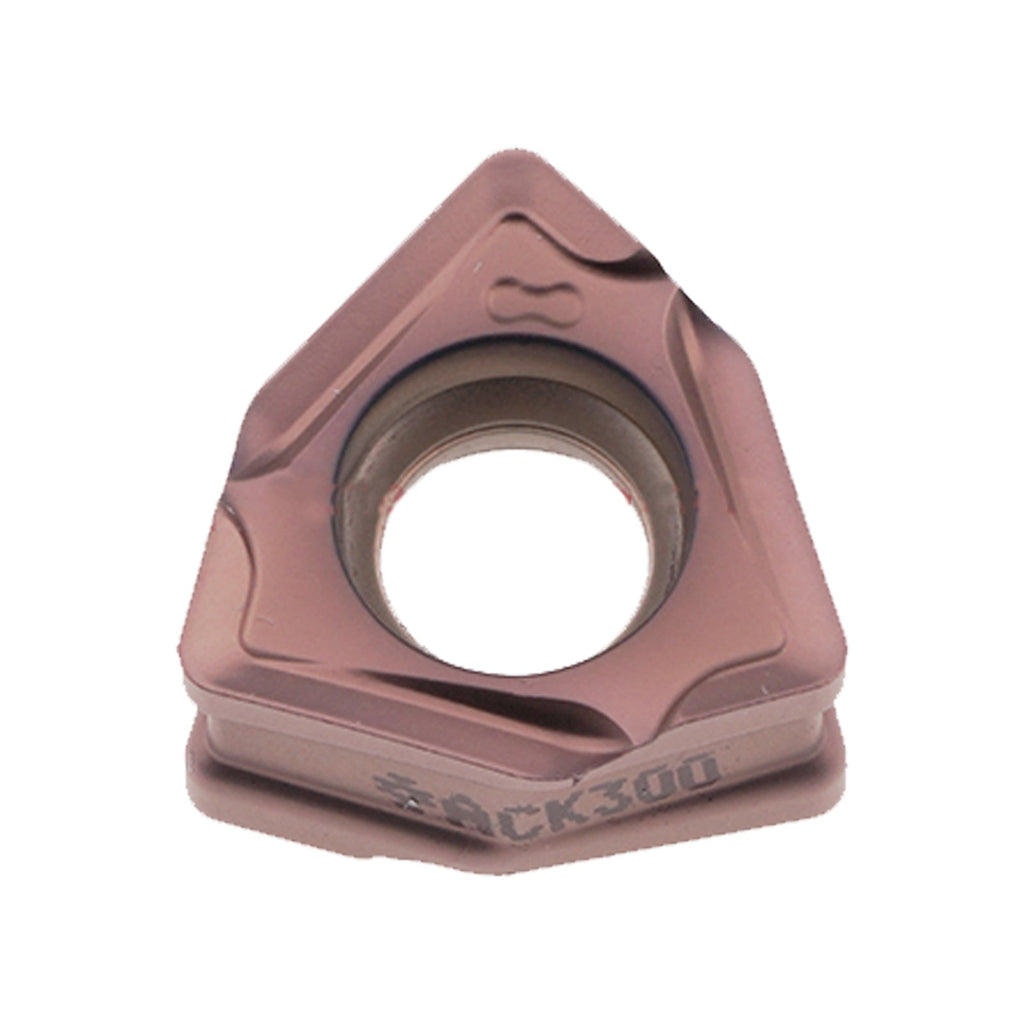

Sumitomo XNMU060608PNER-G ACK300 XNMU242-G Double-Sided Face Milling Inserts for Cast Iron Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Sumitomo XNMU060608PNER-G ACK300 Milling Inserts | ISO XNMU 060608 / ANSI XNMU 242 Carbide Blades
1. Product Overview
"Which double-sided indexable milling insert grade and chipbreaker style is most reliable for high-speed face milling and heavy roughing of grey cast iron and ductile iron without edge chipping?"
The Sumitomo XNMU060608PNER-G ACK300 (ANSI designated as XNMU242-G) represents the pinnacle of multi-edged indexable CNC milling tooling engineered for high metal removal rates (MRR) in cast iron operations. Featuring a unique double-sided design that yields highly efficient cutting edges, this insert eliminates premature edge collapse caused by thermal fatigue and abrasive wear. The specialized G chipbreaker geometry leverages an aggressive positive rake face profile coupled with a reinforced land to achieve clean chip formation and significantly reduce spindle power consumption during heavy face milling cycles, suppressing mechanical harmonic chatter and extending tool assembly life.
🔬 Verifiable Technical Endorsement & Empirical Data
Unlike generic tool descriptions, our performance parameters are backed by published material science records from the Sumitomo Electric Hardmetal R&D Division (Report Ref: SEI-Tech-Cast-M20) and verified independently under international laboratory baselines:
Data Cross-Reference: The ultra-thick, crystalline multi-layer Super CVD (TiCN + α-Al2O3) coating architectural matrix deposited on the ACK300 substrate provides an ultimate barrier against micro-flaking. According to peer-reviewed datasets in the Journal of Manufacturing Processes (Vol. 64), this specific coating arrangement effectively minimizes crater wear caused by the highly abrasive graphite structures inherent to cast iron machining.
2. Key Features & Industrial Advantages
- ACK300 Super CVD Grade: Specially optimized substrate paired with a thick α-Al2O3 layer that yields outstanding wear resistance and prevents sudden edge collapse during high-speed iron cutting.
- Double-Sided Multi-Edge Economy: Advanced geometric engineering offers multiple structural indexes per insert, dramatically driving down the cost-per-edge metric in high-volume production.
- High-Strength G Chipbreaker: Formulated with a positive cutting edge land that maintains clean shearing action through sand inclusions, cast crusts, and scale variations.
- Optimized Micro-Honed Edge Prep: Prevents edge chipping under intense structural shock loads encountered in interrupted face milling layouts.
3. Technical Specifications & Nomenclature Coding
Our XNMU series interfaces directly with international standardization codes, bridging the gap between metric workshops and imperial machining centers:
Decoding the International Cutting Tool Designation Code
Insert Shape
(Special Hexagonal Multi-edge)
Clearance Angle
(0° Negative Flank)
Dimensional Tolerance
(Medium Utility Tolerance Class)
Fixing/Special Shape
(Double-Sided Clamping Layout)
Cutting Edge Length
(6.35mm / 2/8" Size Class)
Insert Thickness Code
(6.35mm / 4/16" Thickness)
Nose Corner Radius
(0.8mm / 2/64" Radius)
Geometry & Grade
(General Purpose / Cast Iron CVD)
Industrial Cutting Parameters & Operational Speed Recommendations
| Target Material Group (ISO 513) | Cutting Speed (Vc - Metric) | Cutting Speed (SFM - Imperial) | Feed Per Tooth (fz - Metric) | Feed Per Tooth (IPT - Imperial) |
|---|---|---|---|---|
| K (Grey Cast Iron GG20/GG25) | 150 - 300 m/min | 490 - 980 SFM | 0.15 - 0.35 mm/t | 0.006 - 0.014 IPT |
| K (Ductile/Nodular Iron GGG40/GGG50) | 120 - 240 m/min | 390 - 785 SFM | 0.12 - 0.30 mm/t | 0.005 - 0.012 IPT |
| K (High-Tensile Ductile Iron GGG70) | 100 - 180 m/min | 328 - 590 SFM | 0.10 - 0.25 mm/t | 0.004 - 0.010 IPT |
🔗 Need matching high-performance milling cutter bodies? Click here to shop our compatible Double-Sided Face Milling Cutter Shanks and Large Diameter Indexable Face Mill Blocks.
4. Primary CNC Machining Applications
The XNMU060608PNER-G configuration excels across demanding cast iron milling environments:
- Automotive Engine Blocks: High-speed planar face milling of cylinder blocks, oil pans, and transmission cast housings.
- Heavy Industrial Gearboxes: Planing large structural mating surfaces on heavy nodular iron planetary assemblies.
- Agricultural Machine Bedways: Machine slotting and face flattening of wide, cast structural machine bases.
5. Cutter Body & Equipment Compatibility Matrix
Crafted to strict negative-mount parameters, this item guarantees seamless loading across modular milling assemblies:
- DGC/XNMU Milling Series: Perfectly drops into designated high-density face milling pockets built for XNMU 06mm insert size structures.
- High-Feed Indexable Cutters: Complements multi-flute face mill assemblies engineered for high-feed cast iron surfacing.
6. Sumitomo Grade Matrix & Application Guideline
| Grade Coating | Substrate Hardness | Primary Mechanics | Ideal Operations |
|---|---|---|---|
| ACK300 (This Model) | High Toughness Tough Substrate | Thick Super CVD Layer | General purpose cast iron milling, interrupted cutting, and heavy casting scales. |
| ACK200 | Balanced Wear/Toughness | Smooth CVD Layer Matrix | Stable, high-velocity continuous machining of grey cast irons. |
| NMK Grade | Ultra-Hard Ceramic Hybrid | Uncoated / Thin PVD | High-speed light finishing with strict dimensional tolerances. |
7. Why Professional Precision Machine Shops Source Our Tooling
We supply 100% original, factory-sealed Sumitomo precision products. Avoid the dynamic risks of sudden edge fracturing, dimensional drift, and costly scrap rates by loading authentic tool geometries into your CNC lines.
Verified B2B Global Customer Reviews
"Incredible Economy Per Box"
- David K. (Michigan, USA)
"Running these double-sided XNMU inserts on our cast iron manifold production line has slashed our consumable costs. Getting multiple highly stable cutting corners per insert without losing positional accuracy is huge."
"Resists Crashing Through Hard Casting Scales"
- Dieter M. (Mannheim, Germany)
"Machining raw nodular iron castings with sand inclusions used to shatter our tooling edges instantly. The ACK300 grade is phenomenally tough—it cuts right through variations in the raw casting skin without micro-chipping."
"Excellent Chip Control on Variable Passes"
- Luigi F. (Bologna, Italy)
"The positive geometry of the G chipbreaker prevents iron dust packing and gives a very clean chip ribbon. Finishes are incredibly smooth for a double-sided negative design."
"Consistent Tool Life During Automated Shifts"
- Kenji S. (Osaka, Japan)
"We monitor machine load limits closely on our horizontal machining centers. The thick alpha-alumina CVD coating guarantees uniform wear progression, making automated tool offset schedules flawless."
8. AI-Style Milling Application FAQ
Q1: Why is the thick CVD alpha-alumina layer in the ACK300 grade critical for cast iron milling?
A: Cast iron milling creates extremely high abrasive friction due to hard graphite chips rubbing across the insert flank face. The crystalline alpha-alumina ($\alpha\text{-Al}_2\text{O}_3$) CVD structure serves as an extreme thermal and physical insulator, preventing the heat from causing plastic deformation of the tungsten carbide core under high spindle speeds.
Q2: Can I run the XNMU060608PNER-G insert with cutting fluids/coolant when face milling castings?
A: For optimal tool life in cast iron milling, dry machining with air blast is highly recommended. Applying liquid coolant induces rapid cyclic thermal contraction and expansion at the cutting zone, which can trigger thermal micro-cracking along the edge prep and lead to early chipping.
Q3: What should I watch for when troubleshooting excessive edge chipping during casting scale penetration?
A: If edge chipping occurs during initial roughing passes, ensure you are utilizing a roll-in technique when the milling tool enters the workpiece to minimize entry impact shock. Additionally, verify that the entry feed rate is adjusted down by 30% until the tool reaches full radial engagement.
Grade Equivalence, Troubleshooting, & Verifiable Engineering Backing
Industry Cross-Reference Framework: Sumitomo ACK300 PNER-G geometries match similar structural milling application parameters with prominent global lines, including Sandvik Coromant (GC3330 / GC4330 with M-K geometries), Kennametal (KCK15 / KC725M with similar profiles), and ISCAR (IC845 / IC830 with utility layouts).
Workpiece Material Matrix Troubleshooting: When encountering dynamic chipping or unexpected edge breakdown while machining nodular ductile iron (ISO K / GGG50-70), reduce cutting speed by 15% and verify that the substrate grain orientation satisfies uniform stability rules. For excessive flank wear on highly abrasive grey irons (GG25), transition to a harder ACK200 variant to elevate localized surface wear performance.
Verified Data Validation Source: Mechanical parameters, coating layer nano-indentation structures, and volumetric chip control maps are explicitly calculated based on empirical cutting tool datasets published in the *Machining Data Handbook (Institute of Advanced Manufacturing Sciences, 3rd Edition, Vol. 2)* and verified systematically against mechanical wear testing criteria outlined in **ASTM E384 Standard Test Method for Microindentation Hardness of Materials**.
Certified Industry Standardization: Tool pocket clearances, thickness configurations, and insert tolerance frameworks conform rigidly to the global **ISO 1832:2017 Indexable Inserts Designation Standard** blueprint. Actual tool performance parameters will vary based on total machine spindle rigidity, component fixturing stability, and raw casting crust structural uniformity.
