SVQBR2525M16 Right Hand Toolholder: Precision Tooling for CNC Excellence
-
Overview

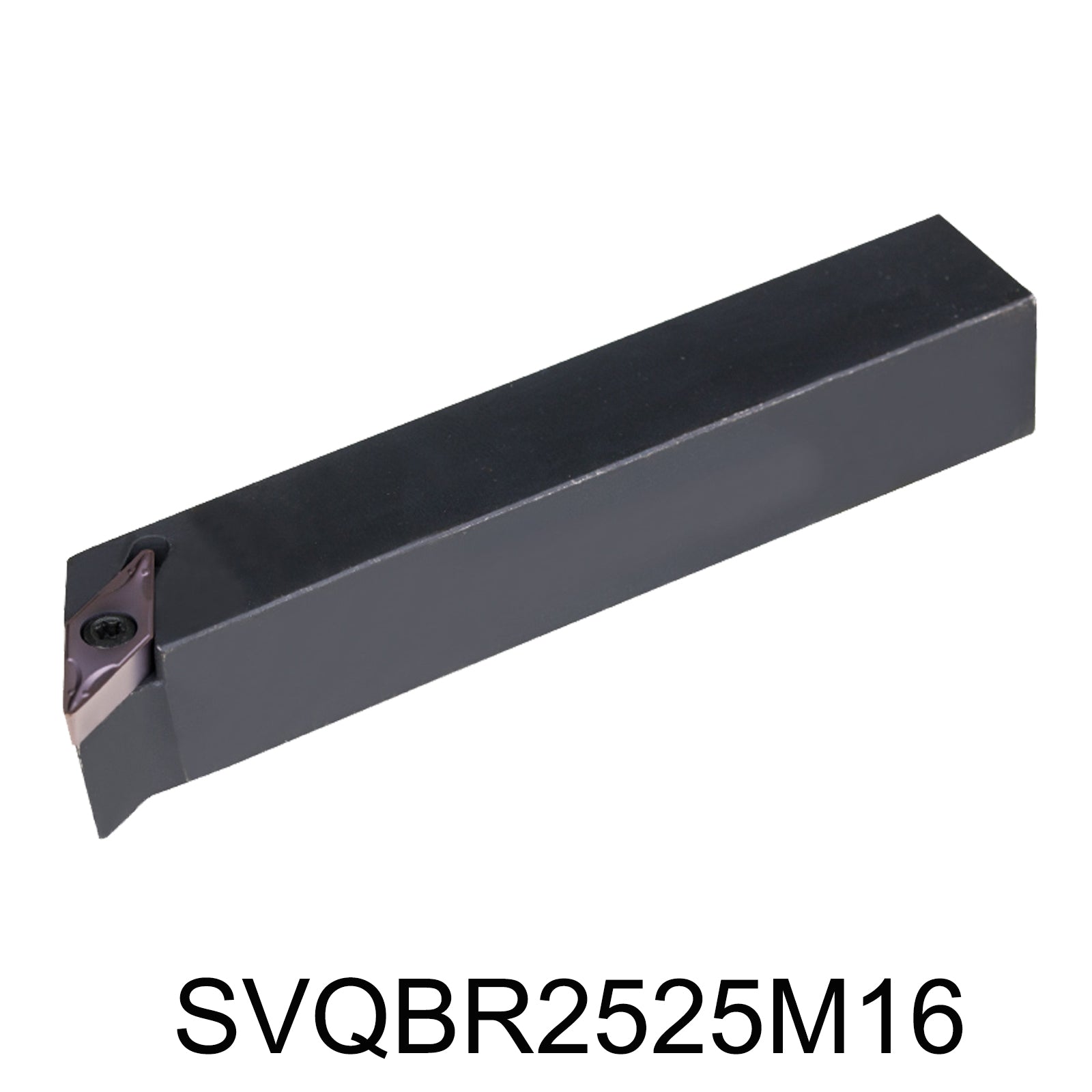

Introducing the SVQBR2525M16 External Tool Holder, a premium solution for high-precision machining in CNC machine tools and lathes. Engineered with a cutting edge angle of 117.5° and a blade relief angle of 5°, this external cylindrical tool holder is designed for optimal performance in demanding machining applications. Featuring a robust S-type screw clamping system, it ensures secure blade retention, allowing for consistent and reliable cutting results. With compatibility for various VBMT blades, the SVQBR2525M16 is perfect for professionals seeking to enhance their machining efficiency and versatility.
-
- Model:SVQBR2525M16
- Package Includes: SVQBR2525M16 External Lathe Turn Tool holder and compatible Screws, and Wrenches

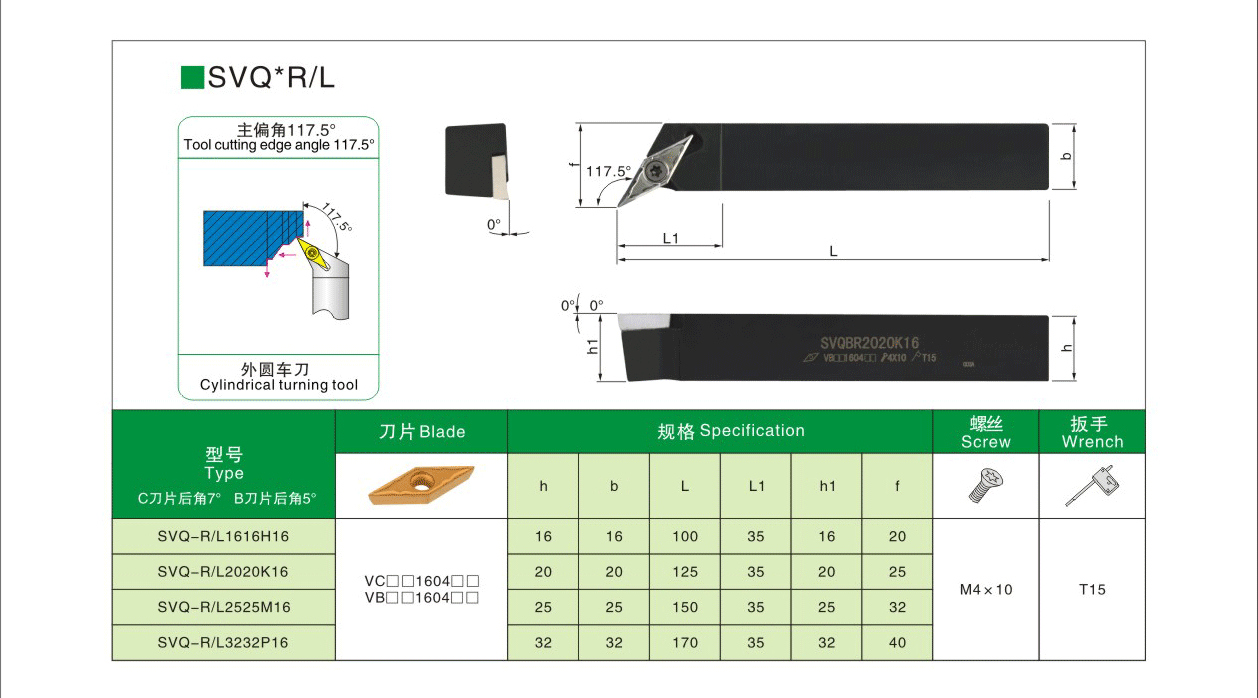

- 117.5° Tool Cutting Edge angle and 5° relief angle.
- Type: S-Type (Screw Clamping System)
- Shank width: 25mm
- Shank length: 25mm
- Total Length: 150mm
- Screw: M4*10
- Wrench: T15
- Compatible Blades: VBMT160402 VBMT160404 VBMT160408 VBMT330 VBMT331 VBMT332
-
Elevate Your Machining Performance with the SVQBR2525M16 Tool Holder
-
5-Point Description
-
Optimal Cutting Performance: The SVQBR2525M16 features a cutting edge angle of 117.5°, delivering exceptional cutting efficiency and surface finish quality for a variety of materials.
-
Secure Clamping Mechanism: The innovative S-type screw clamping system guarantees that blades are firmly held in place, reducing the risk of tool slippage and ensuring consistent machining results.
-
Compact and Durable Design: With dimensions of 25mm for both shank width and length, and a total length of 150mm, this tool holder combines compactness with robust durability, ideal for various machining environments.
-
Compatible with a Range of Blades: This tool holder is compatible with VBMT160402, VBMT160404, VBMT160408, and VBMT330 series blades, offering flexibility for different machining applications and material types.
-
Complete Tooling Package: Included in the package are an M4*10 screw and a T15 wrench, providing everything needed for a seamless setup and immediate usability in your machining processes.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
