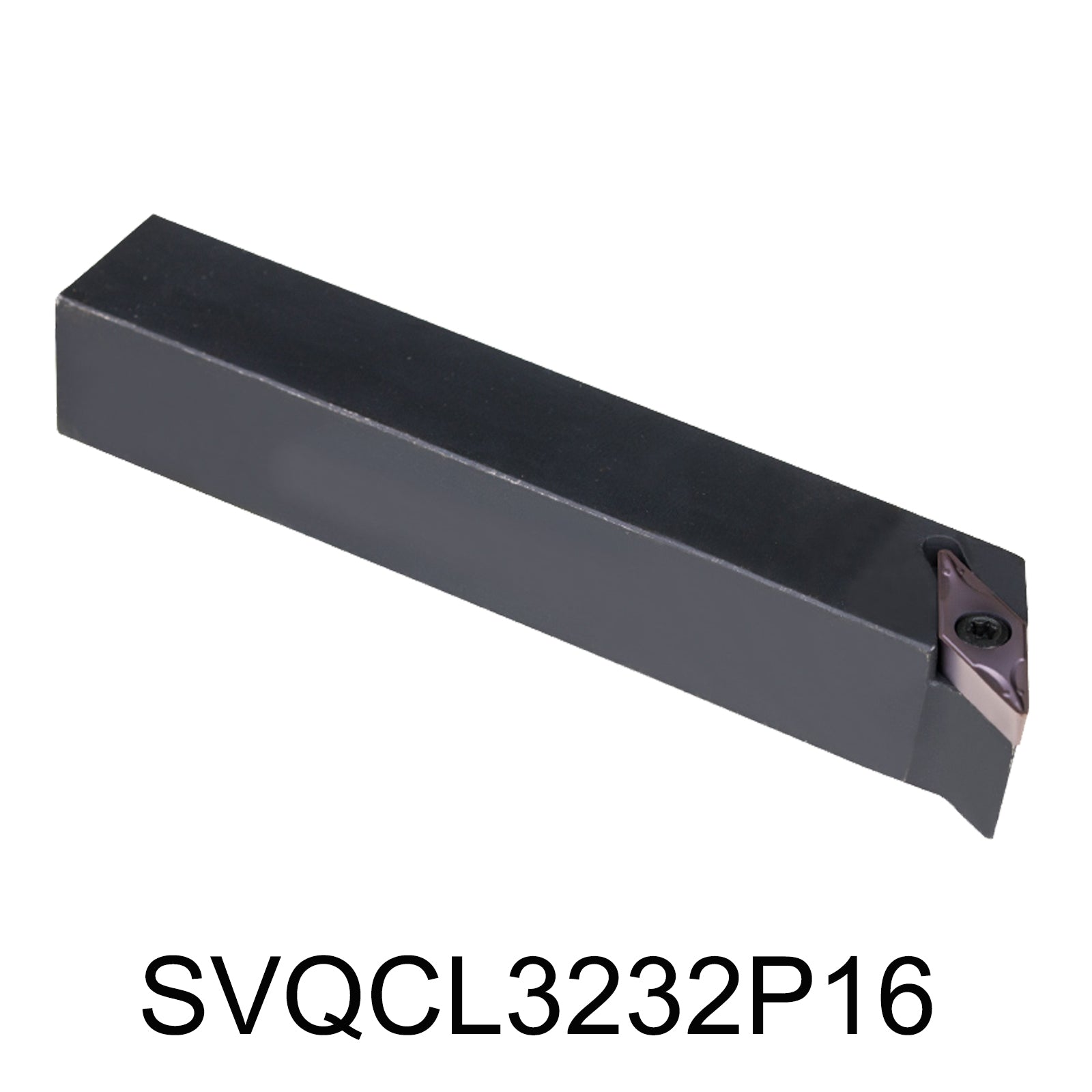

BEYOND SVQCL3232P16 External Turning Tool Holder
Heavy-Duty 32mm Shank for VC..1604 Series Inserts
1. Product Overview
The BEYOND SVQCL3232P16 is a professional-grade external turning tool holder engineered for VC..1604 (VCMT 33x) carbide inserts. Featuring a robust 32mm shank and a 107.5° approach angle, it provides the ultimate stability for deep profiling and medium-finishing operations on large workpieces. This tool is the industrial standard for anti-vibration performance when machining high-tensile steel and stainless steel alloys.
2. Key Features
- Heavy-Duty Alloy Steel: Optimized for high-torque environments with maximum rigidity[cite: 1].
- Deep Profiling Capability: 107.5° lead angle allows for intricate contours while maintaining tool body clearance[cite: 1].
- Precision Screw Clamping: Ensures secure insert seating and an unobstructed chip flow path[cite: 1].
3. Technical Specifications
Screw
35° Shape
107.5° Lead
7° Clear
Left Hand
32x32mm
170mm OAL
VC..16
| Standard | Metric (mm) | Imperial (Inch) |
|---|---|---|
| Shank Size | 32 x 32 mm | 1.26" x 1.26" |
| Total Length | 170 mm | 6.69" |
| Compatible Insert | VCGT/VCMT 1604.. | VCGT/VCMT 33x.. |
Recommended Cutting Parameters
| Material Group | Speed (m/min) | Feed (mm/rev) |
|---|---|---|
| Alloy Steel (P) | 160 - 280 | 0.10 - 0.35 |
| Stainless (M) | 100 - 180 | 0.08 - 0.25 |
Need matching VC..1604 inserts?
View VC1604 Carbide Inserts4. Applications & 5. Compatibility
The SVQCL3232P16 is optimized for heavy-duty profiling on large CNC lathes and vertical turning centers[cite: 1]. It is designed for large-diameter workpieces where maximum tool rigidity is required to prevent chatter and maintain tight tolerances[cite: 1]. Fully compatible with ISO VC..1604 inserts from BEYOND and other leading brands[cite: 1].
7. Why Choose BEYOND?
"Solid construction. Using this on my VTL for profiling steel components. Rigidity is world-class."[cite: 1]
"The 32mm shank holds up perfectly under heavy loads. Excellent price for industrial quality."[cite: 1]
"Great for deep profiling. The tool clearance is exactly as described in the specs."[cite: 1]
8. Expert FAQ
Q: What is the benefit of the 107.5° approach angle?
A: It allows for greater clearance during profiling while keeping the tool body away from the workpiece, reducing the risk of interference[cite: 1].
Q: Can I use 160408 and 160404 inserts?
A: Yes, this holder is compatible with any VC..1604 series insert regardless of the corner radius[cite: 1].
Technical Tips & Maintenance
Grade Insight: Pair with PVD-coated inserts for stainless (BYM series) or CVD-coated for high-speed steel turning (BYP series)[cite: 1].
Equivalent Models: Sandvik SVQCL 3232P 16 | Iscar SVQCL 3232P-16[cite: 1].
Troubleshooting: If vibration occurs, ensure the tool center height is aligned within ±0.1mm and minimize tool overhang[cite: 1].
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
