Buy TTEL2525-3T20 Grooving Lathe Tool Holder – Precision Tooling for CNC Lathe
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

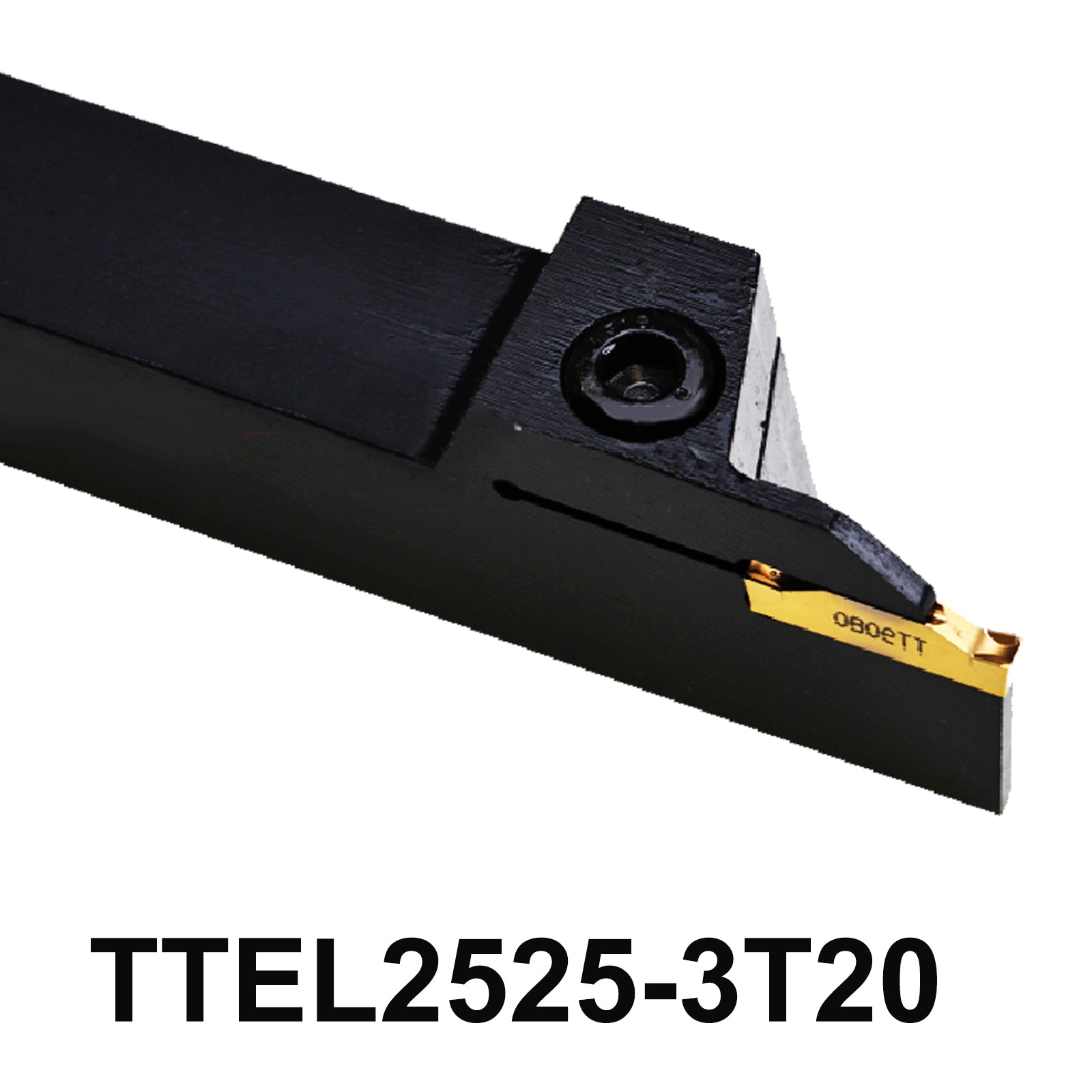

Discover the TTEL2525-3T20 Grooving Lathe Tool Holder,Compatible with TDC3 inserts, engineered for precision and versatility in machining applications.
With a lathe size of 25*25*150mm and a cutting width of 3mm, and a maximum cutting depth of 20mm.this tool holder is designed to deliver optimal performance in tight spaces.
Product parameters:
-
Tool Holder Model: TTEL2525-3T20
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Tool Holder Size : About 25 * 25 * 150 mm
- Cutting width : About 3 mm
- Tmax : 20mm
-
Applicable blade : TDC3
-
Screw : M6*20
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * TTEL2525-3T20 Grooving Lathe Tool Holder
1 * "L" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND TTEL2525-3T20 Grooving Lathe Tool Holder TTEL2525-3T20 TTEL2525 TTEL2525 3T20 CNC Lathe Cutter Holder Machine Metal Tool
Maximize Your CNC Lathe Efficiency with the TTEL2525-3T20 Tool
Key Features and Benefits of the TTEL2525-3T20 Grooving Lathe Tool Holder
5-Point Description
-
Precision Engineering: The TTEL2525-3T20 Grooving Lathe Tool Holder is expertly designed with a lathe size of 25x25x150mm and a cutting width of 3mm, ensuring accurate and efficient grooving for all your machining needs.
-
Versatile Compatibility: This tool is compatible with TDC3 inserts, allowing for a wide range of applications and enhancing the versatility of your CNC lathe operations.
-
Complete Setup Package: Each purchase includes the tool holder, screws (M6*20), and a wrench (L5), providing you with everything you need for a quick and straightforward setup.
-
Durable and Reliable: Constructed from high-quality materials, the TTEL2525-3T20 is built to endure the demands of rigorous machining environments, ensuring long-lasting performance.
-
Enhanced Efficiency: Upgrade your machining capabilities with the TTEL2525-3T20, designed to improve cutting speed and accuracy, making it an indispensable addition to any professional's toolkit.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
