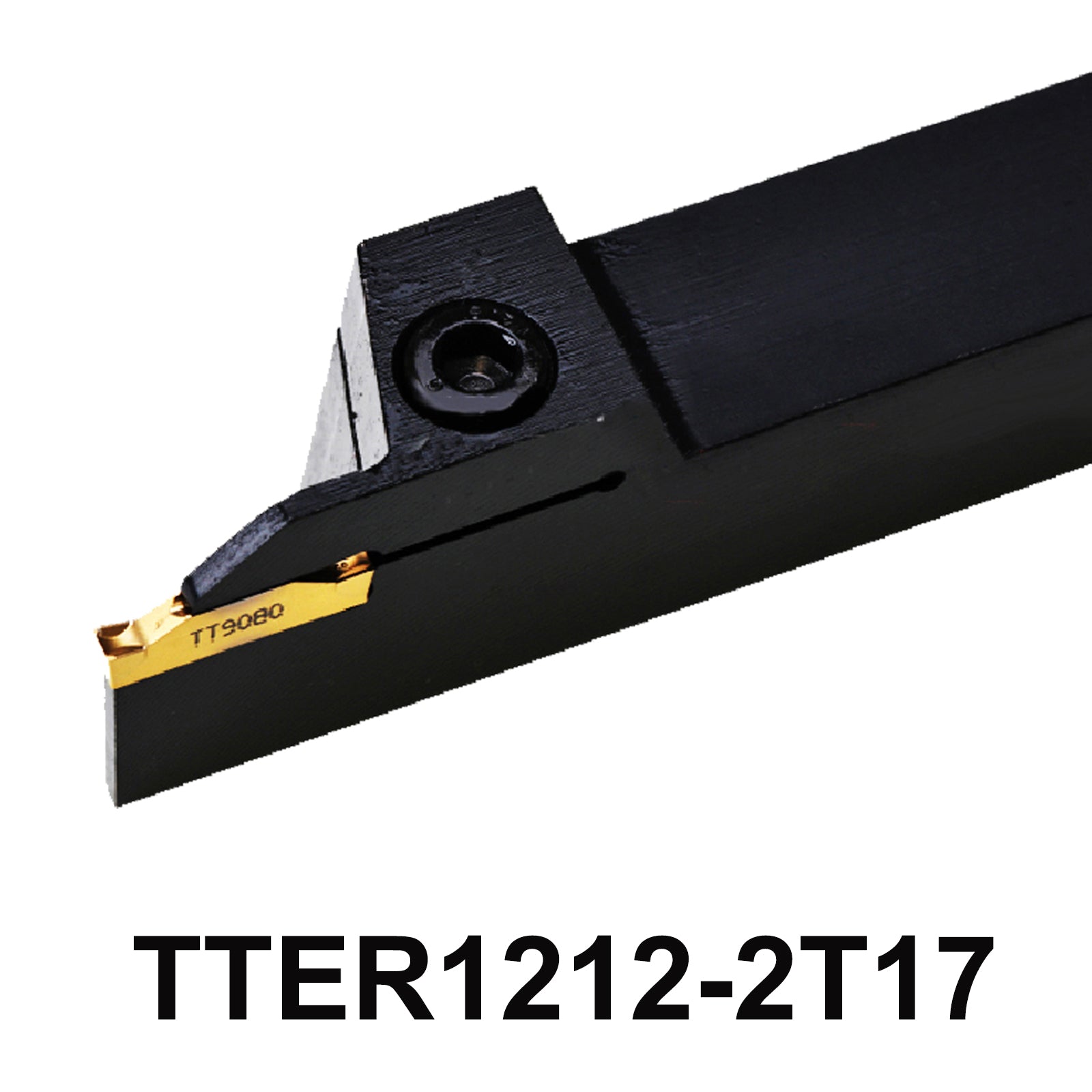

TTER1212-2T17 Lathe Grooving Tool - High Precision Tool for Your CNC Needs
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Discover the TTER1212-2T17 Lathe Grooving Tool,Compatible with TDC2 inserts, engineered for precision and versatility in machining applications.
With a lathe size of 12*12*100mm and a cutting width of 2mm, and a maximum cutting depth of 17mm.this tool holder is designed to deliver optimal performance in tight spaces.
Product parameters:
-
Tool Holder Model: TTER1212-2T17
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Tool Holder Size : About 12 * 12 * 100 mm
- Cutting width : About 2 mm
- Tmax : 17mm
-
Applicable blade : TDC2
-
Screw : M4*16
-
Wrench : L3
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * TTER1212-2T17 Lathe Grooving Tool
1 * "L" Type wrench
1 * M4*16 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND TTER1212-2T17 External Grooving Turning Tools TTER1212-2T17 TTER1212 TTER1212 2T17 CNC Lathe Cutter Holder Machine Metal Tool
Elevate Your Machining with the TTER1212-2T17 Tool Holder
Compact Design for Exceptional Cutting Efficiency
5-Point Description
-
Compact and Efficient Design: The TTER1212-2T17 Lathe Grooving Tool features a size of 12*12*100mm, making it ideal for precision work in confined spaces while maintaining robust cutting performance.
-
Versatile Insert Compatibility: Designed to work with TDC2 inserts, this tool holder allows for flexibility across various materials and applications, enhancing your machining capabilities.
-
Durable Construction: Built from high-quality materials, the TTER1212-2T17 Lathe Grooving Tool ensures long-lasting performance, reducing downtime and increasing productivity.
-
Complete Installation Package: Each unit includes M4*16 screws and an L3 wrench, providing everything you need for a quick and hassle-free setup.
-
Precision Cutting Capability: With a cutting width of 2mm and a maximum cutting depth of 17mm, this cutter holder is engineered to achieve fine details and high-quality finishes in your workpieces.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
