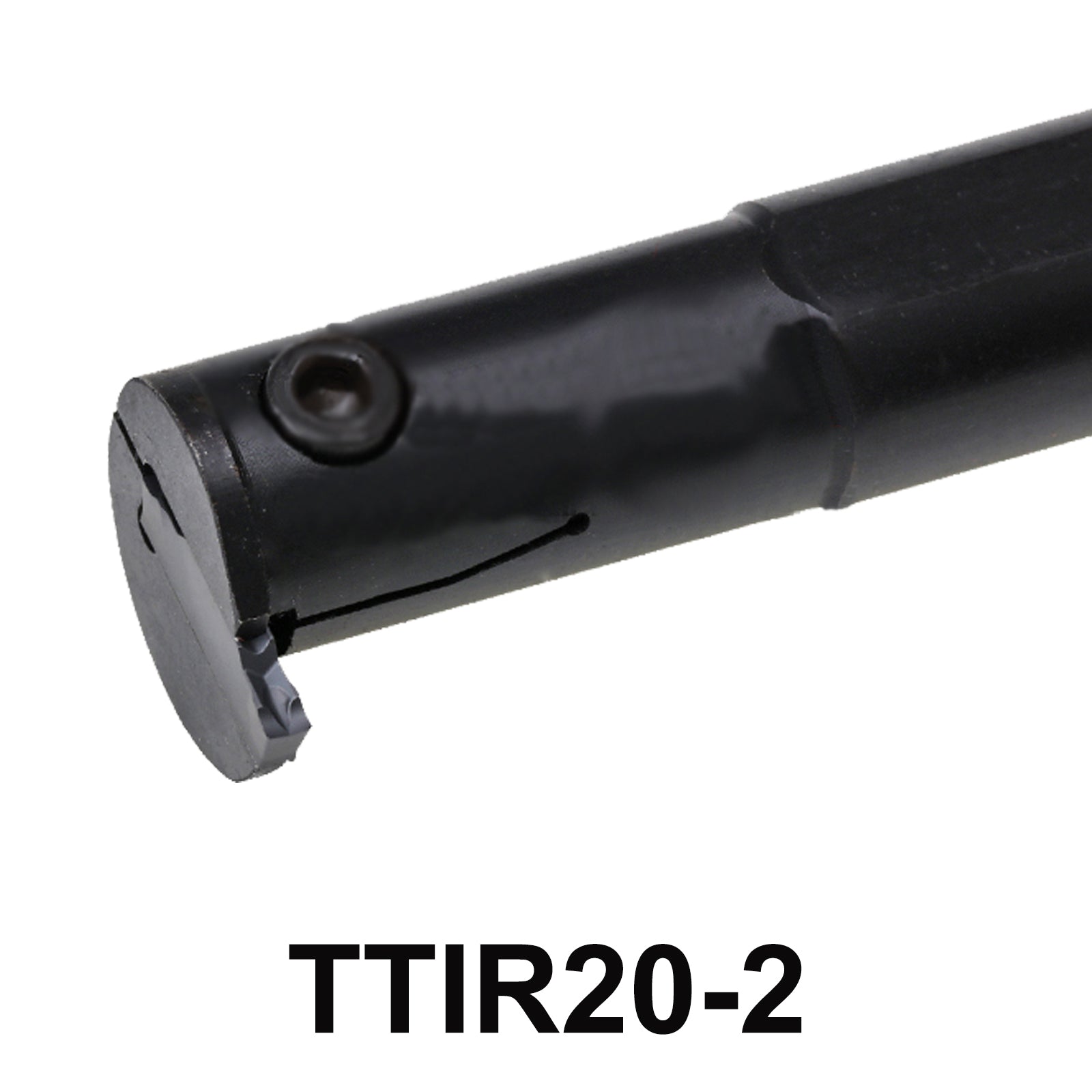

TTIR20-2 Grooving Tool Holder for CNC Lathes – 2mm Cutting Width, 180mm Total Length, TDC2 Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The TTIR20-2 Grooving Lathe Tool Holder is designed for high-precision CNC machining, offering outstanding performance in external grooving, cut-off, and profiling tasks.
With a total length of 180mm and a shank size of 20mm, this durable and reliable tool holder is engineered for 2mm cutting width and a minimum diameter of 25mm,compatible with TDC2 inserts
Product parameters:
-
Tool Holder Model: TTIR20-2
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Total length : 180mm
- Shank : 20mm
- Dmin : 25mm
-
Cutting Width : About 2 mm
-
Applicable blade : TDC2
- Screw : M5*20
- Wrench : L4
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * TTIR20-2 Grooving Lathe Tool Holder
1 * "L" Type wrench
1 * M5*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND TTIR20-2 Grooving Lathe Tool Holder TTIR20-2 TTIR20 TTIR20 2 CNC Lathe Cutter Slotting Holder Machine Boring Bar
-
Maximize CNC Machining Efficiency with the TTIR20-2 Grooving Tool Holder
-
Key Features of the TTIR20-2 CNC Grooving Tool Holder
5-Point Description
-
High Precision Cutting: The TTIR20-2 features a 2mm cutting width that allows for precise grooving, cut-off, and profiling. Achieve clean and sharp grooves with ease, making it ideal for a wide range of CNC machining tasks.
-
Superior Compatibility: Designed for use with TDC2 inserts, this tool holder ensures optimal performance, long tool life, and versatility. The inserts maximize cutting efficiency and minimize downtime, helping you maintain consistent, high-quality results.
-
Durable and Reliable Construction: Built to withstand the demands of high-performance machining, the TTIR20-2 offers a total length of 180mm and a shank size of 20mm for superior rigidity and stability, delivering consistent cutting results in every operation.
-
Easy Installation and Setup: The TTIR20-2 comes with everything you need to get started, including M5*20 screws and an L4 wrench for hassle-free installation. The tool holder is ready to fit your CNC machine with ease, so you can get to work immediately.
-
Versatile and Efficient: With a minimum diameter of 25mm, the TTIR20-2 is suitable for a wide range of materials and machining projects. Whether you're tackling small or large parts, this tool holder ensures smooth, efficient cutting with excellent accuracy.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
