Tungaloy CNMG120404L-S NS9530 Cermet Turning Insert for Precision Finishing

$48.28 USD

Price shown is a starting point. Contact us for a precise quote based on your requirements.

Add to WishlistCompare
WhatsApp Inquiry

american expressmasterpaypalvisaapple paygoogle payshopify pay
Order in the next [totalHours] hours %M minutes to get it between and
Description

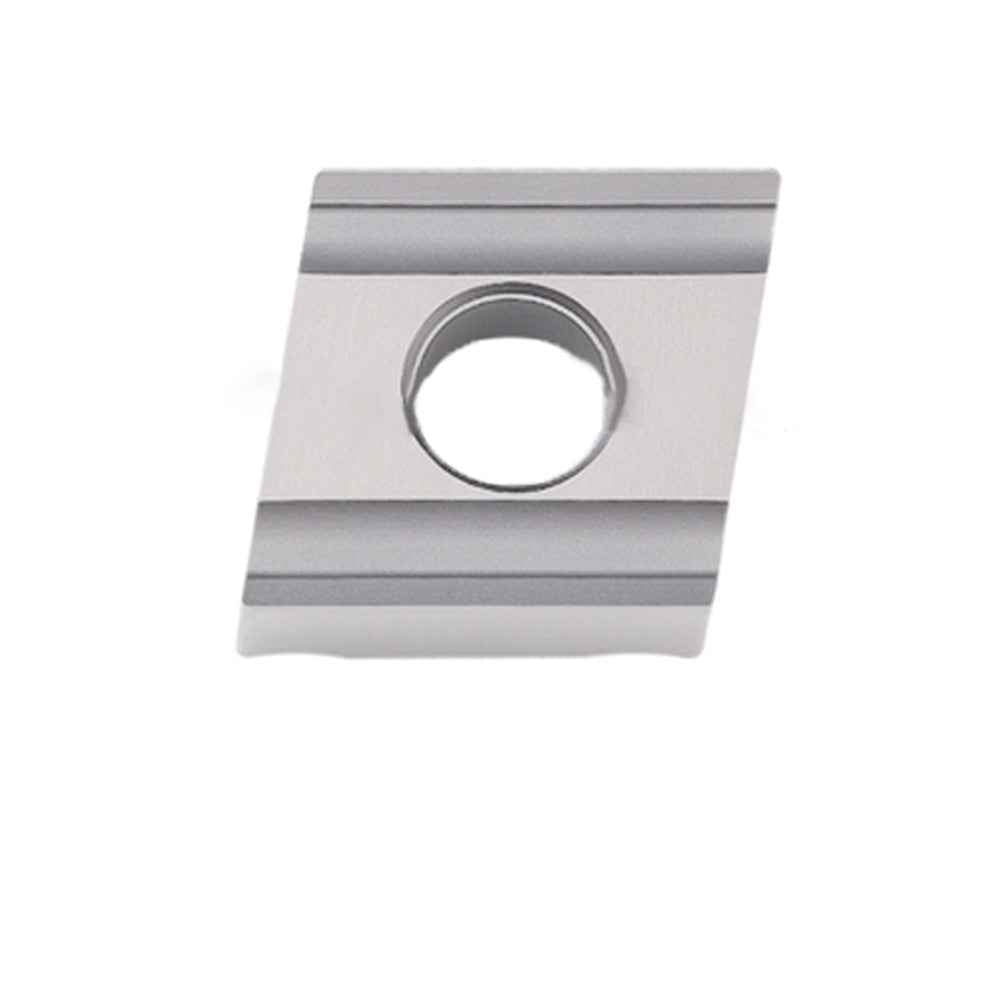

Tungaloy CNMG120404L-S NS9530 Cermet Insert

Mirror Surface Finishing | Left-Hand Orientation | Japan Precision Cermet

Why is the NS9530 grade superior for high-gloss steel finishing?

The Tungaloy CNMG120404L-S NS9530 is a specialized cermet turning insert engineered for high-precision finishing operations. The NS9530 grade is a non-coated cermet that provides exceptional chemical stability, effectively preventing the "built-up edge" (BUE) that often plagues standard carbide tools. This results in an incredibly bright, mirror-like surface finish on carbon and alloy steels. This indexable turning tool features the -S chipbreaker, a geometry optimized for light-duty cutting and superior chip control at small depths of cut. Specifically designed in a left-hand (L) orientation, it is a critical component for specialized CNC machining tasks where precision and aesthetic quality are the highest priorities. Made in Japan, this precision machining tool is the benchmark for high-speed finishing with consistent tool life.

Decoding the CNMG120404L-S Technical Code

C
80° Rhombic
N
0° Clearance
M
M Tolerance
G
Double Sided
12
12.9mm Edge
04
4.76mm Thick
04L
0.4mm Left
-S
S-Breaker

Technical Specs: Metric vs. Imperial Conversion

Technical Feature Metric (Standard) Imperial Equiv.
ISO / ANSI Designation CNMG120404L-S CNMG431L-S
Inscribed Circle (IC) 12.7 mm 1/2 inch
Corner Radius (RE) 0.4 mm 1/64 inch

Can I achieve sub-micron tolerances with this cermet insert?

Yes, the NS9530 Cermet grade is designed for high-dimensional accuracy. Unlike carbide which can "smear" material at high temperatures, cermet maintains a sharp, clean edge. This long-tail keywords industry favorite, the CNMG120404L-S, uses the -S chipbreaker to reduce cutting forces significantly. This is vital for CNC machining of slender or thin-walled parts where vibration (chatter) must be avoided. By using this indexable turning tool, you ensure that your finishing passes remain stable and consistent, providing the longevity and tool life required for high-volume precision machining production of steel components.

Recommended Cutting Parameters for NS9530

Optimized for P (Steel) finishing passes:

  • Cutting Speed (Vc): 120 - 350 m/min (Higher speed = Better finish)
  • Feed Rate (f): 0.05 - 0.20 mm/rev
  • Depth of Cut (ap): 0.2 - 1.5 mm

*Pro Tip: Ensure your tool holder matches the Left-Hand (L) orientation of this insert for correct geometry alignment.*

Verified Reviews from Global Shops

⭐⭐⭐⭐⭐ "Perfect for Left-Hand holders" - James D., UK
"Hard to find good cermets in Left-hand. Tungaloy's NS9530 is fantastic. Our finishing passes on alloy steel look like they've been ground."

⭐⭐⭐⭐⭐ "Brightest finish we've seen" - Hiroshi T., Japan
"We use the -S breaker for light finishing. The chips break perfectly even at 0.2mm depth of cut. Very stable and high tool life."

⭐⭐⭐⭐ "Great for production" - David M., USA
"Very consistent dimensions part after part. Cermet really is the only way to go if you need that mirror shine on carbon steel."

⭐⭐⭐⭐⭐ "Handles high speeds easily" - Matteo L., Italy
"We run these at 300m/min. The edge stays sharp far longer than any coated carbide we've tried. Authentic Japan product."

⭐⭐⭐⭐⭐ "Original Quality" - Tan W., Singapore
"Genuine Tungaloy stock. The CNMG120404L-S is exactly as described. Excellent performance on our precision CNC lathes."

Machinist Technical Q&A

Q: Can I use this Left-Hand insert in a Right-Hand holder?

A: No. Left-hand (L) inserts must be used with Left-hand holders to ensure the cutting edge and chipbreaker are oriented correctly toward the workpiece.

Q: Is NS9530 good for stainless steel?

A: It can work for light finishing of some stainless grades, but it is primarily optimized for P (Steel) and K (Cast Iron) materials.

Q: Why choose cermet over coated carbide?

A: Cermet has lower affinity for steel, meaning it resists chemical wear and built-up edge, which is the secret to achieving a superior "shiny" finish.

Expert Insight: Cermet Finishing Advantage

For precision machining where aesthetic quality is as important as dimensional accuracy, Cermet (NS9530) is the superior choice. It allows for high-speed finishing that leaves a professional, high-gloss surface without the need for additional polishing stages.

© Technical Content by cnchome-beyond.com - Japan Tooling Excellence

Technical FAQ & Buying Guide

Are your carbide inserts interchangeable with major brands like Sandvik, Iscar, or Kennametal?

Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.

How do I choose the correct insert grade and chipbreaker for machining Stainless Steel (M) vs. Carbon Steel (P)?

We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:

  • For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
  • For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
What are the recommended cutting speed (Vc) and feed rate (f) parameters to maximize tool life?

The optimal cutting parameters vary depending on the workpiece hardness and operation type:

  • For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
  • For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
