Description

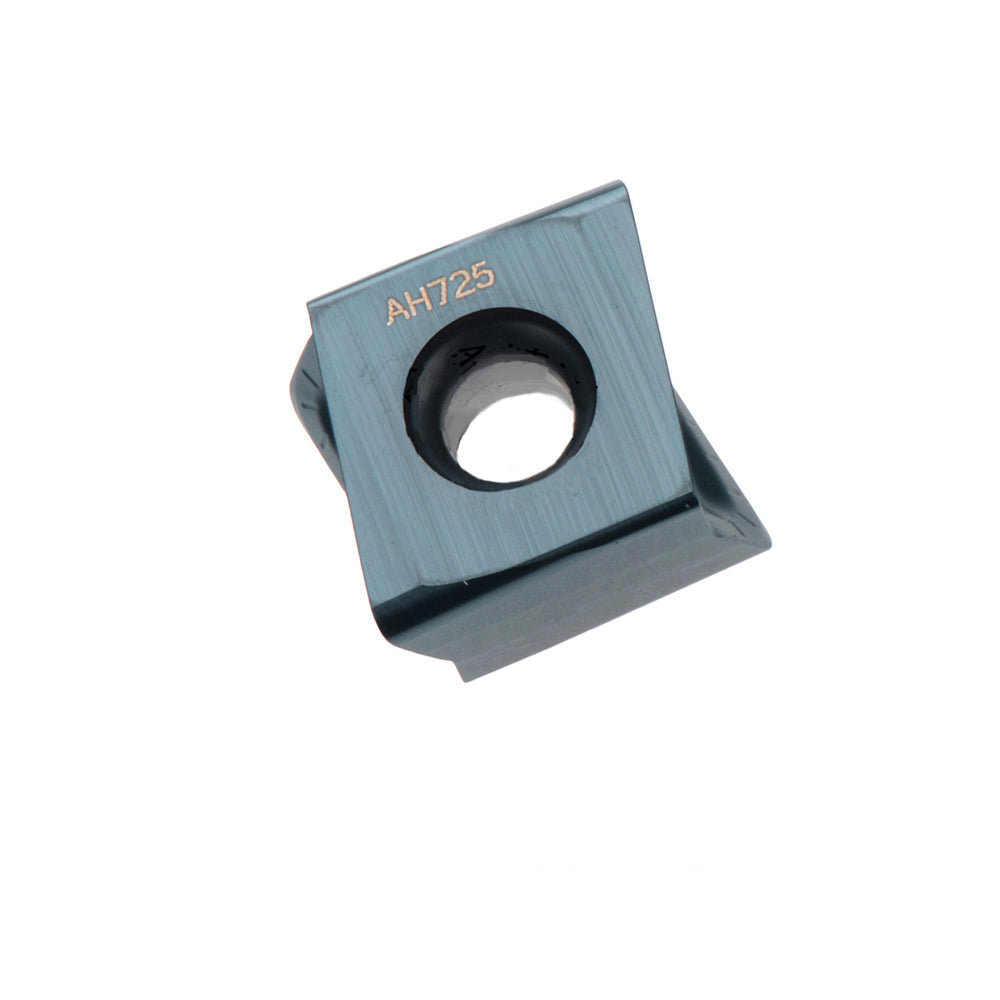

Tungaloy LMMU160916PNER-MJ AH725 Insert

TungForce-Rec Double-Sided Milling | MJ Chipbreaker | Made in Japan

What is the best double-sided milling insert for heavy shoulder milling?

The Tungaloy LMMU160916PNER-MJ AH725 is a high-efficiency indexable milling insert from the renowned TungForce-Rec line. Designed with a robust double-sided structure, it offers 4 economical cutting edges while maintaining the rigidity of a single-sided insert. The AH725 PVD coated grade is a versatile powerhouse, combining a tough carbide substrate with a multilayered (Ti, Al)N coating, making it exceptional for machining general steels and stainless steels. The MJ chipbreaker is specifically tailored for medium-duty cutting, providing an ideal balance between sharpness and edge strength in CNC milling operations. This Japan-made milling insert is the professional choice for achieving high metal removal rates (MRR) with superior surface finish.

Decoding the LMMU160916PNER-MJ Nomenclature

L
Shape
M
Clearance
M
Tolerance
U
Fixing
16
Length
09
Thickness
16
Radius
MJ
Breaker
AH725
Grade

Technical Specs: Metric vs. Imperial Conversion

ISO Parameter Metric Designation Imperial Designation
Cutting Edge Length 16.0 mm 0.630 inch
Insert Thickness 9.53 mm 3/8 inch
Corner Radius (RE) 1.6 mm 1/16 inch
Wiper Width (BS) 1.2 mm 0.047 inch

Recommended Cutting Parameters (AH725 Grade)

  • Cutting Speed (Vc): 100 - 250 m/min (Carbon/Alloy Steel)
  • Feed per Tooth (fz): 0.10 - 0.25 mm/t (Optimized for MJ Chipbreaker)
  • Machining Type: Shouldering, Slotting, and Ramping.

*Pro Tip: Use AH725 for wet or dry cutting. For maximum tool life in stainless steel, internal coolant is highly recommended.*

Global Verified Customer Reviews

⭐⭐⭐⭐⭐ "Economic and Tough" - Dieter B., Germany
"4 edges per insert makes this very cost-effective. The AH725 grade handles our 4140 steel blocks perfectly."

⭐⭐⭐⭐⭐ "Great for Stainless" - Kenji Y., Japan
"I use these for 304 stainless milling. The MJ breaker handles chips better than any competitors I've tried."

⭐⭐⭐⭐ "Heavy Removal Rates" - Mark S., USA
"We pushed the feed rate on a large fixture job. The inserts didn't chip even with heavy interrupted cuts."

⭐⭐⭐⭐⭐ "Perfect Surface Finish" - Carlos M., Mexico
"The 1.6mm radius gives a very strong corner and a surprisingly smooth wall finish on our shoulder mill."

⭐⭐⭐⭐⭐ "Fast Delivery & Genuine" - William R., UK
"Authentic Tungaloy stock. The PVD coating AH725 is a lifesaver for our general machine shop."

Technical Tooling Q&A

Q: Can I use this for high-speed milling in aluminum?

A: AH725 is a PVD coated carbide designed for steel and stainless. For aluminum, we recommend an uncoated grade like KS05F for better chip flow.

Q: Is the LMMU16 insert compatible with standard 90-degree holders?

A: Yes, it is designed for the TungForce-Rec series of shoulder mills to achieve precise 90-degree shoulders.

Q: What makes the MJ chipbreaker different?

A: The MJ geometry is a general-purpose breaker that combines a sharp rake angle with a stable land to prevent edge chipping during medium-range milling.

Expert Tooling Tip: Grade Optimization

In high-performance milling, AH725 is the "Swiss Army Knife" of grades. It offers superior resistance to thermal cracking. For long-running production in stable steel cutting, you might compare this with CVD grades, but for versatile CNC shops, AH725 remains the most reliable performer.
