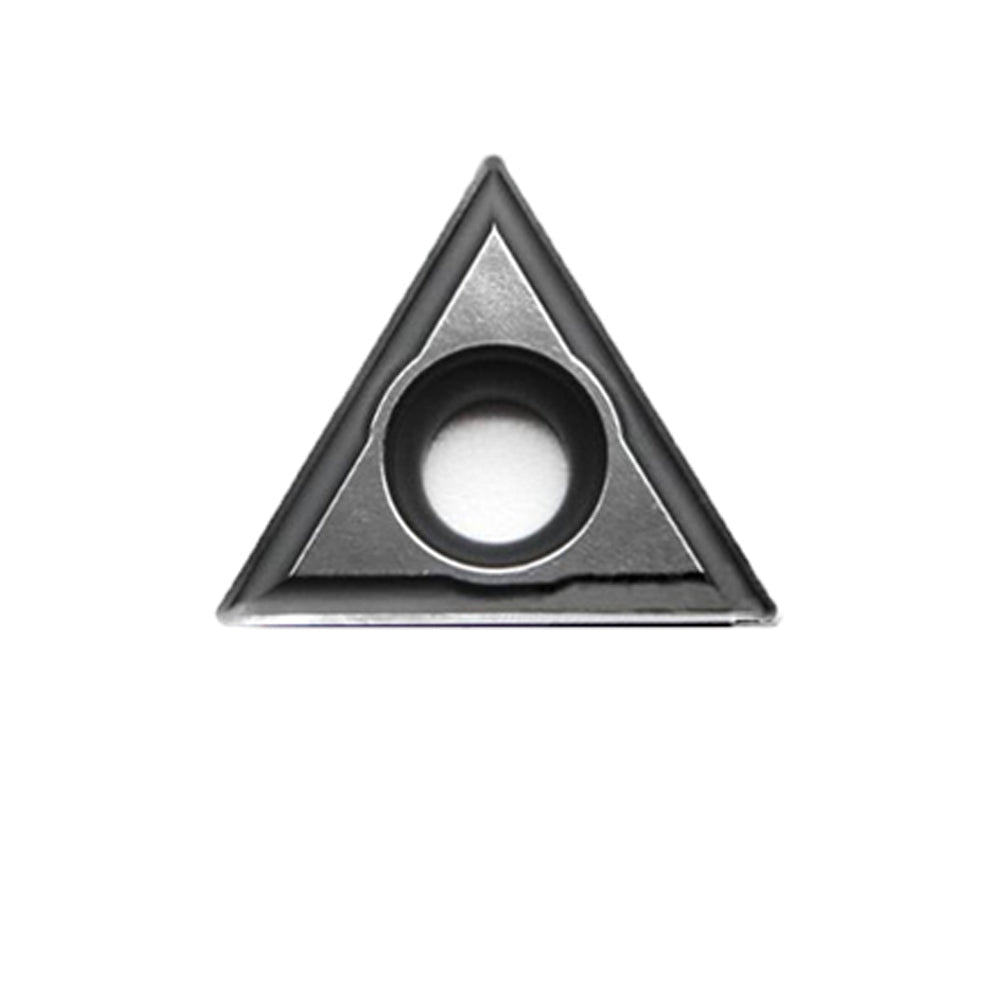

Tungaloy TCMT090202-24 NS9530 Turning Insert
Precision Steel Finishing | Premium NS9530 Cermet | 0.2mm Radius
How do I achieve the best surface finish on steel parts?
The Tungaloy TCMT090202-24 NS9530 is a high-precision triangular turning insert engineered for high-gloss finishing of ISO P (Steel) and ISO K (Cast Iron). Featuring the NS9530 cermet grade, this insert provides superior chemical stability and resistance to built-up edge, which is essential for maintaining dimensional accuracy and achieving a mirror-like surface luster. The 0.2mm corner radius and -24 chipbreaker allow for exceptionally light depths of cut and precise chip control. 100% Made in Japan, it is the industrial standard for fine-turning applications.
NS9530 Cermet Grade
A versatile uncoated cermet grade with incredible fracture resistance. It maintains sharp cutting edges much longer than traditional carbide during finishing passes.
-24 Precision Chipbreaker
Designed for medium-to-light cutting, the -24 breaker minimizes cutting forces and prevents chip tangling on delicate workpieces.
Ultra-Sharp 0.2mm Radius
The small 0.2mm (02) corner radius is perfect for sharp corners and internal boring where low radial pressure is required to avoid vibration.
Decoding TCMT090202-24 Technical Nomenclature
T
Triangular
C
7° Relief
M
Tolerance
T
Hole/Fix
09
9.525mm L
02
2.38mm Thk
02
0.2mm Rad.
-24
Chipbreaker
3. Technical Specifications: Metric vs. Imperial
| Parameter |
Metric (ISO) |
Imperial Equivalent |
| Cutting Edge Length (L) |
9.6 mm |
TCMT 1.8(1.5)0.5 |
| Inscribed Circle (IC) |
5.56 mm |
7/32" |
| Thickness (S) |
2.38 mm |
3/32" |
| Corner Radius (RE) |
0.2 mm |
.008" |
Recommended Cutting Parameters (NS9530)
-
Cutting Speed (Vc): 150 - 300 m/min
-
Feed Rate (f): 0.05 - 0.20 mm/rev
-
Depth of Cut (ap): 0.2 - 1.5 mm
*Pro Tip: For best surface results, use dry air blow to avoid thermal shock to the cermet substrate.*
4. Product Applications
- Precision external turning and internal boring of carbon steel.
- Finishing alloy steels and sintered materials.
- Automotive and general engineering parts requiring high shine.
- Continuous light cutting where dimensional precision is key.
5. Tool Compatibility
Compatible with all standard Tungaloy / ISO boring bars and external turning holders designed for TCMT 0902 inserts (5.56mm IC).
7. Why Choose CNCHome-Beyond?
Genuine Tungaloy
100% Original Japanese stock
B2B Industrial Support
Expert technical assistance
Fast Shipping
Global logistics for factories
Reliable Supply
Consistent inventory availability
Global Professional Reviews
⭐⭐⭐⭐⭐ "Mirror Finish Success" - Hans W., Germany
"The NS9530 cermet is fantastic. We used this for a batch of steel shafts and the finish was mirror-like. Very sharp edges."
⭐⭐⭐⭐⭐ "Perfect for Boring" - Sarah M., UK
"The 0.2mm radius is perfect for my small boring operations. No vibration and the tool life is impressive for finishing."
⭐⭐⭐⭐ "Great Japanese Quality" - H. Sato, Japan
"Consistent size control. The -24 chipbreaker handles small depths of cut very well. Original Tungaloy is reliable."
⭐⭐⭐⭐⭐ "B2B Fast Service" - Lim K., Singapore
"CNCHome-Beyond provided authentic stock quickly. This TCMT 090202 is our standard for fine finishing."
⭐⭐⭐⭐⭐ "Precision Choice" - Luca F., Italy
"Excellent value. The cermet grade stays sharp much longer than coated carbide when doing final passes on mild steel."
8. FAQ - Turning Support
Q: Why use cermet instead of carbide for steel?
A: Cermet (NS9530) has a low chemical affinity for steel, which means less chip welding (built-up edge) and a much cleaner surface finish.
Q: Can I use this for roughing?
A: No, cermet is brittle compared to carbide. It should be reserved for finishing or light cutting where surface quality and size control are the priorities.
Q: Does this fit my boring bar?
A: This insert fits any TCMT 0902 / TCMT 1.8(1.5) size holder. Please check your tool holder's pocket size before ordering.
Expert Tip: Cermet Finishing
The **NS9530 Cermet** is your best friend for dimensional accuracy. It thrives at higher speeds where carbides might overheat. For the best result, keep a consistent, light feed and use an air blast. Trust **Tungaloy Japan** for high-precision components. Avoid using this for interrupted cuts.
