SUMITOMO VNMG160408N-GU AC630M Stainless Steel Turning Insert (VNMG 160408 / VNMG 332 Equivalent)
Price shown is a starting point. Contact us for a precise quote based on your requirements.
SUMITOMO VNMG160408N-GU AC630M Absotech Carbide Stainless Steel Turning Insert
1. Product Overview
"Which indexable turning insert provides the longest tool life and best chip control when medium-roughing gummy austenitic stainless steels or hard duplex alloys under heavy thermal load?"

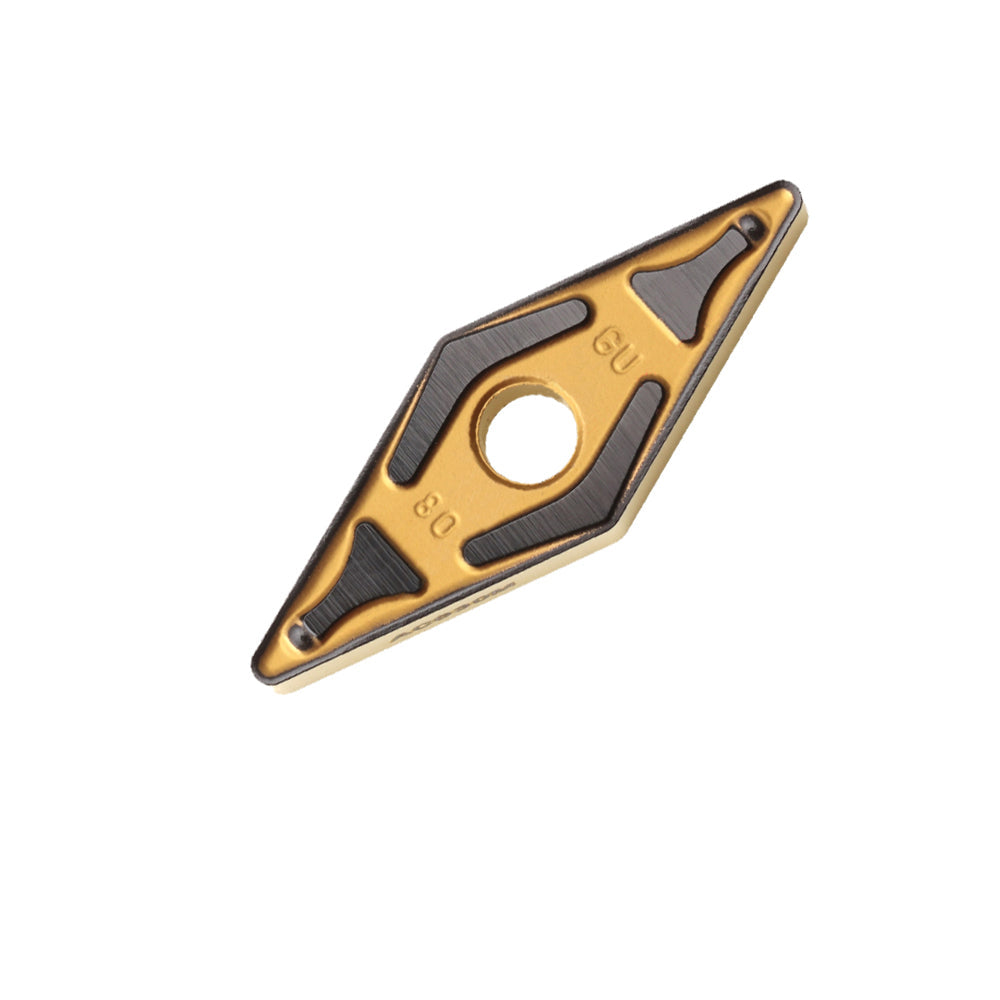

The SUMITOMO VNMG160408N-GU AC630M is a premium, 35° rhombic double-sided indexable turning insert engineered precisely to conquer the severe work-hardening and built-up edge (BUE) tendencies of stainless steels. Optimized for the ISO M10–M30 spectrum (including AISI 304, 316, duplex 2205, and precipitation-hardening heat-resistant alloys), this insert features Sumitomo's breakthrough AC630M Absotech Coating Technology. By deploying an ultra-smooth, highly structural coating matrix, it maximizes adhesion resistance and prevents premature notch wear along the cut-line boundary. The heavy-duty -GU Type Chipbreaker delivers an optimized cutting edge land combined with a wide, open chip pocket, forcing excellent chip breaking and lower cutting forces during variable depths of cut and demanding medium-roughing profiling operations.
2. Product Key Features
- Absotech Advanced Coating Matrix: Engineered surface layer prevents chip welding and micro-chipping, drastically extending corner predictability in high-adhesion alloy zones.
- Tough, Fracture-Resistant Carbide Substrate: Provides massive core integrity to endure thermal cycling and interrupted cuts common in deep profiling operations.
- Optimized -GU Medium-Roughing Geometry: A perfectly balanced cutting edge design that keeps cutting temperatures minimal while remaining sharp enough to reduce work hardening.
- Double-Sided 4-Corner Economics: Maximizes machining profitability with 4 indexable cutting edges ground to strict dimensional standards for excellent indexing repeatability.
3. Technical Specifications & Dimension Matrix
🔍 ISO / ANSI Industrial Nomenclature Decoding Matrix
| Dimension Parameter | Metric Specification (ISO) | Imperial Equivalent Benchmark (ANSI) |
|---|---|---|
| Product Designation Model | VNMG160408N-GU | VNMG 332-GU (VNMG332) |
| Inscribed Circle (IC) Diameter | 9.525 mm | 0.375 in (3/8") |
| Insert Thickness (s) | 4.76 mm | 0.1875 in (3/16") |
| Nose Corner Radius ($r_{\epsilon}$) | 0.8 mm | 0.0315 in (2/64") |
📊 Recommended Technical Cutting Parameters
| Workpiece Material Category | Cutting Speed ($v_c$) | Feed Rate per Revolution ($f$) / Depth ($a_p$) |
|---|---|---|
| Austenitic Stainless Steel (AISI 304 / 316) | 120 - 240 m/min (390 - 785 SFM) | 0.15 - 0.40 mm/rev (0.006 - 0.016 ipr) ap: 0.8 - 3.5 mm (0.031 - 0.138 in) |
| Duplex & Super Duplex Stainless (Alloy 2205 / SAF 2507) | 80 - 160 m/min (260 - 525 SFM) | 0.12 - 0.35 mm/rev (0.005 - 0.014 ipr) ap: 0.6 - 3.0 mm (0.024 - 0.118 in) |
This VNMG 1604 / VNMG 33 double-sided core requires rigid, play-free negative pocket setups to combat stainless steel strain hardening forces.
Browse Matching MVJNR / MVQNR / MVUNR External Toolholders →4. Product Application Scenarios
The AC630M high-toughness stainless steel turning grade delivers superior performance across demanding processing lines:
5. Toolholder & Equipment Compatibility
Crafted to strict standard global indexable interface geometry, this insert matches seamlessly with international tooling blocks:
- Turning Shank Blocks: Fits standard negative 35° profile external shanks (MVJNR/L, MVUNR/L, MVQNR/L) and rigid internal indexable boring bars designed for VNMG1604 or VNMG332 insert dimensions.
- CNC Production Platforms: Built for high-rigidity CNC turning centers and automated multi-tasking machines (Mazak Integrex, Okuma LB, Doosan Lynx, Haas ST, DMG Mori) executing advanced alloy parts.
6. Industrial Grade Comparison Matrix
| Brand | Equivalent Grade Reference | Application Range | Coating Technology |
|---|---|---|---|
| SUMITOMO | AC630M (Target) | ISO M10 - M30 / Heavy Stainless Steel & Exotic Alloy Profiling | Absotech Premium High-Adhesion Anti-Chipping Barrier |
| Sandvik Coromant | GC2025 / GC2220 | ISO M15 - M30 / Dedicated Stainless Steel Medium Turning | Inveio® Crystalline Coating for anti-adhesion optimization |
| Kennametal | KCM25B / KCM35 | ISO M20 - M35 / Tough Stainless & Duplex Alloy Milling/Turning | Advanced multi-layer PVD/CVD thermal deformation shield |
| Iscar | IC6025 / IC6015 | ISO M10 - M25 General Purpose Stainless Steel Turning Matrix | SUMO TEC high-smoothness treatment reducing built-up edge |
7. Why Choose Us & Verified Global Performance Evaluations
Real feedback from high-volume job shops validating predictable edge wear and reduced work-hardening failures:
"We run these VNMG 332-GU inserts in AC630M on our 316L marine hinge pins. Stainless steel used to chew up our edges with massive built-up edge and notch wear. These Sumitomo inserts hold up significantly better, maintaining a highly predictable tool life shift after shift."
"Hervorragende Standzeit bei Duplex-Edelstahl (1.4462). Der -GU Spanbrecher bricht die zähen Späne auch bei unregelmäßiger Schnitttiefe sehr zuverlässig. Absotech-Technologie verhindert effektiv Kaltverschweißungen auf der Spanfläche."
"Ottimo inserto per la sgrossatura media di flange in acciaio inox 304. Basso livello di vibrazioni e tagliente molto robusto che contrasta bene l'incrudimento del materiale."
"SUS304/SUS316の加工で長年愛用しています。他社製チップで多発していた境界摩耗（ノッチ摩耗）が、AC630Mにしてから劇的に減少しました。-GUブレーカの切れ味と刃先強度のバランスが絶妙で、ステンレス加工には欠かせません。"
8. Technical Machining FAQ
Q: Why is the AC630M grade uniquely preferred over standard steel grades for stainless steel operations?
A: Stainless steel features high ductility and poor thermal conductivity, which channels intensive cutting heat back into the insert corner while promoting chemical chip welding. The AC630M grade employs a specialized anti-adhesion coating alongside a highly fracture-tough substrate engineered to withstand work-hardening pressure and boundary notch friction, unlike typical steel grades (like AC820P) which focus purely on high-velocity crater wear resistance.
Q: What is the ideal way to configure chip control when roughing long-chipping austenitic alloys?
A: Ensure your depth of cut ($a_p$) stays above 0.8mm to engage the wide chip pocket of the -GU geometry fully. If chips begin to string or bird-nest, incrementally increase your feed rate ($f$) to force the material against the breaker land, which effectively triggers safe chip fracture segments.
Q: Does this insert support interrupted profiling cuts on stainless steel forgings?
A: Yes, the combination of a high-toughness carbide core and the reinforced -GU edge land absorbs shock forces efficiently, making it highly reliable for light-to-medium interrupted cuts without risking immediate corner breakage.
💡 Technical Grade Comparison & Troubleshooting Guide
Workpiece Material Matrix (ISO Classifications): Core application parameters map directly within the ISO M10 to M30 matrix band. Extensively optimized for austenitic stainless steels (AISI 304, 304L, 316, 316L), ferritic/martensitic families, and complex duplex/super duplex alloys (Alloy 2205, 2507) that present intense thermal work-hardening challenges.
Machining Troubleshooting Guide: If severe built-up edge (BUE) or chip welding degrades your surface finish, consider increasing your surface speed ($v_c$) to pass the adhesion temperature zone, or use high-pressure flood coolant. If boundary notch wear develops rapidly along the depth-of-cut line, implement a variable depth-of-cut programming pattern or slightly reduce the feed rate ($f$).
Authorized Reference Documentation & Endorsements: Dimensional properties, clearance bounds, and alphanumeric classifications line up fully with standard global ISO/ANSI geometric definitions. Performance thresholds and testing boundaries are cross-referenced directly with empirical field reports published by Sumitomo Electric Hardmetal Corporation.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
