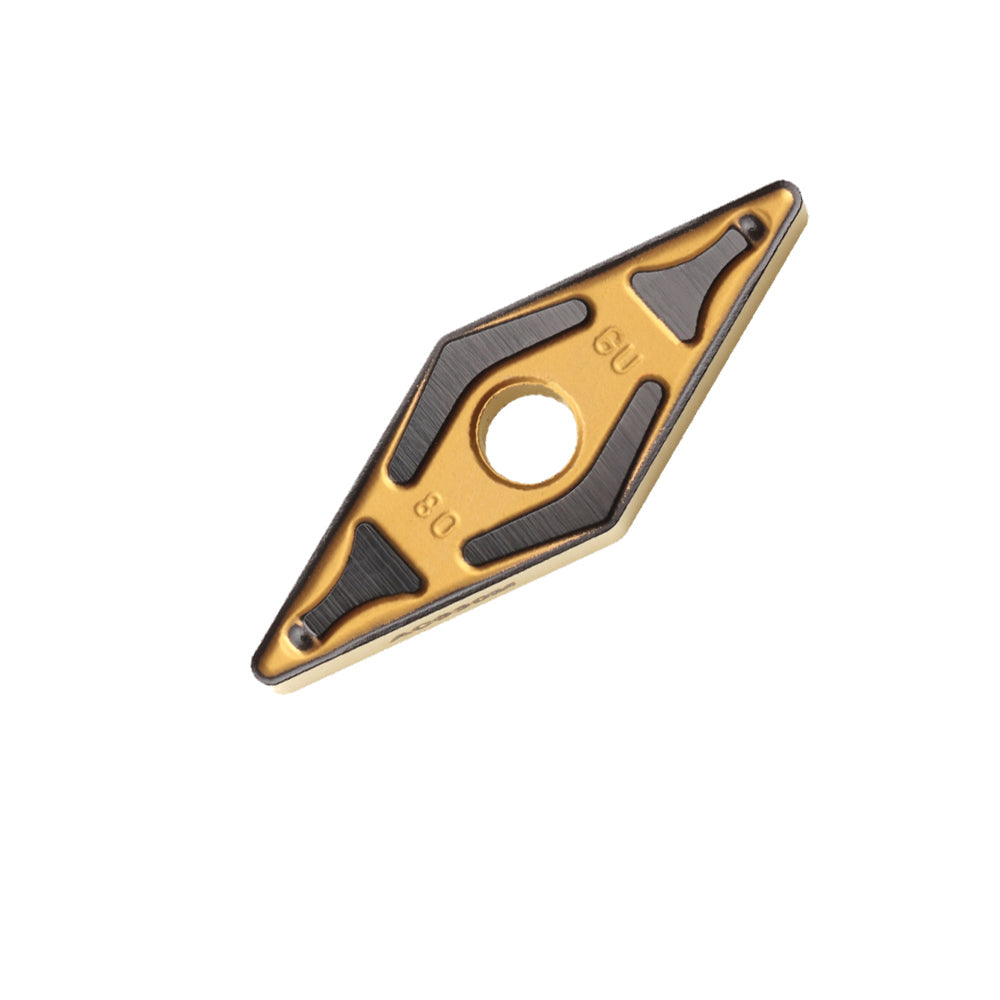

SUMITOMO VNMG160408N-GU AC700G Cast Iron Turning Insert (VNMG 160408 / VNMG 332 Equivalent)
Price shown is a starting point. Contact us for a precise quote based on your requirements.
SUMITOMO VNMG160408N-GU AC700G Super Absotech CVD Carbide Cast Iron Turning Insert
1. Product Overview
"Which high-speed indexable carbide insert provides the ultimate wear resistance and edge security when profiling abrasive gray iron or interrupted ductile iron castings?"
The SUMITOMO VNMG160408N-GU AC700G is a heavy-duty, 35° rhombic negative double-sided carbide turning insert meticulously engineered to handle highly abrasive, high-temperature cast iron machining environments. Optimized for the ISO K10–K30 material spectrum (including FC gray cast iron, FCD ductile/nodular iron, and malleable castings), this insert features Sumitomo's groundbreaking AC700G Super Absotech Technology. By integrating an ultra-thick, highly oriented micro-grained $\alpha$-$\text{Al}_2\text{O}_3$ coating layer with a reinforced adhesion boundary, it provides maximum thermal insulation, preventing crater wear and thermal cracking during aggressive continuous dry cutting. Paired with the versatile -GU Type Chipbreaker, it introduces a fortified cutting edge land that reliably manages hard skin scale inclusions and irregular casting variations while ensuring smooth chip control across medium-to-rough profiling.
2. Product Key Features
- Super Absotech CVD Alumina Shield: An ultra-smooth, thick crystalline layer provides industry-leading resistance to mechanical abrasion and thermal stress fatigue common in dry iron cycles.
- High-Hardness Substrate Matrix: Formulated with a dedicated carbide substrate tailored for cast iron, delivering massive resistance against plastic deformation at elevated surface speeds ($v_c$).
- Fortified -GU Chip Geometry: A stable, multi-purpose edge profile that balances structural strength with low cutting pressure, mitigating micro-chipping during light interruptions.
- 4 Precision-Ground Corners: Double-sided layout offers four premium cutting corners, drastically optimizing operational efficiency and lowering tooling expenses per part.
3. Technical Specifications & Dimension Matrix
🔍 ISO / ANSI Industrial Nomenclature Decoding Matrix
| Dimension Parameter | Metric Specification (ISO) | Imperial Equivalent Benchmark (ANSI) |
|---|---|---|
| Product Designation Model | VNMG160408N-GU | VNMG 332-GU (VNMG332) |
| Inscribed Circle (IC) Diameter | 9.525 mm | 0.375 in (3/8") |
| Insert Thickness (s) | 4.76 mm | 0.1875 in (3/16") |
| Nose Corner Radius ($r_{\epsilon}$) | 0.8 mm | 0.0315 in (2/64") |
📊 Recommended Technical Cutting Parameters
| Workpiece Material Category | Cutting Speed ($v_c$) | Feed Rate per Revolution ($f$) / Depth ($a_p$) |
|---|---|---|
| Gray Cast Iron (GG25 / Class 35 Abrasive Matrix) | 200 - 450 m/min (650 - 1475 SFM) | 0.15 - 0.45 mm/rev (0.006 - 0.018 ipr) ap: 0.8 - 4.0 mm (0.031 - 0.157 in) |
| Ductile / Nodular Iron (GGG40 / GGG60 / 65-45-12 Grade) | 150 - 350 m/min (490 - 1150 SFM) | 0.12 - 0.40 mm/rev (0.005 - 0.016 ipr) ap: 0.6 - 3.5 mm (0.024 - 0.138 in) |
This VNMG 1604 / VNMG 33 indexable profile requires specialized rigid lever or wedge-clamp tooling bodies to withstand heavy cast iron cutting forces.
Browse Matching MVJNR / MVUNR / MVQNR Lathe Toolholders →4. Product Application Scenarios
The AC700G high-wear resistance matrix excels across structural cast automotive and industrial components:
5. Toolholder & Equipment Compatibility
Compliant with standard global indexable interface geometry, this insert matches seamlessly with international tooling blocks:
- Turning Shank Assemblies: Fits all standard negative 35° profile external shanks (MVJNR/L, MVUNR/L, MVQNR/L) and rigid internal indexable boring bars designed for VNMG1604 or VNMG332 insert dimensions.
- CNC Production Platforms: Built for high-power CNC turning centers and automated vertical turret lathes (VTLs) (Doosan Puma, Mazak Mega Turn, Haas, DMG Mori, Okuma) executing intense metal cutting programs.
6. Industrial Grade Comparison Matrix
| Brand | Equivalent Grade Reference | 切割材料分类 (Application Range) | Coating Technology |
|---|---|---|---|
| SUMITOMO | AC700G (Target) | ISO K10 - K30 / High-Velocity Gray & Ductile Iron Machining | Super Absotech Ultra-Thick Al2O3-TiCN Premium CVD Armor |
| Sandvik Coromant | GC3225 / GC3210 | ISO K15 - K25 / High-Performance Cast Iron Turning Matrix | Inveio® Alumina Crystal-Orientation Technology Coating |
| Kennametal | KCK20B / KCK15 | ISO K10 - K25 / Abrasive Gray and Nodular Iron Turning | Multilayer CVD coating with high-cohesion structural layer |
| Iscar | IC5010 / IC5025 | ISO K10 - K30 General Purpose Cast Iron Turing Matrix | SUMO TEC high-density crystal stress-relieved CVD coating |
7. Why Choose Us & Verified Global Performance Evaluations
Real feedback from industrial machine shops operating high-production cast iron milling and turning operations:
"We turn class 40 gray iron flywheels on a vertical lathe. Standard inserts suffered massive flank abrasion within 15 parts. Switching to the Sumitomo VNMG 332-GU in AC700G boosted our tool life to 45 parts per corner. It handles the blistering heat without breaking a sweat."
"Phantastische Verschleißfestigkeit bei Sphäroguss (GGG60). Der -GU Spanbrecher hält die Schnittkräfte niedrig, was bei tiefen Kopierschnitten entscheidend ist. Absotech-Beschichtung blättert selbst bei starker thermischer Wechselbelastung nicht ab."
"Ottimo inserto per la sgrossatura dei tamburi freno in ghisa grigia. Resistenza all'usura abrasiva eccezionale anche lavorando a secco ad alta velocità."
"自動車用ブレーキローターの量産ライン（FCD450断続切削）で導入。従来のチップは熱亀裂によるチッピングが多発していましたが、AC700Gに変更後は熱衝撃に非常に強く、突発欠損が皆無になり機械の稼働率が向上しました。"
8. Technical Machining FAQ
Q: Why is the AC700G grade specifically optimized for cast iron instead of steel?
A: Cast iron machining generates intense abrasive friction due to hard carbide clusters and sand particles, along with high localized heat. The AC700G grade utilizes an extra-thick, hard Alumina ($Al_2O_3$) CVD coating layer that functions as a thermal shield. Steel grades (like AC820P) focus more on countering crater wear caused by chemical adhesion, which is less prevalent when cutting cast iron.
Q: Can I run this cast iron insert with coolant, or is dry cutting preferred?
A: For gray cast iron, dry cutting is generally preferred to prevent thermal shocking (rapid temperature cycles that lead to micro-cracking). However, if you choose to use coolant for dust reduction or dimensional control on ductile iron, ensure a high-volume, continuous flood configuration to keep temperatures completely stable.
Q: How does the -GU chipbreaker perform when cutting through cast iron surface crusts?
A: The -GU geometry features a reinforced edge land built precisely to support the corner during heavy scale impact. It effectively channels scale chips away from the main cutting edge, reducing micro-chipping risks.
💡 Technical Grade Comparison & Troubleshooting Guide
Workpiece Material Matrix (ISO Classifications): Primary application vectors line up within the ISO K10 to K30 parameters. Meticulously fine-tuned for high-density gray cast iron configurations (GG20, GG25, GG35), nodular/ductile cast iron (GGG40, GGG50, GGG70), and malleable casting variants prone to massive micro-abrasive edge degradation.
Machining Troubleshooting Guide: If sudden thermal cracking patterns materialize along the cutting edge during wet cutting cycles, consider transitioning completely to dry machining or increasing coolant volume. If catastrophic micro-chipping occurs along the $0.8\text{mm}$ nose radius due to severe casting scale, slightly reduce your feed rate ($f$) or select a larger cutting corner radius profile.
Authorized Reference Documentation & Endorsements: Dimensional configurations, clearance profiles, and international designation codes are fully aligned with standard global ISO/ANSI geometric frameworks. Operational baselines and material boundary envelopes are established using extensive research and empirical field data published by Sumitomo Electric Hardmetal Corporation.
