SUMITOMO VNMG160408N-GU AC820P Carbide Turning Insert for Steel Medium Roughing (VNMG 160408 / VNMG 332 Equivalent)
Price shown is a starting point. Contact us for a precise quote based on your requirements.
SUMITOMO VNMG160408N-GU AC820P CVD Coated Carbide Indexable Turning & Medium Roughing Insert
1. Product Overview
"Which high-durability indexable insert offers the best balance between crater wear resistance and edge toughness for general-purpose medium roughing to semi-finishing on carbon steels and alloy forgings?"

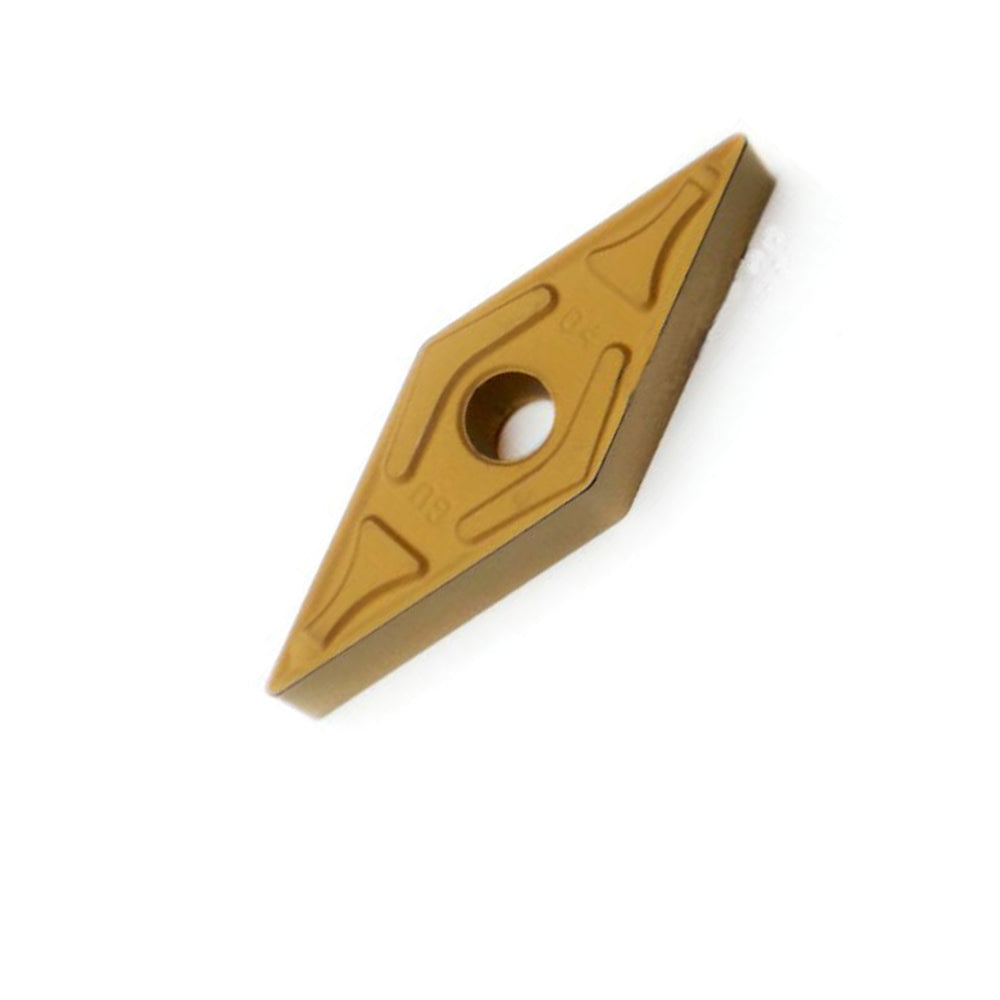

The SUMITOMO VNMG160408N-GU AC820P is a heavy-duty, 35° rhombic double-sided indexable turning insert explicitly engineered to maximize metal removal rates (MRR) in structural steel turning applications. Designed for the ISO P10–P30 material spectrum (covering carbon steels, low-alloy steels, die steels, and structural forgings), this insert leverages Sumitomo's next-generation AC820P Absotech Technology. By combining a highly oriented, thick $\alpha$-$\text{Al}_2\text{O}_3$ (Alumina) layer with a smooth TiCN crystal matrix coating, it forms a massive thermal barrier that completely suppresses crater wear and plastic deformation under extreme cutting temperatures. The universal -GU Type Chipbreaker features a reinforced cutting edge land paired with a wide, progressive chip pocket, engineered to provide smooth chip evacuation and high fracture resistance during varying depths of cut and elevated feed rates.
2. Product Key Features
- Absotech Thick CVD Wear Shield: Proprietary crystal-alignment coating technology drastically improves adhesion and flank resistance when running at high surface speeds ($v_c$).
- High-Rigidity Core Substrate: Formulated with a plastic-deformation resistant substrate that maintains strict dimensional tolerances even under high cutting pressures.
- Universal -GU General-Purpose Geometry: Engineered with a robust edge land that balances low cutting forces with edge security, making it highly effective for both stable and slightly interrupted operations.
- Double-Sided 4-Edge Configuration: Features four highly accurate indexable corners, reducing the cost-per-edge profile while maintaining exceptional pocket seat positioning repeatability.
3. Technical Specifications & Dimension Matrix
🔍 ISO / ANSI Industrial Nomenclature Decoding Matrix
| Dimension Parameter | Metric Specification (ISO) | Imperial Equivalent Benchmark (ANSI) |
|---|---|---|
| Product Designation Model | VNMG160408N-GU | VNMG 332-GU (VNMG332) |
| Inscribed Circle (IC) Diameter | 9.525 mm | 0.375 in (3/8") |
| Insert Thickness (s) | 4.76 mm | 0.1875 in (3/16") |
| Nose Corner Radius ($r_{\epsilon}$) | 0.8 mm | 0.0315 in (2/64") |
📊 Recommended Technical Cutting Parameters
| Workpiece Material Category | Cutting Speed ($v_c$) | Feed Rate per Revolution ($f$) / Depth ($a_p$) |
|---|---|---|
| Medium Carbon Steels (AISI 1045 / S45C Structural) | 180 - 350 m/min (590 - 1150 SFM) | 0.15 - 0.45 mm/rev (0.006 - 0.018 ipr) ap: 0.8 - 4.0 mm (0.031 - 0.157 in) |
| Alloy Steels & Forging Scales (AISI 4140 / SCM440) | 140 - 280 m/min (460 - 920 SFM) | 0.12 - 0.40 mm/rev (0.005 - 0.016 ipr) ap: 0.6 - 3.5 mm (0.024 - 0.138 in) |
This VNMG160408 turning core requires standard negative 35-degree pocket seats for rigid mechanical clamping.
Browse Matching MVJNR / MVQNR / MVUNR Toolholders →4. Product Application Scenarios
The AC820P CVD high-performance turning grade drives excellent productivity values across demanding roughing configurations:
5. Toolholder & Equipment Compatibility
Built to standard global indexable interface guidelines, this insert ensures straightforward mounting compatibility:
- Lathe Shank Assemblies: Universally compatible with all standard international MVJNR, MVJNL, MVQNR, and MVUNR toolholder blocks featuring standard negative seating pockets.
- CNC Production Systems: Ideally tuned for rigid turning centers and heavy-duty automated lathes (Mazak, Okuma, Doosan, Haas, Mori Seiki) capable of maintaining steady high-feed rates.
6. Industrial Grade Comparison Matrix
| Brand | Equivalent Grade Reference | Application Range | Coating Technology |
|---|---|---|---|
| SUMITOMO | AC820P (Target) | ISO P10 - P30 / High-Velocity General Steel Turning Matrix | Absotech thick Al2O3-TiCN Wear-Resistant CVD Layer |
| Sandvik Coromant | GC4425 / GC4325 | ISO P15 - P30 / Mainstream High-Speed Steel Turning | Inveio® Highly Oriented Alumina Coating |
| Kennametal | KCP25B / KCP10B | ISO P10 - P30 / Industrial Carbon & Alloy Steel Roughing | Multi-layered CVD wear armor with cobalt-enriched core |
| Iscar | IC8250 / IC8150 | ISO P15 - P35 General Purpose Medium Steel Turning | SUMO TEC high-smoothness multi-phase CVD structure |
7. Why Choose Us & Verified Global Performance Evaluations
Real feedback from high-production machine shops validating high metal removal rates and predictable edge wear:
"We run these VNMG 332-GU inserts in AC820P on our high-volume 1045 steel hub jobs. The -GU breaker handles depth transitions up to .150\" flawlessly without throwing long dangerous stringers. Tool life is remarkably consistent across cycles."
"Sehr gute Kolkverschleißfestigkeit bei Schnittgeschwindigkeiten über 250 m/min. Die Absotech-Beschichtung hält die Schneidkante stabil und verhindert plastische Deformationen bei zähem Vergütungsstahl."
"Il rompitruciolo -GU è fantastico per sgrossatura media. Geometria robusta che resiste bene anche in presenza di crosta di forgiatura. Prezzo/prestazioni imbattibile su grossi lotti."
"S45Cの荒〜中切削ラインで使用しています。他社製チップと比較してクレーター摩耗の進行が圧倒的に遅く、突然の欠損リスクが極めて低いです。-GUブレーカの刃先剛性には絶大な信頼を置いています。"
8. Technical Machining FAQ
Q: What makes the Sumitomo -GU chipbreaker better for general turning compared to the -SU variant?
A: The -GU chipbreaker is built with an amplified edge land designed to absorb impact spikes and continuous high thermal loading typical of medium roughing operations. The -SU variant features an ultra-sharp, highly positive profile engineered primarily to limit cutting forces on light finishing or slender workpiece setups.
Q: Can the VNMG160408N-GU be deployed effectively in light finishing applications?
A: While it can execute light cuts, dropping your depth of cut (DOC) below 0.5mm may limit chip control efficiency, as the -GU's broader chip land requires adequate tool engagement to properly curl and fracture the chip.
Q: Why is the AC820P grade ideal for high-speed continuous steel cutting?
A: The AC820P grade utilizes a thick, highly oriented $\alpha$-$\text{Al}_2\text{O}_3$ coating layer that provides excellent thermal shielding. This barrier prevents high-velocity heat buildup from penetrating the structural carbide core, dramatically reducing plastic deformation risks.
💡 Technical Grade Comparison & Troubleshooting Guide
Workpiece Material Matrix (ISO Classifications): Core application parameters target the ISO P10 to P30 bandwidth. Extensively balanced for carbon steels (S45C, 1020, 1045 variants), low-alloy structural steel elements (4140, 4340, SCM440 blocks), and tough hot-rolled steel plates with irregular surface scale profiles.
Machining Troubleshooting Guide: If crater wear develops rapidly directly behind the cutting corner, decrease your surface speed ($v_c$) or check for consistent flood coolant placement. If unexpected chip fracturing or corner chipping occurs on the $0.8\text{mm}$ nose profile, audit for structural part rigidity or reduce the feed rate ($f$) through the entry zone.
Authorized Reference Documentation & Endorsements: Dimension metrics, relief configurations, and geometric classification codes comply fully with standard ISO/ANSI tooling documentation frameworks. Performance limits and cutting boundaries are cross-referenced directly with empirical field testing criteria published by Sumitomo Electric Hardmetal Engineering Divisions.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
