WALTER ADMT160608L-F56 WKP35S Milling Insert (10 pcs)
Price shown is a starting point. Contact us for a precise quote based on your requirements.
WALTER ADMT160608L-F56 WKP35S Milling Insert (10pcs)

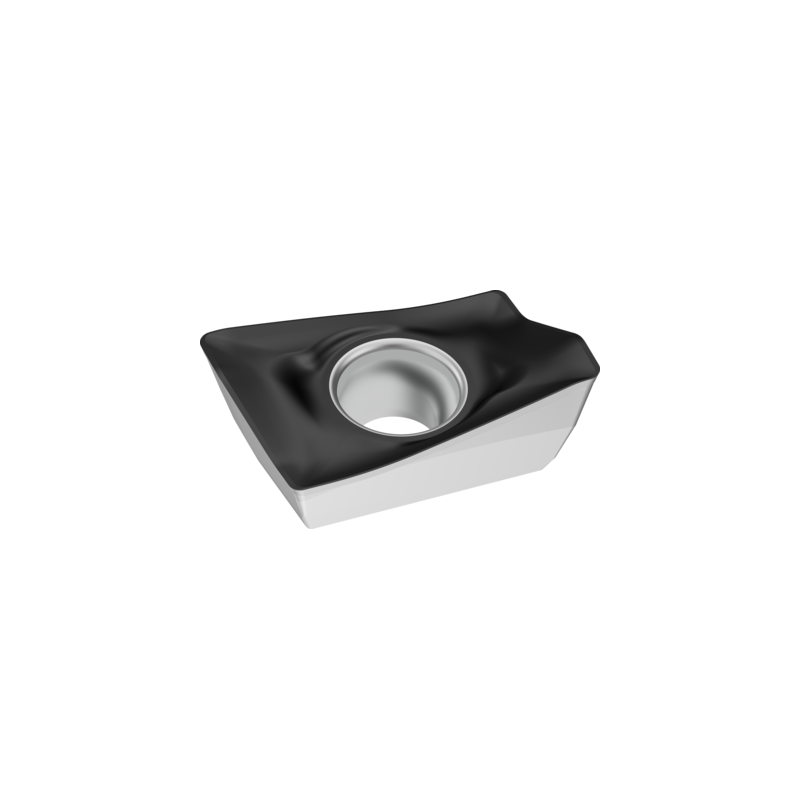

The WALTER ADMT160608L-F56 WKP35S is a high-performance left-hand carbide milling insert engineered for steel (P) and stainless steel (M) machining. Featuring the F56 chip-breaker and the highly reliable WKP35S Tiger·tec® grade, this insert provides toughness, heat resistance, and long tool life in medium to heavy milling applications.
Product Features
- High-performance WKP35S grade for P and M material groups.
- Left-hand cutting geometry for specific milling strategies.
- F56 chip-breaker ensures excellent chip flow and stable cutting.
- CVD multi-layer coating for superior wear resistance.
- Ideal for shoulder milling, slotting, and high-feed operations.
- Suitable for CNC machining centers and milling machines.
- Packaged in a box of 10 inserts.
Technical Specifications
| Insert Type | ADMT |
| Size | 160608 |
| Hand | Left-hand (L) |
| Chip Breaker | F56 |
| Grade | WKP35S |
| Material Class | Steel (P), Stainless Steel (M) |
| Coating | CVD multilayer coating |
| Cutting Direction | Left-hand |
| Packaging | 10 inserts per box |
Recommended Toolholders
- Walter F4045 Porcupine Milling Cutter
- Walter F4047 High-Feed Milling Cutter
- Walter F2334 Shoulder Milling Cutter
- ADMT-compatible 1606 series cutter bodies
Applications
Designed for use in steel and stainless steel machining, the ADMT160608L-F56 insert performs exceptionally well in:
- General milling
- Shoulder milling
- Slot milling
- High-feed milling operations
Why Choose WALTER Inserts?
Walter delivers world-class innovation, precision, and reliability. The WKP35S grade is known for its stability and extended tool life under tough machining conditions, making it a top choice for industrial milling applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
