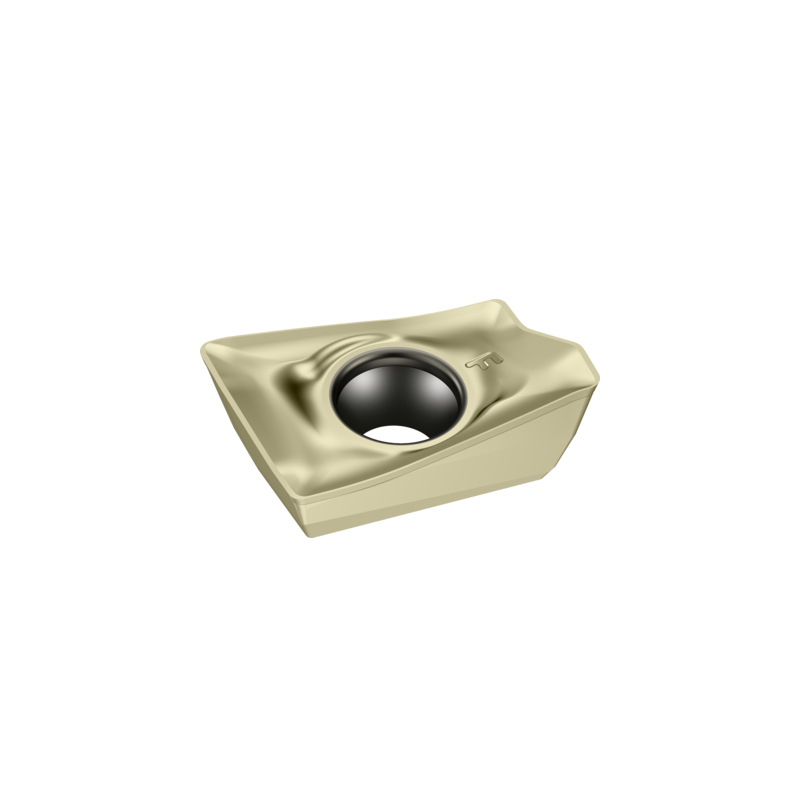

WALTER ADMT160608L-F56 WSP45G Milling Insert (10 pcs)
Price shown is a starting point. Contact us for a precise quote based on your requirements.
WALTER ADMT160608L-F56 WSP45G Milling Insert (10 pcs)
The WALTER ADMT160608L-F56 WSP45G is a premium parallelogram (ADMT) milling insert designed for demanding applications. Coated with Tiger·tec® Gold, it delivers outstanding wear resistance, heat protection, and durability. The insert is optimized for ISO P, M, and S materials, making it a versatile choice for steel, stainless steel, and high-temperature alloys.
Grade & Coating: WSP45G Technology
- **PVD multi-layer coating**: TiAlN / Al₂O₃ / ZrN for excellent thermal and wear resistance.
- **Heat protection**: Al₂O₃ crystallized layer shields the TiAlN under-layer during high-temperature cutting.
- **Wear visibility**: Gold-colored ZrN top layer helps you easily spot wear and fully use each edge.
- **Material versatility**: Suitable for ISO P (steel), M (stainless), and S (superalloys) applications.
Technical Data
| Parameter | Specification |
|---|---|
| Insert Style | ADMT (parallelogram) |
| Size Code | 160608 |
| Chip Breaker | F56 (universal) |
| Grade | WSP45G / Tiger·tec® Gold |
| Cutting Hand | Left (L) |
| Corner Radius | 0.8 mm |
| Thickness | ~6.15 mm |
| Rake / Relief Angle | Positive, 16° chip-angle, 15° clearance |
| Edge Length / Width | 17.5 mm edge, 10.8 mm width |
| Number of Cutting Edges | 2 per insert |
| Package | 10 inserts / box |
Recommended Applications
Ideal for medium-duty milling in steel, stainless steel, and high-temperature alloys. Use it for shoulder milling, slotting, face milling and general milling tasks, especially in production environments that demand both performance and reliability.
Compatible Toolholders
- Walter Xtra·tec® shoulder milling cutters
- High-feed cutter bodies that support ADMT inserts
- Parallelogram-style milling cutter systems
Why Choose This Insert
- Long tool life due to thermal protection from Al₂O₃ coating
- Easy wear detection thanks to gold ZrN top layer
- Universal material capability reduces the need for multiple grades
- Stable cutting performance under moderate to high speeds
- Economical: 2 edges × 10 inserts per box
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
