BEYOND WC25-4D-SD24.5-WC04 U-Drill | 24.5mm Indexable Insert Drill (4D Depth)
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND WC25-4D-SD24.5-WC04
Industrial 4D Indexable U-Drill | 24.5mm Precision CNC Machining
High-Efficiency 24.5mm Indexable Drilling

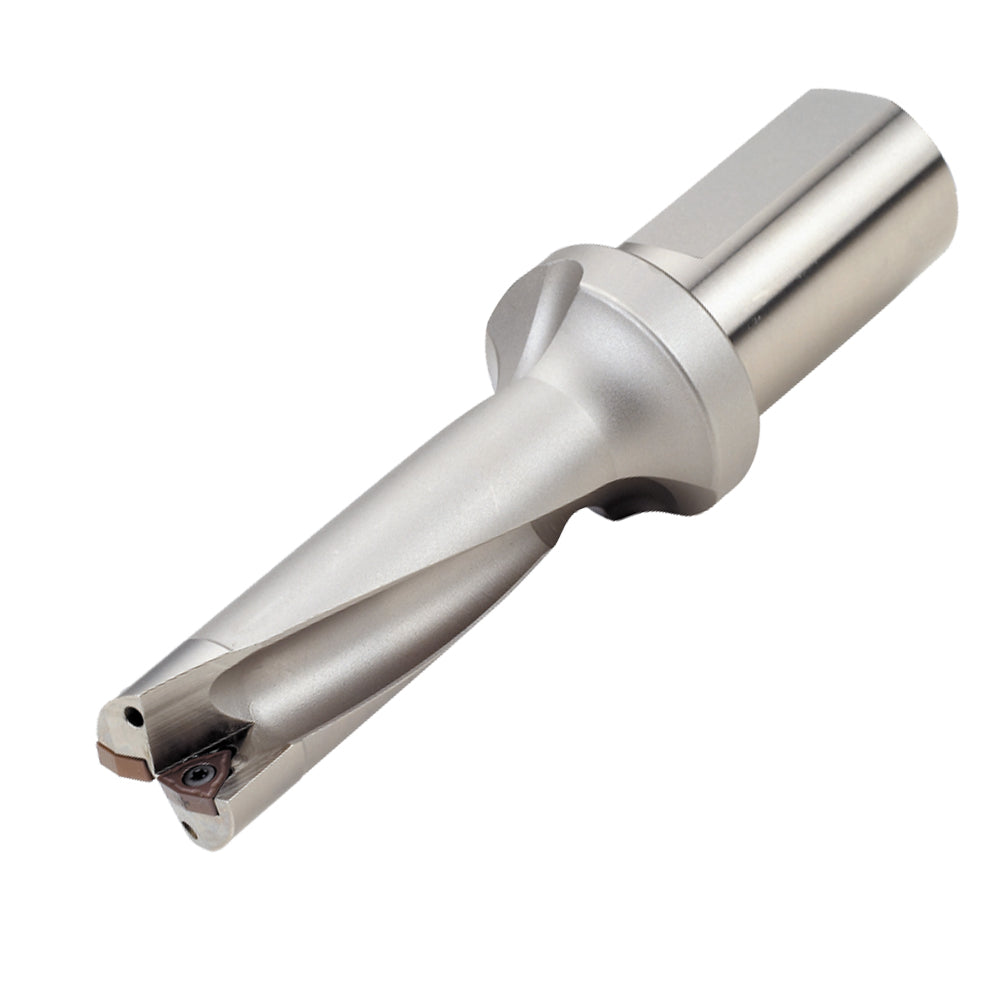

The BEYOND WC25-4D-SD24.5-WC04 is a high-rigidity indexable insert drill engineered for rapid metal removal. Featuring a 24.5mm cutting diameter and a 4D depth-to-diameter ratio, this tool is the definitive choice for high-speed internal cooling drilling. It is optimized for heavy-duty CNC machining in carbon steel, alloy steel, and stainless steel.
Model Code Specification
Technical Data & Metric/Imperial Comparison
| Feature | Metric Model (mm) | Imperial Equivalent (Inch) |
|---|---|---|
| Cutting Diameter (SD) | 24.5 mm | 0.9645" |
| Shank Diameter | 25.0 mm | 0.984" |
| Max Drilling Depth (4D) | 98.0 mm | 3.858" |
Recommended Cutting Parameters
Optimize your CNC holemaking with these settings for WC series rapid drills:
- Cutting Speed (Vc): 120 - 200 m/min (Material dependent).
- Feed Rate (f): 0.05 - 0.15 mm/rev.
- Coolant: High-pressure internal cooling is mandatory for effective chip evacuation.
Premium Material & Optimized Spiral Flute
Constructed from high-performance alloy steel with specialized anti-vibration quenching, this WC04 insert holder ensures maximum rigidity. The wide spiral flute geometry is specifically engineered for "forced" chip removal, preventing chip-packing—the primary cause of tool failure in 24.5mm deep hole drilling. The nickel-plated body minimizes friction and prevents chip welding during high-speed operations.
WC Series U-Drill: Advantages & Considerations
- Uses WCMX / WCMT inserts with 4 cutting edges (Cost-effective).
- Stable performance on uneven or curved entry surfaces.
- Fast chip breaking on low-carbon and alloy steels.
- Requires higher spindle torque.
- Surface finish may require secondary finishing for high-precision bores.
Verified Customer Reviews
"Excellent rigidity for 24.5mm holes. The 4D length holds tolerance perfectly."
- Marcus G., Germany ⭐⭐⭐⭐⭐
"Great value. Swapped our name-brand drills for BEYOND. No difference in life."
- Kenji S., Japan ⭐⭐⭐⭐⭐
"Fast shipping to the US. The internal coolant makes a massive difference."
- Robert H., USA ⭐⭐⭐⭐⭐
"Perfect fit for my CNC lathe. Using WCMX04 inserts and it cuts like butter."
- Luca M., Italy ⭐⭐⭐⭐⭐
Questions & Answers
Q: Does this include the inserts?
A: No, this is the drill body only. You will need WC04 inserts.
Q: Can I use this on a manual drill press?
A: No, U-drills require high torque and precision coolant pressure found on CNC machines.
Q: What is the maximum drilling depth?
A: This 4D model can drill up to 98mm deep.
Pro-Tip: Choosing Drill Depth (2D to 5D)
- 2D/3D: Maximum rigidity; best for shallow holes and high-feed roughing.
- 4D (Current Model): The balanced universal standard for industrial deep-hole machining.
- 5D: Specialized deep-hole drill bit. Requires extreme coolant pressure.
Technical FAQ & Buying Guide
