BEYOND WC32-4D-SD37-WC06 U-Drill | 37mm Indexable Insert Drill (4D Depth)
Price shown is a starting point. Contact us for a precise quote based on your requirements.

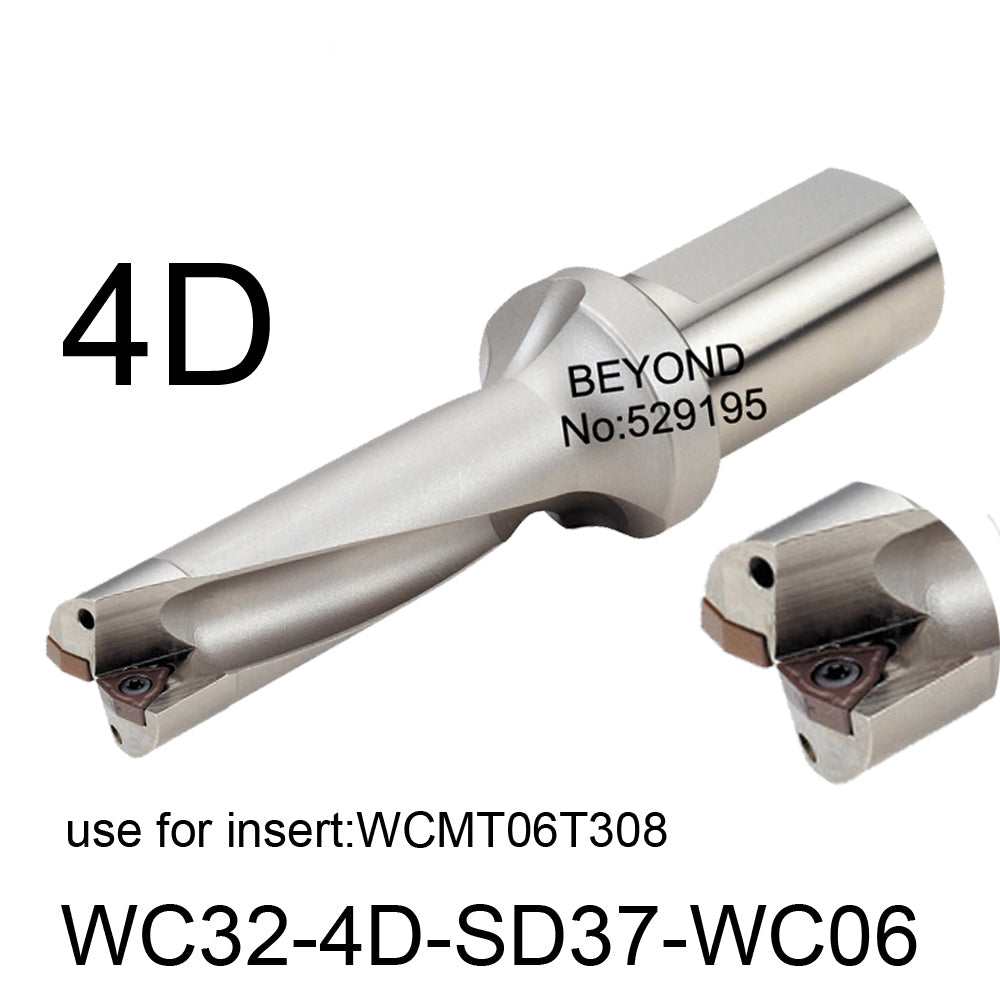

BEYOND WC32-4D-SD37-WC06
Precision 4D Indexable U-Drill | 37mm High-Speed CNC Tooling
Industrial 37mm Indexable Drilling Solution
The BEYOND WC32-4D-SD37-WC06 is a high-rigidity indexable insert drill engineered for heavy-duty metal removal. Featuring a 37mm cutting diameter and a 4D depth-to-diameter ratio, this tool is optimized for high-speed internal cooling drilling. It provides exceptional stability and superior chip evacuation in carbon steel, alloy steel, and stainless steel applications during large hole CNC machining.
Model Code Decoded
Technical Data & Metric/Imperial Comparison
| Feature | Metric Model | Imperial Equivalent |
|---|---|---|
| Cutting Diameter (SD) | 37.0 mm | 1.457" |
| Shank Diameter | 32.0 mm | 1.260" |
| Drilling Depth (4D) | 148.0 mm | 5.827" |
Recommended Cutting Parameters
Maximize your WC06 insert holder performance with these settings:
- Cutting Speed (Vc): 110 - 180 m/min (Material dependent).
- Feed Rate (f): 0.06 - 0.14 mm/rev.
- Coolant Strategy: High-pressure internal coolant is mandatory for 4D depth to flush chips effectively and protect the drill body.
Material Excellence & Spiral Flute Design
Constructed from high-strength alloy steel with specialized anti-vibration quenching, this 37mm indexable drill bit offers extreme durability. The wide spiral flute geometry is specifically engineered for "forced" chip removal, preventing chip-packing—the primary cause of tool failure in large diameter drilling. The nickel-plated surface provides excellent corrosion resistance and enhanced tool life.
WC Series U-Drill: Pros & Cons
- Uses WCMX / WCMT inserts with 4 cutting edges (Cost-effective).
- Better stability on uneven or curved entry surfaces compared to SP drills.
- Superior chip breaking performance on carbon and alloy steels.
- Higher torque requirements than SP series drills.
- Requires high-power CNC spindles for 37mm diameters.
Pro-Tip: Choosing Drill Depth (2D to 5D)
The L/D ratio determines stability and application range in CNC metalworking:
- 2D/3D: Maximum rigidity; ideal for shallow holes and high feed rates.
- 4D (This Model): The industrial standard for deep-hole drilling; provides reach without sacrificing stability.
- 5D: Extreme depth; requires very high coolant pressure and precise alignment to prevent tool breakage.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
