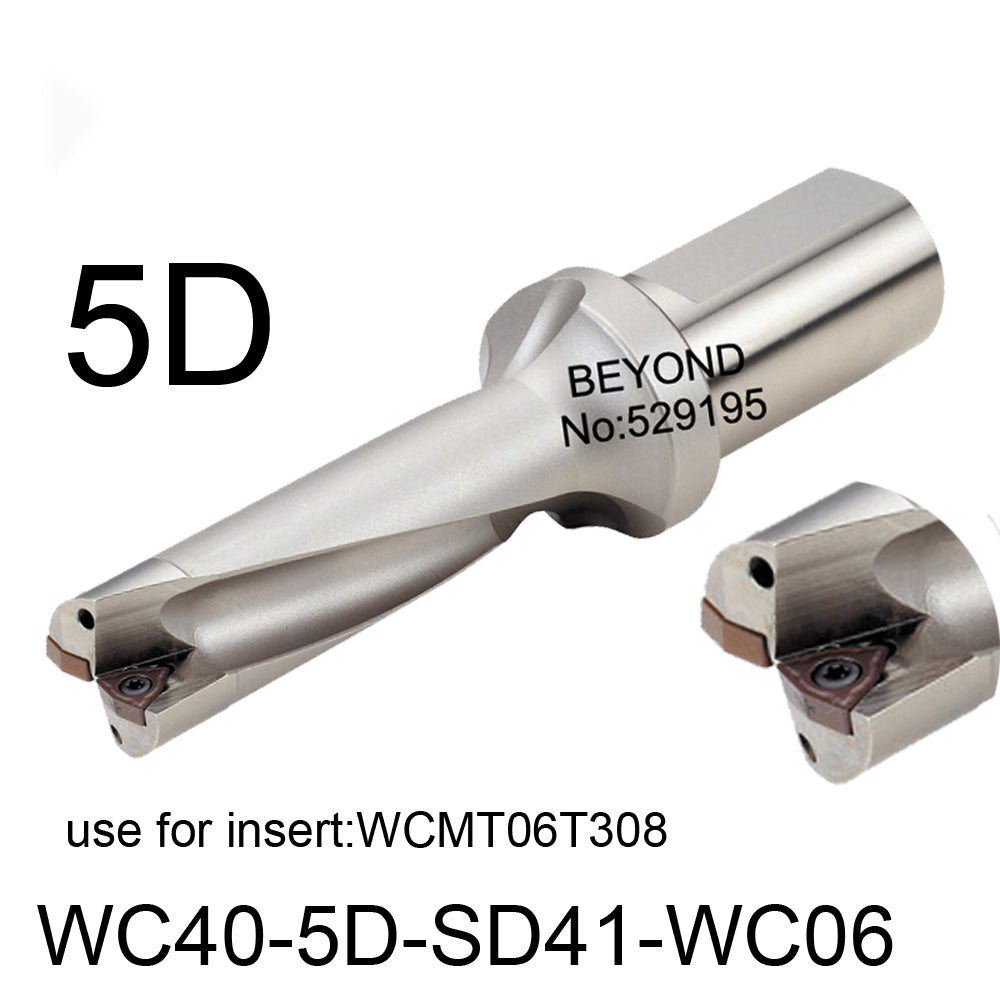

BEYOND WC40-5D-SD41-WC06
Professional 5D Indexable U-Drill | Precision Deep Hole Tooling
High-Efficiency Deep Hole Drilling
The BEYOND WC40-5D-SD41-WC06 is a high-rigidity indexable insert drill engineered for large-scale metal removal. Featuring a 41mm cutting diameter and a 5D depth ratio, this tool is the professional choice for high-speed CNC drilling. Designed for maximum chip evacuation, it excels in processing steel, alloys, and stainless steel.
Model Code Breakdown
Technical Data & Conversion
| Feature | Metric (mm) | Imperial (Inch) |
|---|---|---|
| Cutting Diameter (SD) | 41.0 mm | 1.614" |
| Shank Diameter | 40.0 mm | 1.574" |
| Drilling Depth | 205.0 mm | 8.070" |
Recommended Cutting Parameters
Optimize your CNC machining with these reference values for the 41mm U-Drill:
- Cutting Speed (Vc): 110 - 180 m/min (Material dependent).
- Feed Rate (f): 0.06 - 0.12 mm/rev.
- Internal Coolant: High-pressure internal cooling is mandatory for 5D depth to clear chips effectively and protect the WC06 inserts.
WC Type U-Drill: Advantages & Considerations
- Uses WCMX / WCMT inserts with 3 cutting edges (Economical).
- Superior chip breaking on various materials.
- Excellent stability on uneven entry surfaces.
- Requires higher torque compared to SP series.
- Must ensure vertical alignment for 5D deep holes.
Material & Flute Geometry
Crafted from high-strength alloy steel with specialized anti-vibration heat treatment. The spiral flute geometry is wide-designed for "forced" chip evacuation, preventing chip-packing during deep hole drilling. This U-drill holder is nickel-plated for superior corrosion resistance and surface hardness.
Pro-Tip: Choosing Drill Depth (2D to 5D)
Selection depends on your specific CNC drilling requirements:
- 2D/3D: Best for high rigidity and speed in shallow holes.
- 4D: The universal standard for most manufacturing tasks.
- 5D (This Model): Specialized deep-hole drill. It requires high-pressure internal coolant and precise spindle alignment to ensure straightness and tool longevity.
Need Help With BEYOND Inserts?
Looking for a BEYOND equivalent, alternative grade, or sample catalog? Our CNC specialists have helped 50+ manufacturers in aerospace, automotive, and medical machining source the right tooling at 30–50% lower cost than OEM prices.
This BEYOND insert is in stock. 24-hour quote response. ISO 9001 certified. Ships from Hangzhou in 3–7 days.
